Mitigating Membrane Fouling: The Role of Atomic Force Microscopy (AFM) in Water Treatment
In the field of water treatment and desalination, membrane-based technologies have emerged as crucial tools for ensuring access to clean and safe drinking water. However, one persistent challenge that hinders the efficiency and longevity of membrane filtration systems is membrane fouling. Membrane fouling occurs when unwanted substances deposit on the membrane surface, leading to reduced filtration capacity, increased energy consumption, and, ultimately, system failure.
So, membrane fouling remains a significant challenge that compromises their effectiveness and longevity. To better understand and mitigate this issue, researchers have turned to cutting-edge techniques like Atomic Force Microscopy (AFM) to provide insights into membrane fouling at the nanoscale.
Understanding Membrane Fouling

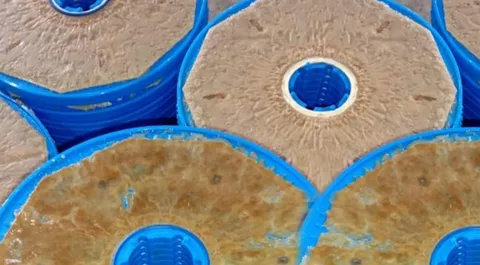

Membrane fouling occurs when unwanted substances accumulate on the surface or within the pores of a membrane, obstructing the flow of liquids or gases. This accumulation can comprise organic matter, inorganic particles, or microorganisms. The consequences of fouling are severe, leading to decreased filtration efficiency, increased energy consumption, and ultimately, the need for frequent membrane replacement or cleaning. To combat this issue, researchers and engineers must gain a deep understanding of the fouling mechanisms and potential remedies. ( Click here to read Do you have membrane fouling? understand this problem)
Classification of membrane fouling
Membrane fouling, a prevalent challenge in various filtration and separation processes, can be classified into several distinct categories based on the nature of the foulants and their interaction with the membrane surface. These classifications include organic fouling, inorganic fouling, colloidal fouling, and biofouling.
Organic fouling results from the accumulation of organic substances such as oils, proteins, and humic acids on the membrane, which can lead to pore blockage and decreased permeability.
Inorganic fouling is caused by the deposition of inorganic salts or minerals like calcium sulfate or silica, which can form scale and reduce membrane efficiency.
Colloidal fouling is associated with the buildup of fine particles suspended in the feed water, clogging membrane pores.
Biofouling is the colonization of microorganisms like bacteria and algae on the membrane surface, leading to the formation of biofilms that can impair membrane performance.
Membrane fouling early signs
Membrane fouling can have several early signs, including:
Reduced water flow: As fouling progresses, the flow rate of treated water or permeate decreases. This reduction in flow can be observed through flow meters or by measuring the time it takes to collect a certain volume of permeate. A sudden drop in flow rate is a strong early warning sign.
Increased pressure: One of the most common early signs of membrane fouling is a change in transmembrane pressure (TMP). TMP is the pressure difference across the membrane, and as fouling occurs, it tends to increase due to the obstruction of membrane pores by foulants.
Changes in water quality: Membrane fouling can result in changes in the quality of the water being produced, such as increased turbidity or suspended solids.
Increased energy consumption: Increased energy consumption is a consequence of membrane fouling as the system needs to work harder to maintain the desired flow rate and pressure. Monitoring the energy consumption of the system can help identify fouling-related issues.
Changes in membrane color or appearance: If the membrane becomes discolored or appears dirty, it could be a sign of fouling.
Atomic Force Microscopy analysis of membrane fouling

Atomic force microscopy is a type of scanning probe microscopy that uses a probe or tip connected to a cantilever to scan over the surfaces of samples while applying a small repulsive force between the tip and the sample.
AFM is a high-resolution technique that may be utilized on a wide range of samples such as thick film coatings, glass, composites, biological and synthetic membranes, microorganisms and biomaterials. This method can provide data about a sample, such as physical topography and measurements of physical, chemical, or magnetic properties.
The membranes were examined using an AFM colloid probe technique to determine mechanical properties as well as adhesion forces and work of adhesion at membrane surfaces. This vital tool can be used to optimize separation processes by gaining a better understanding of fouling mechanisms.
AFM can produce high-resolution images of the membrane surface in specific environments, as well as quantify the forces acting on the membrane surface that cause membrane fouling. When a probe is attached to the AFM cantilever and makes contact with the sample before retracting, these forces are measured as a function of distance.
Hook’s law can be used to monitor and convert the cantilever’s deflection into force values.
The importance of obtaining force measurement data, such as a force-distance curve, using AFM can provide critical information on interaction forces as well as local material properties such as elasticity, adhesion, surface charge densities, and hardness.
This can indicate the membrane’s resistance to chemical and physical processes and the type of membrane with the highest efficacy.
Harder polymer membranes can have less wear during operation and cleaning cycles than softer membranes.
Atomic force microscopy is a type of scanning probe microscopy that uses a probe or tip connected to a cantilever to scan over the surfaces of samples while applying a small repulsive force between the tip and the sample.
AFM is a high-resolution technique that can be used on a variety of sample types, including thick film coatings, glass, composites, biological and synthetic membranes, microorganisms, and biomaterials.
Applications of AFM in Analyzing Membrane Fouling
Fouling Layer Characterization: AFM enables researchers to examine the structure and composition of fouling layers in detail. This information is essential for identifying the nature of foulants and designing effective strategies for fouling prevention.
Fouling Mechanism Study: AFM can be used to investigate the interactions between foulants and membrane surfaces. By studying adhesion forces and binding events, researchers can gain insights into the fouling mechanisms, whether they are dominated by physical adsorption, chemical reactions, or biofilm formation.
Fouling Mitigation: AFM data can guide the development of antifouling strategies. By understanding the nature of foulants and their interactions with the membrane surface, scientists can design surface modifications or coatings that resist fouling more effectively.
Potential for Enhancing Water Treatment Technologies

The utilization of AFM in analyzing membrane fouling has the potential to enhance water treatment technologies in several ways:
Improved Membrane Design
By understanding the forces and interactions involved in fouling, researchers can design membranes with tailored surface properties. These properties can include superhydrophilicity, charge modification, and the incorporation of antifouling coatings. This proactive approach can significantly reduce fouling rates and extend the lifespan of membranes.
Enhanced Fouling Mitigation Strategies
The knowledge obtained from AFM analysis can be used to optimize fouling mitigation strategies. Cleaning protocols can be fine-tuned, and antifouling agents can be chosen based on the specific nature of foulants. This leads to more efficient and cost-effective water treatment processes.
Reduced Energy Consumption
Efficient water treatment processes are not only cost-effective but also environmentally friendly. By mitigating fouling, AFM-based strategies can help reduce energy consumption, making water treatment more sustainable.
Increased Water Accessibility
The improved performance and reduced operational costs resulting from AFM-guided analyses of membrane fouling can contribute to greater accessibility to clean and safe water, especially in regions with limited resources.
( Click here to read Membrane technology plays a crucial role in resolving global water scarcity )
Future Directions and Challenges
While AFM has proven to be a powerful tool for membrane fouling analysis, there are still challenges and areas for future research.
Quantitative Analysis
One of the challenges is the need for more quantitative data in membrane fouling studies. Researchers are working to develop techniques that can provide quantitative measurements of fouling thickness, adhesion forces, and fouling rates using AFM.
Complex Fluids
In some applications, such as food processing, the presence of complex fluids can make fouling analysis more challenging. Researchers are exploring methods to adapt AFM to handle complex fluid environments, which can provide a more accurate representation of fouling in these systems.
Multimodal Techniques
To gain a more comprehensive understanding of fouling, the integration of AFM with other analytical techniques is crucial. Combining AFM with spectroscopic or chemical analysis methods can provide a more complete characterization of fouling layers.
In the future, researchers aim to overcome these challenges and further advance AFM-based studies of membrane fouling. This includes the development of automated AFM systems that can perform continuous monitoring during filtration processes, enabling better real-time control of fouling events. Additionally, the integration of AFM with other analytical techniques, such as spectroscopy and mass spectrometry, may provide a more comprehensive understanding of foulant-membrane interactions.
