The drinking bird toy, often called the sipping bird or insatiable birdie, has intrigued many for years. Researchers from Hong Kong and Guangzhou, China, have creatively repurposed this playful device into a generator that harnesses water evaporation to produce electricity. The bird behind glass of water innovation not only transforms a nostalgic toy into a power source for small electronics but also represents a significant step forward in renewable energy solutions.

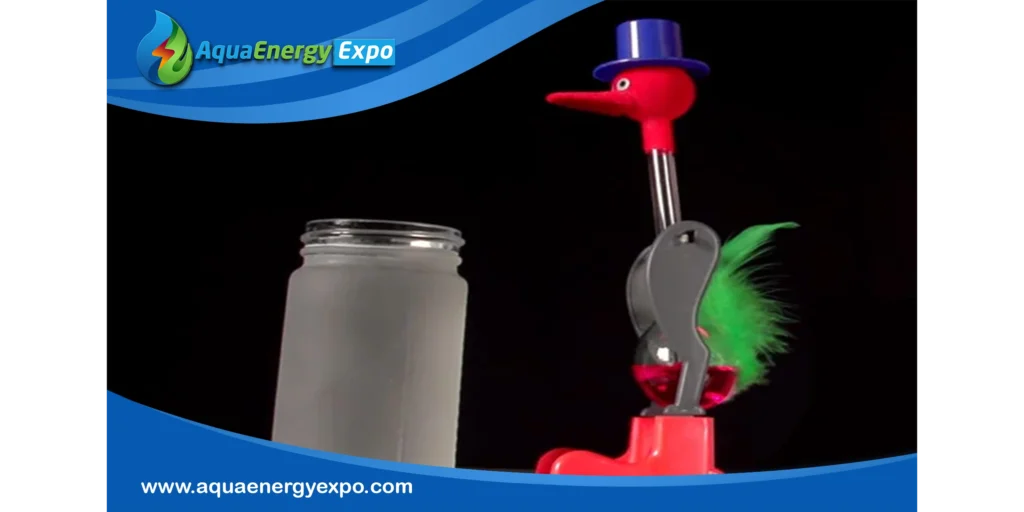

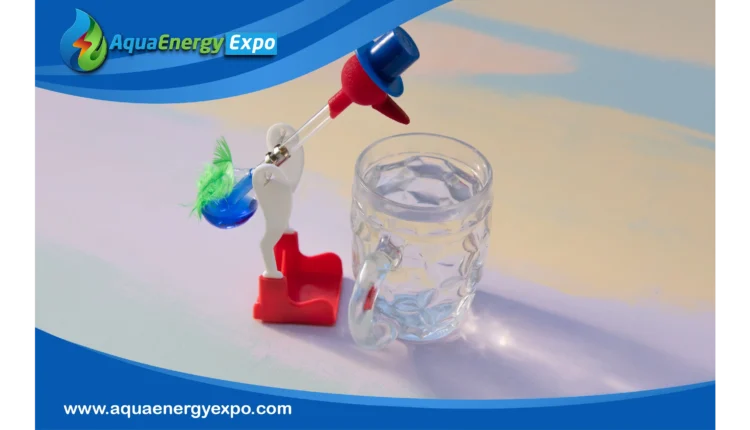

What Is a Drinking Bird?

The drinking bird functions as a toy heat engine that mimics a bird drinking from water. Known by various names, its earliest forms emerged in China between 1910 and 1930. All versions rely on the principles of a heat engine, where evaporation from the bird’s beak lowers its head’s temperature, creating a pressure differential that allows it to dip. The bird continues to bob as long as its beak remains damp, even if temporarily removed from water.

– Is the Drinking Bird a Perpetual Motion Machine?

The drinking bird is sometimes mistakenly labeled as a perpetual motion machine. However, such machines violate thermodynamic laws. The drinking bird works only while water evaporates from its beak, generating energy changes within the system.

What Is Inside a Drinking Bird?

The drinking bird comprises two glass bulbs (head and body) connected by a glass tube (neck). The tube extends close to the bottom bulb but does not reach the top bulb. Typically filled with dichloromethane (methylene chloride), older versions may contain trichlorofluoromethane, which is now considered harmful.

During production, air is evacuated to fill the body with vapor from the fluid. The upper bulb features a felt-covered beak, essential for its operation. Decorative elements, such as paper eyes and feathers, enhance its appearance, while the entire device pivots on an adjustable crosspiece.

Educational Value

The drinking bird serves as an excellent educational tool, illustrating key principles in chemistry and physics, including:

– Boiling and Condensation: Dichloromethane’s low boiling point (39.6 °C).

– Combined Gas Law: The relationship between pressure and temperature of a gas at constant volume.

– Ideal Gas Law: The correlation between gas particles and pressure.

– Torque and Center of Mass: Fundamental mechanics concepts.

– Capillary Action: Water wicking into the felt.

– Wet-Bulb Temperature: Temperature differences depending on humidity.

– Maxwell-Boltzmann Distribution: Molecular energy levels at a given temperature.

– Heat of Vaporization/Condensation: Heat changes during state transitions.

– Functioning of a Heat Engine: Overall operation of the drinking bird.

Safety Considerations

While the drinking bird is generally safe, the fluid inside is not non-toxic. Modern versions use dichloromethane, which is not flammable, but older versions contained flammable liquids. If the bird breaks, avoid contact with the liquid due to potential skin irritation and inhalation risks. Proper ventilation is recommended to disperse any vapor.

The Genesis of an Idea

Researchers were inspired by the drinking bird to explore converting evaporation energy into electricity. Hao Wu, a professor at South China University of Technology, expressed his excitement about the results, noting the potential to transform mechanical energy from evaporation into electricity.

The Drinking Bird Engine

By reengineering the drinking bird, researchers developed the “drinking bird triboelectric hydrovoltaic generator.” This device incorporates triboelectric nanogenerator modules on either side, capturing mechanical energy from the toy’s motion. It can generate over 100 volts from just 100 milliliters of water, outperforming other water-based electricity generation methods.

This generator can power small electronics like LCDs and temperature sensors. The team overcame friction challenges by integrating patterned fibers as charge transfer materials, enhancing efficiency.

Looking Ahead

The research team, led by Professor Zuankai Wang, aims to design a custom drinking bird engine that moves beyond commercial toys. Their goal is to optimize the system for better energy conversion from water evaporation.

Wang emphasizes the potential for practical applications, aiming to integrate this technology into everyday life. This research highlights the untapped potential of simple physical principles and sets a precedent for sustainable energy generation.

The Mechanics of the Drinking Bird

The drinking bird operates as a heat engine, converting temperature differences into pressure differentials to perform mechanical work. The operational cycle is as follows:

1.Water evaporates from the head’s felt.

2.Evaporation cools the glass head.

3.The temperature drop condenses some dichloromethane vapor.

4.This creates a pressure drop in the head.

5.Higher vapor pressure in the base pushes liquid up the neck.

6.The liquid rise tips the bird over.

7.When tipped, the neck tube rises above the liquid surface.

8.A warm vapor bubble rises, displacing liquid.

9.Liquid flows back to equalize pressure.

10.The weight of the liquid restores the bird to vertical.

The liquid in the bottom bulb is heated by ambient air, allowing the bird to function as long as the head remains wet. The energy source is the temperature gradient between the head and base, confirming that it is not a perpetual motion machine.

Physical and Chemical Principles

The drinking bird exemplifies several physical laws, making it a staple in education. Key principles include:

– Dichloromethane’s Low Boiling Point: Enables motion extraction from low temperatures.

– Combined Gas Law: Relates temperature and pressure in gases.

– Ideal Gas Law: Connects gas particles and pressure.

– Maxwell-Boltzmann Distribution: Shows molecular energy variations.

– Heat of Vaporization/Condensation: Describes heat changes during state transitions.

– Torque and Center of Mass: Important mechanics concepts.

– Capillary Action: Water’s movement into the felt.

– Wet-Bulb Temperature: Influenced by humidity.

The bird’s operation is also affected by relative humidity. Using a water-ethanol mixture can demonstrate varying evaporation rates. Analyzing wet and dry bulb temperature differences can yield expressions for maximum work from a specific water amount.

Alternative Design Innovations

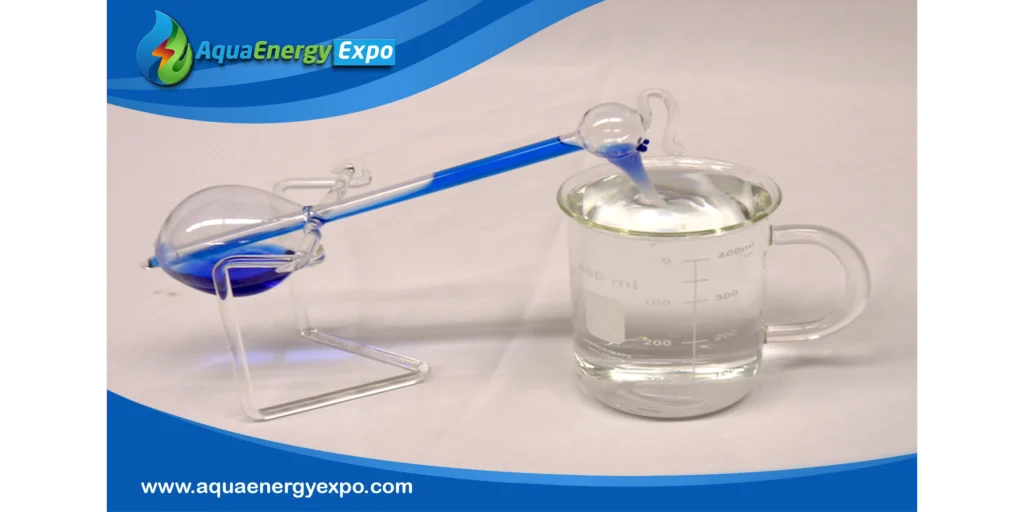

In 2003, Nadine Abraham and Peter Palffy-Muhoray developed an alternative mechanism that combines capillary action and evaporation without a volatile working fluid. Their design, published in 2004, operates without temperature differences, instead relying on gravitational potential and evaporation.

This alternative bird tips into a head-down position when dry and is placed next to a water source. Water is lifted into the beak via capillary action and carried to a sponge reservoir resembling wings. As the sponge absorbs water, the bird tips upward until evaporation restores balance, tipping it down again. The device operates slowly, with a cycle time of approximately 7 hours and 22 minutes.

Conclusion

The innovative application of the drinking bird toy as an energy source showcases the potential for reimagining simple mechanical principles for modern use. By converting a playful novelty into a functional energy generator, researchers have paved the way for new renewable energy solutions. This endeavor highlights the importance of innovation in addressing contemporary energy challenges and demonstrates the untapped potential of basic physical principles in creating sustainable technologies. As exploration of devices like the drinking bird continues, the future of renewable energy looks promising.
