From Bottleneck to Breakthrough: Rethinking Filter Media in Modern Water Infrastructure
In the face of growing challenges in the water sector from rising energy costs to fluctuating raw water quality performance optimization is no longer optional, but essential.
While most investments focus on major equipment, there is one element that often determines the real performance of a plant:
Filter media.
Not as a supporting component… but as a critical factor controlling the efficiency and stability of the entire system.
The Real Bottleneck Inside the Filter
In many water treatment plants, the same operational symptoms appear over time:
- Rapid increase in head loss
• Frequent backwashing cycles
• Reduced effective production capacity
• Fluctuating treated water quality
• Difficulty handling sudden changes in raw water quality
These challenges are not always related to system design…
but rather to the physical limitations of conventional filter media.
Filtralite®: Redefining the Role of Filter Media
What Filtralite offers is not just an alternative material—it is a complete re-engineering of the filtration process itself.

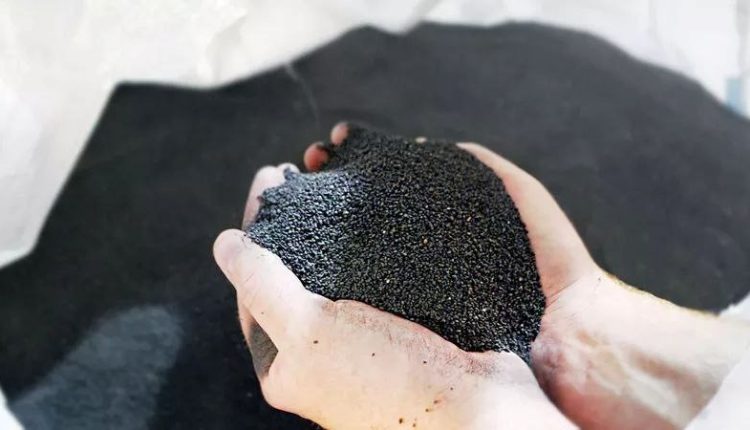

Thanks to its lightweight expanded clay structure with high internal porosity, Filtralite® enables different performance levels within water treatment systems through three main product families:
🔹 Filtralite® PURE
Designed for advanced drinking water filtration, with high efficiency in removing organic matter and improving final water quality.
🔹 Filtralite® CLEAN
Optimized for conventional filtration upgrades, improving turbidity removal and extending filter run times between backwashing cycles.
🔹 Filtralite® AIR
Specialized for biological filtration and aeration processes, supporting biological activity and enhancing treatment efficiency.
How Filtralite® Re-engineers Filtration Performance
🔹 True Deep Bed Filtration
Particles are captured throughout the full filter depth, not just at the surface.
🔹 Balanced Flow Distribution
Reduces channeling and ensures stable hydraulic performance.
🔹 Higher Dirt Holding Capacity
Extends operational cycles and reduces backwashing frequency.
🔹 Lower Head Loss
Directly improves energy efficiency and operational cost.

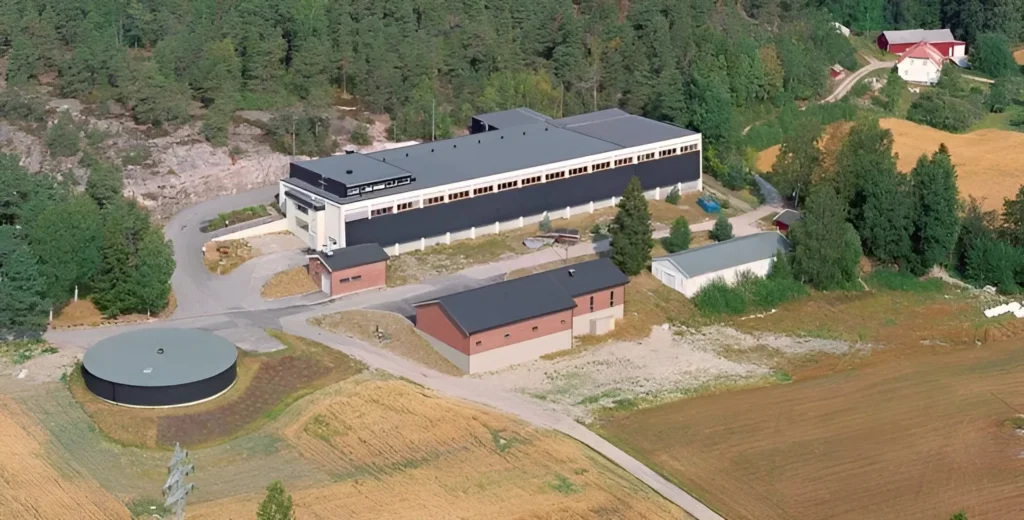

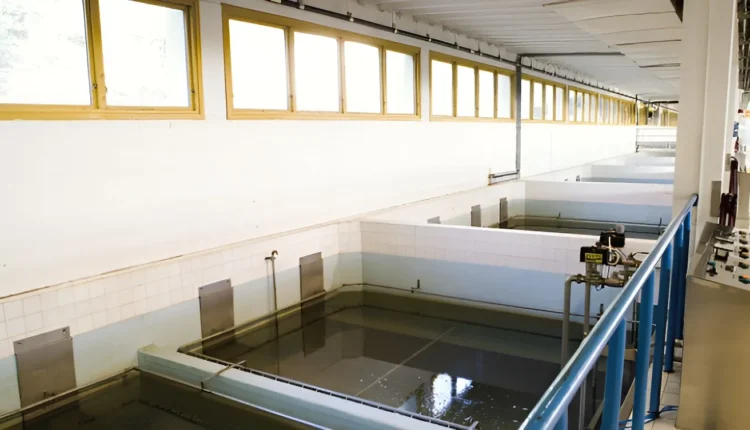

Case Study: Fredrikstad Drinking Water Treatment Plant – Norway
In the Fredrikstad Drinking Water Treatment Plant in Norway, the filtration system faced operational challenges caused by fluctuating raw water quality and the need for stable long-term performance.
🔹 Challenges Before Improvement
- Fluctuating raw water quality from Lake Isnesfjorden (connected to River Glomma)
• Turbidity levels reaching up to 10 NTU
• Color levels reaching up to 100 mg Pt/L during extreme periods
• Reduced efficiency with conventional sand/anthracite media
• High demand for stable operation and reduced backwashing frequency
🔹 Role of Filtralite® in the Solution
A trial was conducted by replacing part of the conventional filter media with Filtralite, initially installed above the existing sand layer in one filter and operated in parallel with the other filters.
This approach enabled:
- Improved deep filtration performance instead of surface-limited filtration
• Better resilience against raw water quality variations
• Enhanced flow distribution within the filter bed
• Increased system stability under variable conditions
🔹 Operational Results
- Longer filter run times compared to sand/anthracite filters
• Stable and consistent water quality performance
• Effluent turbidity reduced to 0.06 NTU
• Average filter effluent turbidity around 1.1 NTU
• Stable operation at a filtration velocity of 10 m/h
• Improved overall operational efficiency and system reliability
From Operational Improvement to Strategic Decision
What these results demonstrate is a fundamental shift in thinking:
Filter media is no longer a consumable component…
but a core engineering tool for system-wide performance optimization.
Why This Shift Matters Today?
In today’s operating environment, defined by:
- Rising energy costs
• Water quality variability
• Stricter regulatory requirements
• Pressure to maximize existing infrastructure
Improving filtration performance becomes one of the fastest and most impactful solutions.
Conclusion
The shift from “bottleneck” to “breakthrough” does not always require large infrastructure investments…
Sometimes it starts with rethinking a single core element that has been underestimated for years.
Filtralite® demonstrates that:
Filter media can be the difference between a plant that simply operates… and a plant that operates with stability, efficiency, and long-term reliability.
