Effective Gearbox Inspection Techniques for Wind Turbine Maintenance
Introduction
As the global shift towards renewable energy continues to gain momentum, wind power has emerged as a significant contributor to the clean energy mix.
With the increasing number of wind turbines, both onshore and offshore, the maintenance of these turbines and their critical components, such as gearboxes, has become crucial.
Gearbox failures can lead to extensive downtime and costly repairs, making regular inspections a vital part of wind turbine maintenance.
This article explores the importance of gearbox inspections in wind turbine maintenance and highlights the advantages of using advanced inspection techniques.
We will delve into the key inspection methods for wind turbine gearboxes, discuss best practices for implementing effective inspection programs, and provide insights into the future of gearbox inspection techniques.
The Importance of Gearbox Inspections in Wind Turbine Maintenance

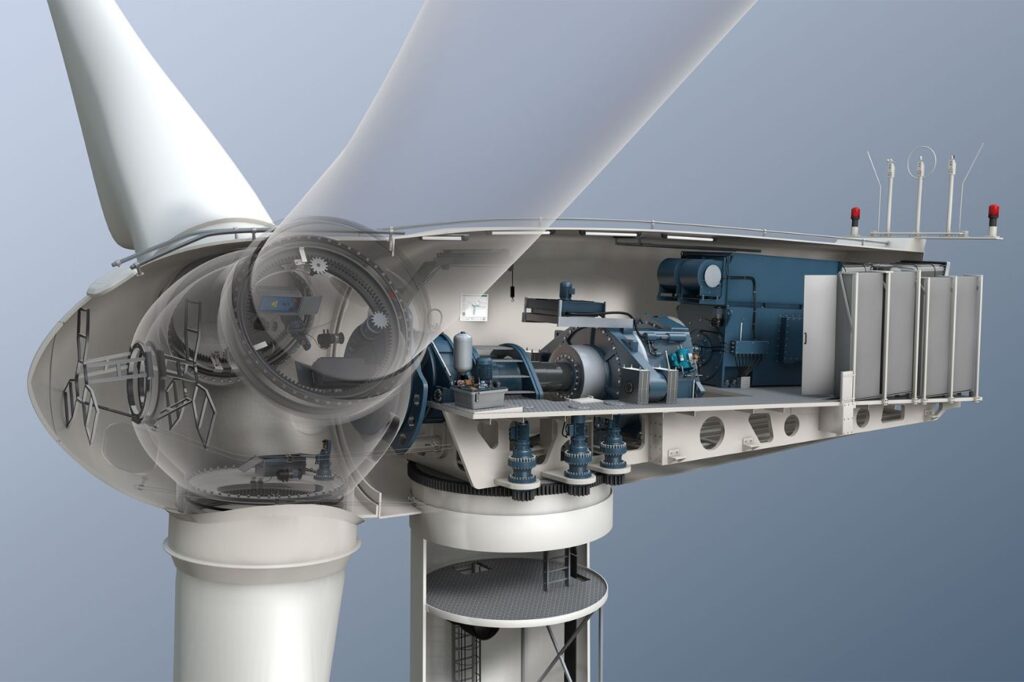

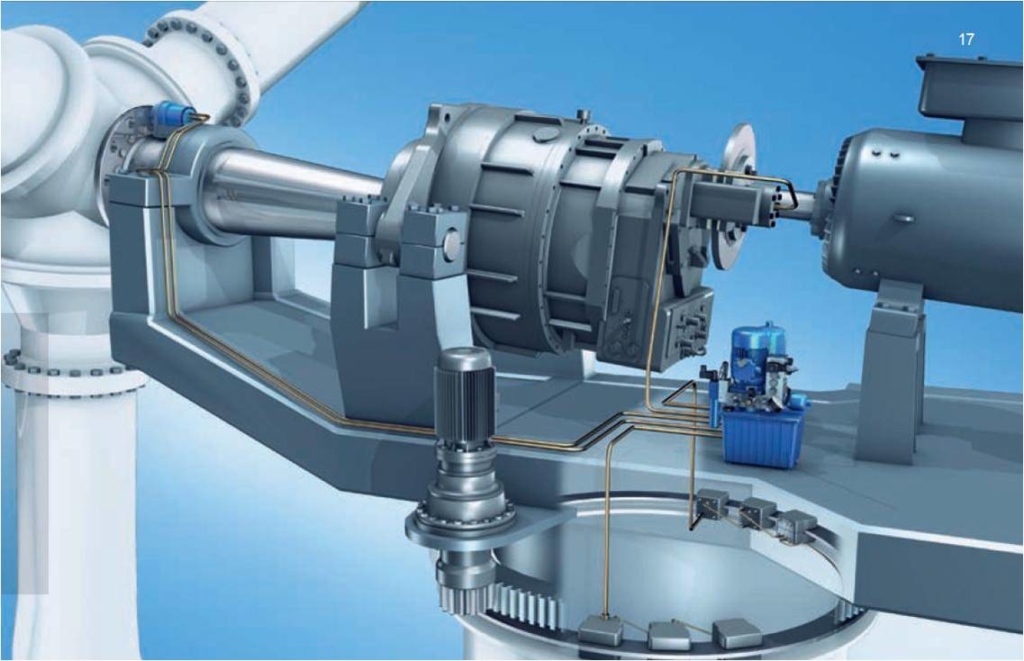

Wind turbine gearboxes play a critical role in converting the low-speed rotation of the blades into high-speed rotation to generate electricity. These gearboxes are subjected to significant stress and wear due to the constant exposure to wind and varying weather conditions.
Regular inspections of gearboxes are essential to identify potential defects, ensure optimal performance, and prevent catastrophic failures that can lead to costly repairs and downtime.
Gearbox failures, although relatively rare, can result in prolonged turbine downtime, lasting up to six months in some cases. This downtime can be financially significant, as a typical 2.4-MW wind turbine can generate around $1,000 worth of electricity per day. Additionally, gearbox failures can cause severe damage, such as fires due to overheating, rendering the turbine permanently out of service.
By conducting regular inspections, wind turbine operators can detect and address gearbox issues early on, minimizing downtime and preventing costly repairs.
Inspections can help identify defects such as wear, corrosion, fatigue, and fractures, allowing for timely maintenance and replacement of components. Implementing effective gearbox inspection programs is crucial to ensuring the reliability and longevity of wind turbines.
Advantages of Using Advanced Inspection Techniques

While supervisory control and data acquisition (SCADA) systems and condition monitoring systems (CMS) are widely used to monitor wind turbines, they have limitations when it comes to pinpointing the exact location and nature of gearbox defects.
Advanced inspection techniques, such as borescope inspections and non-destructive testing (NDT), offer several advantages in detecting and diagnosing gearbox issues accurately.
Borescope inspections involve using a flexible optical instrument to visually inspect the internal components of the gearbox. This technique allows for detailed visual examination of hard-to-reach areas, such as planetary gear stages and bearings.
Borescope inspections can help identify early signs of deterioration, defects, and abnormalities, enabling proactive maintenance and preventing costly failures.
To reveal hidden or subsurface defects in essential gearbox components, non-destructive testing (NDT) procedures including ultrasonic testing, magnetic particle testing, and dye penetrated testing are used.
These techniques use various principles, such as sound waves and magnetic fields, to identify flaws without causing damage to the tested parts.
NDT methods provide valuable information about the integrity and quality of gearbox components, helping operators make informed decisions regarding maintenance and replacement.
By incorporating advanced inspection techniques into wind turbine maintenance programs, operators can improve the accuracy and efficiency of gearbox inspections, leading to enhanced reliability and reduced downtime.
Key Inspection Methods for Wind Turbine Gearboxes

Dimensional Inspection
Dimensional inspection is a critical step in ensuring the proper functioning and compatibility of gearbox components.
By precisely checking the dimensions of gears, shafts, bearings, and housings against design specifications and tolerances, operators can verify that the components are correctly sized and fit together properly.
Dimensional inspections tend to be carried out using Coordinate Measuring Machines (CMMs) provided with sensors, probes, or laser scanners.
These machines capture data points on the surface of the component, allowing for precise measurement of tolerances. Dimensional inspections help ensure that gearboxes are assembled with components that meet the required specifications, promoting smooth operation and optimal performance.
Visual Inspection

Visual inspection is a fundamental technique in identifying visible defects on gearbox components. Trained inspectors carefully examine the surfaces for cracks, deformations, surface irregularities, or improper finishes.
Visual inspection plays a crucial role in detecting abnormalities that may affect the functionality or structural integrity of the gearbox.
Inspectors rely on their expertise and visual acuity to identify potential issues during the inspection process.
Regular visual inspections, both during low wind seasons and as part of routine maintenance, can help monitor internal gearbox deterioration and prevent equipment failure.
Non-Destructive Testing (NDT)

Non-destructive testing methods are vital for identifying hidden or subsurface defects in critical gearbox components. These methods allow operators to detect flaws such as cracks, discontinuities, or material defects without causing damage to the tested parts.
Common NDT techniques employed in gearbox inspections include ultrasonic testing, magnetic particle testing, and dye penetrant testing.

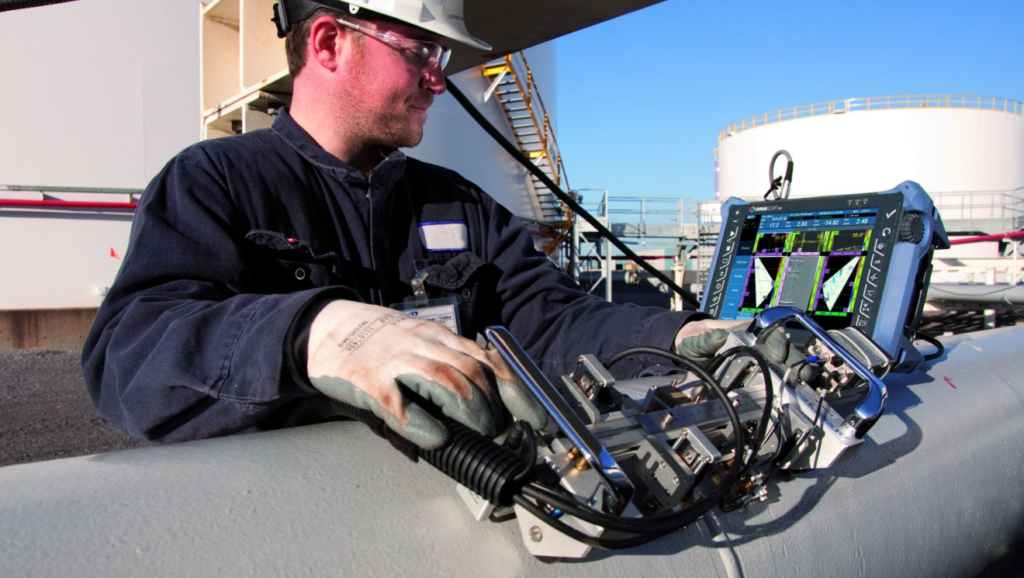

Ultrasonic testing uses sound waves to detect internal defects and measure component thickness. This technique is particularly useful for identifying cracks, voids, and other internal abnormalities in gears, shafts, and bearings.
Magnetic particle testing involves applying magnetic fields to the component and inspecting for magnetic particles that gather at defects or discontinuities. This method is effective for detecting surface cracks and flaws.
Dye penetrant testing uses a liquid dye that is applied to the component’s surface. The dye penetrates into surface-breaking defects, and excess dye is removed before applying a developer. The developer makes the dye visible, highlighting any defects that may be present.
These NDT methods provide valuable insights into the integrity and quality of gearbox components, allowing for timely maintenance and replacement when necessary.
Material Testing

Material testing is essential for assessing the properties of gearbox components and ensuring their suitability for the operational conditions.
Techniques such as hardness testing, tensile testing, and impact testing are employed to evaluate the strength, durability, and other material properties.
Hardness testing measures the resistance of a material to indentation or penetration. It provides insights into the material’s strength and ability to withstand operational loads and environmental conditions.
Tensile testing involves subjecting a material to a controlled stretching force to determine its mechanical properties, such as yield strength, ultimate tensile strength, and elongation. This testing helps assess the suitability of materials for gearbox components.
Impact testing measures the ability of a material to absorb energy under high-stress conditions. It helps determine the material’s toughness and resistance to sudden impacts or shocks.
By conducting material testing, operators can ensure that the selected materials meet the required specifications and possess the necessary properties to withstand the operational demands of wind turbine gearboxes.

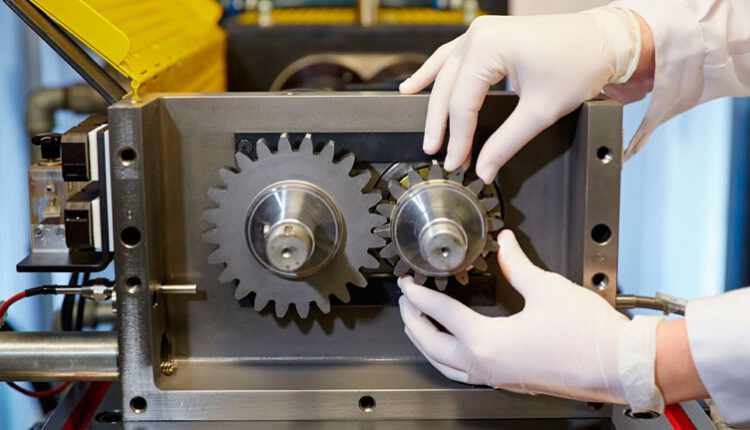

Gear Inspection

Gears are critical components in wind turbine gearboxes, and their proper functioning is crucial for efficient power transmission. Gear inspections focus on aspects such as gear tooth profiles, tooth spacing, and surface finish to ensure proper meshing and smooth operation.
Inspectors carefully examine gear teeth to identify any irregularities that could affect performance or lead to premature failure. Manufacturing defects, wear, and excessive damage can be detected through visual inspections and advanced techniques such as borescope inspections.
Regular gear inspections, combined with lubrication and maintenance, help ensure the reliability and longevity of wind turbine gearboxes.
Functional Testing

Functional testing involves subjecting the assembled gearbox to simulated operating conditions to evaluate its performance.
By applying load and rotational speed scenarios that mimic real-world conditions, operators can assess the gearbox’s ability to transmit power efficiently, handle expected loads, and operate smoothly.
Functional testing aims to identify any issues such as excessive noise, vibrations, or abnormal behavior. Any observed abnormalities or deviations from expected performance can be addressed and resolved before the gearbox is deployed in the field.
Functional testing provides valuable insights into the overall functionality and reliability of wind turbine gearboxes, enabling operators to make informed decisions regarding maintenance and repairs.
Implementing Effective Gearbox Inspection Programs

Implementing effective gearbox inspection programs requires careful planning, adherence to industry standards, and a comprehensive approach. The following steps can help organizations establish robust inspection programs:
- Risk Assessment: Conduct a thorough risk assessment to identify potential hazards, failure modes, and critical components. This assessment will help prioritize inspection activities and allocate resources effectively.
- Establish Inspection Intervals: Determine the frequency of inspections based on the criticality of gearbox components, operational conditions, and manufacturer recommendations. Regular inspections are essential, and the interval may vary based on factors such as environmental conditions and turbine age.
- Select Appropriate Inspection Techniques: Choose inspection techniques that are suitable for the specific gearbox components and the identified risks. Consider advanced inspection methods such as borescope inspections, NDT techniques, and material testing to enhance the accuracy and efficiency of inspections.
- Train and Certify Inspectors: Ensure that inspectors receive appropriate training and certification in the selected inspection techniques. This will ensure that inspections are conducted by qualified personnel who can accurately interpret inspection results and make informed decisions.
- Maintain Detailed Inspection Records: Maintain comprehensive records of all inspections, including inspection dates, findings, and any maintenance or repair actions taken. These records provide a valuable reference for future inspections, trend analysis, and regulatory compliance.
- Continuously Improve Inspection Processes: Regularly review and improve inspection processes based on feedback, lessons learned, and advancements in inspection techniques. Embrace technological advancements, such as remote monitoring and data analysis, to enhance the efficiency and effectiveness of inspections.
By implementing these steps and establishing a proactive and systematic approach to gearbox inspections, wind turbine operators can ensure the reliability, performance, and longevity of their assets.
Best Practices for Gearbox Inspection

To maximize the effectiveness of gearbox inspections, it is essential to follow best practices that promote accuracy, reliability, and safety. The following best practices can help operators conduct thorough and effective inspections:
Preparation:
Prior to inspection, ensure that the gearbox is de-energized and that all safety precautions are in place. Conduct a thorough visual examination of the gearbox exterior to identify any visible defects or abnormalities.
Use Proper Tools and Equipment:
Utilize appropriate inspection tools and equipment, such as borescopes, ultrasonic testing devices, and magnetic particle testing equipment. Ensure that the equipment is calibrated and maintained according to manufacturer guidelines.
Follow Standard Operating Procedures:
Adhere to standardized procedures for each inspection technique. This includes proper technique execution, data collection, and interpretation. Consistency in inspection procedures helps ensure accurate and reliable results.
Safety First:
Prioritize safety during inspections. Wear appropriate personal protective equipment (PPE), follow safety guidelines, and conduct inspections in a controlled environment to minimize risks to personnel and equipment.
Collaboration and Documentation:
Foster collaboration between inspection teams, maintenance personnel, and wind turbine operators. Document all inspection activities, findings, and actions taken to facilitate knowledge sharing and future reference.
Continuous Improvement:
Regularly review and improve inspection processes based on feedback, lessons learned, and advancements in inspection techniques. Embrace technological advancements to enhance inspection efficiency and accuracy.
By following these best practices, operators can ensure that gearbox inspections are conducted in a safe, systematic, and reliable manner, leading to enhanced maintenance outcomes and improved turbine performance.
The Future of Gearbox Inspection Techniques
As wind power continues to expand and demand for renewable energy grows, the need for reliable and efficient gearbox inspection techniques will also increase. Advancements in technology and data analysis are likely to shape the future of gearbox inspections in the following ways:
Remote Monitoring and Data Analysis:
Remote monitoring systems equipped with sensors can provide real-time data on gearbox performance, enabling proactive maintenance and reducing downtime.
Advanced data analysis techniques, such as machine learning and artificial intelligence, can help identify patterns and predict potential failures, allowing for targeted inspections and maintenance.
Robotics and Automation:
Robotics and automation technologies have the potential to revolutionize gearbox inspections. Robotic devices equipped with advanced sensors and cameras can access hard-to-reach areas inside gearboxes, improving inspection accuracy and reducing the need for human intervention in hazardous environments.
Continuous Monitoring:
Continuous monitoring systems can provide ongoing data on gearbox conditions, allowing for early detection of abnormalities or changes in performance. This real-time monitoring can help operators identify potential issues before they escalate, enabling proactive maintenance and minimizing downtime.
Improved Inspection Techniques:
Advancements in inspection techniques, such as 3D imaging, augmented reality, and enhanced NDT methods, will enhance the accuracy and efficiency of gearbox inspections. These techniques can provide detailed visualizations and precise measurements, facilitating more accurate defect detection and assessment.
The future of gearbox inspection techniques lies in the integration of advanced technologies and data analysis. By embracing these advancements, wind turbine operators can optimize maintenance strategies, improve reliability, and maximize the lifespan of their assets.
Conclusion
Gearbox inspections play a critical role in wind turbine maintenance, enabling operators to detect defects, ensure optimal performance, and prevent costly failures. Advanced inspection techniques, such as borescope inspections and non-destructive testing methods, offer several advantages in terms of accuracy and efficiency.
Implementing effective gearbox inspection programs involves risk assessment, selecting appropriate inspection techniques, training and certifying inspectors, and maintaining detailed inspection records.
By following best practices and embracing advancements in inspection technologies, wind turbine operators can enhance the reliability, performance, and longevity of their assets.
As the wind power industry continues to evolve, the future of gearbox inspections holds promising developments, including remote monitoring, robotics, continuous monitoring, and improved inspection techniques.
By embracing these advancements, wind turbine operators can stay ahead of maintenance challenges, optimize turbine performance, and contribute to a sustainable and clean energy future.
