By permitting or preventing the flow of liquids and gases in pipelines, gate valves are essential components of fluid control systems. Their design includes a gate or barrier that can be raised or lowered, and when fully open, it offers very little flow resistance. They are therefore perfect for uses where unhindered fluid flow is required. Due to their dependability and efficiency, gate valves, which are typically operated with a handwheel, are crucial in a variety of industries. This post will examine the various kinds of gate valves, their traits, benefits, and drawbacks. It will also examine the largest gate valve in the world and the difficulties in maintaining it.
Gate Valve: What is it?

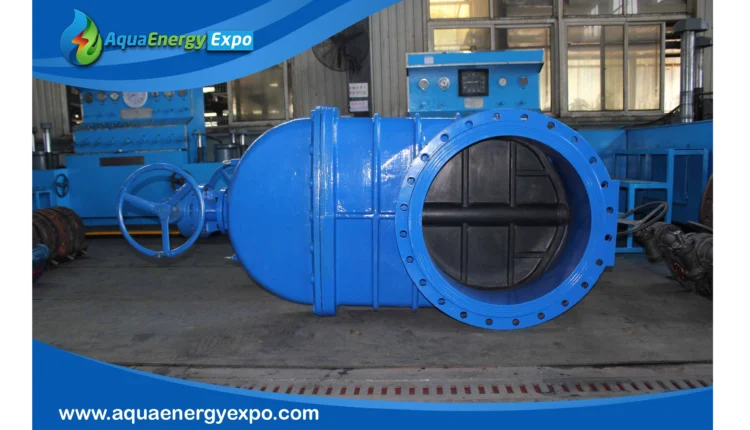

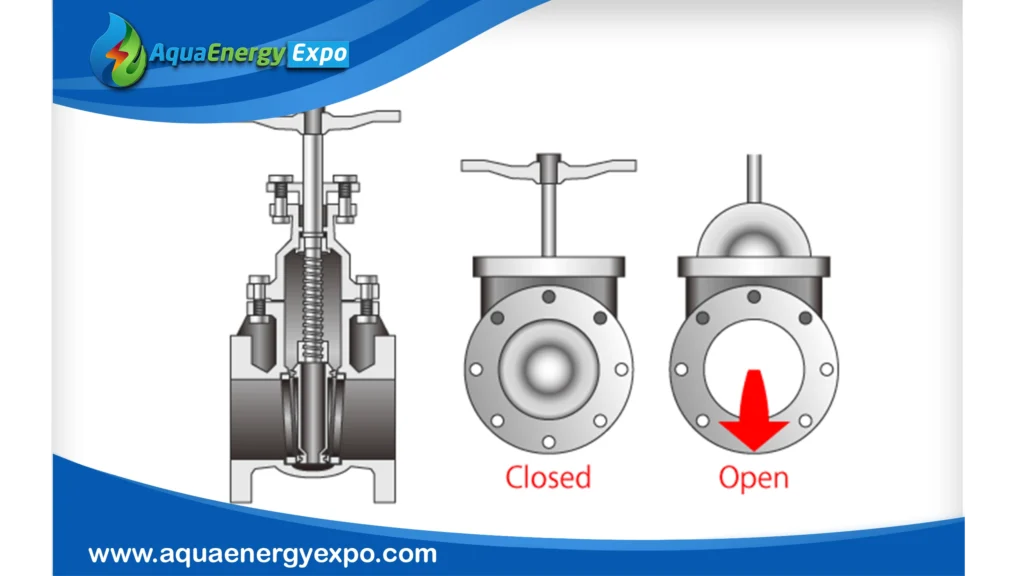

A gate valve, sometimes referred to as a sluice valve, opens by raising a barrier (gate) out of the fluid’s path. Gate valves barely impede fluid flow when the gate is fully open and take up very little room along the pipe axis. The purpose of gate valves is to initiate or terminate the fluid flow in a pipeline. Gate valves are mostly utilized in situations where minimal flow restriction and a straight-line fluid flow are required. Usually, a handwheel is used to raise or lower a gate inside the valve body. This mechanism is perfect for applications where full flow is required because it enables the valve to be fully opened or closed.
Types of gate valves
Gate valves are typically classified into two categories: wedge-shaped and parallel.
1) The Parallel Gate Valve
By employing upstream pressure to prevent leaks, the parallel gate valve’s flat disc gate, which is situated between two parallel seats, enables efficient shut-off. To keep the disc gate under constant pressure, some designs use spring-energized elastomers. Double-disk parallel-seat valves ensure a tight seal by lowering the disks to match the valve seats and converting stem force into axial force via an inclined plane. These valves efficiently accommodate asymmetric or misaligned valve seats, making them perfect for low-pressure applications and circumstances where tight shutoff is not essential.

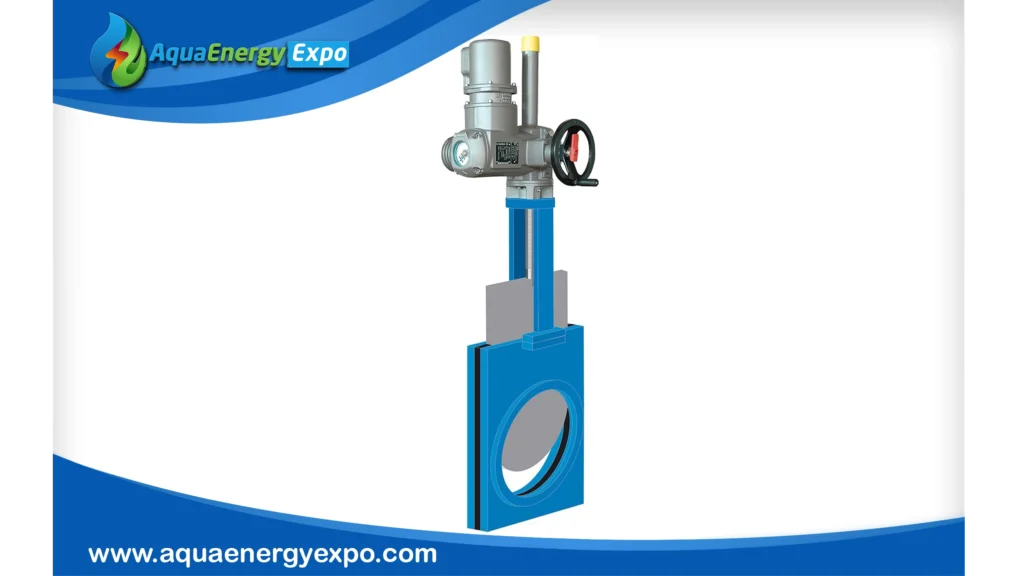

1. Knife valves: One particular kind of parallel gate valve is the knife valve. To separate slurries or shear entrained solids, they feature a sharp edge on the bottom of the gate.
2. The through-conduit gate valves: These valves feature a rectangular closure element. When the element is lowered, the closure’s circular opening—which is equivalent to the gate valve’s full-area flow passageway—becomes exposed to the flow. The flow is stopped by raising the element. The gate’s seating surface is always in contact with the gate in this design.

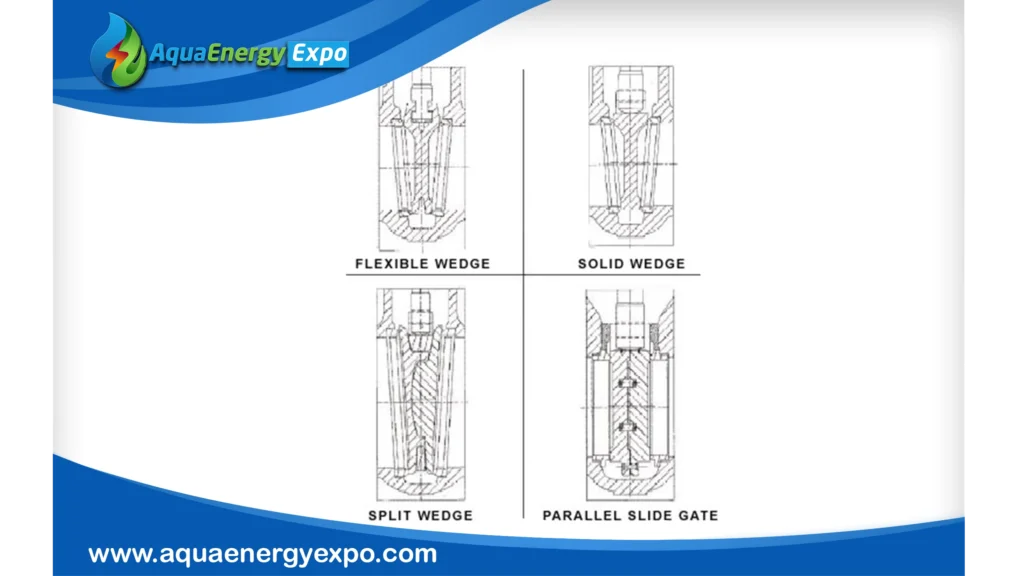

2) Wedge-shaped Gate Valves:
These valves allow for a tight shut-off thanks to their two inclined seats and slightly mismatched inclined gate. When valve seats are angularly misaligned, the split wedge design’s built-in disk flexibility makes sealing simpler and reduces stickiness between sealing surfaces. As the actuator closes the valve, the seating surfaces will align more easily thanks to this design’s allowance for some free movement. When dealing with corrosive liquids and non-condensing gases at room temperature, these valves are perfect. For better sealing, solid gates can also have pressure-energized elastomer inserts added, and for best results, the disk should be positioned vertically.
1. Solid wedges: Due to their strength and ease of use, solid wedges are the most popular. They work well for turbulent flow, are appropriate for practically all fluids, and can be installed in any position.
2. Flexible wedge gate valves: Because of their distinctive design, flexible wedge gate valves are frequently utilized in steam systems. The single-piece disk’s perimeter cut improves its capacity to adapt to mistakes or variations in seat angles. Cuts come in a variety of sizes, shapes, and depths; for instance, a shallow cut provides strength but little flexibility, whereas a deeper cut weakens the disk but increases flexibility. Because of this design, the gate can flex as the valve seat compresses under the heat from the steam, preventing it from binding when the valve is closed. Water can build up in the neck, which is a drawback.
Characteristics of the Gate Valve
|
Advantages |
Disadvantages |
| Available in large sizes | Low pressure limitations |
| Can be used with slurries and viscous liquids | Slow open and close time |
| Used as a shut off valve | Erosion of the seat and disk can occur |
| Easy to maintain and disassemble | Poor throttling characteristics |
| Inexpensive | Difficult to repair |
| Inherently fire-safe (when used with a metal sheet) | Should not be used in sanitary applications |
| Bidirectional |
Where is the Biggest Valve in the World?
The Dallas-Fort Worth Metroplex (DFW) province, the largest inland metropolitan area in America, is located in Texas and serves as the cultural and economic center of North and Central Texas. By 2060, it is anticipated that over 13 million people will require water due to the area’s fast population growth.

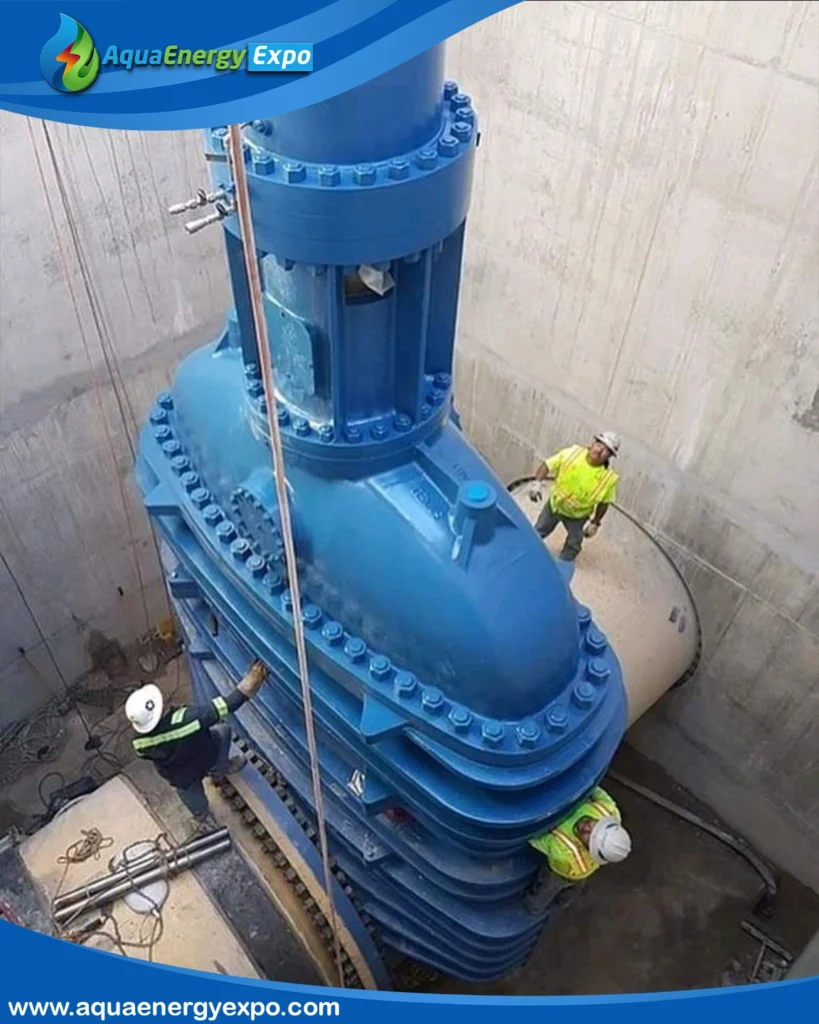

The DN2800 and 108-inch-diameter gate valves are made for the IPL (Integrated Pipeline), America’s first platinum-rated water pipeline project. By 2060, the project will significantly increase the Dallas-Fort Worth Metroplex’s daily water supply by 1.59 billion liters (350 million gallons). With a weight of 117 tons and a height of 40 feet, Blackhall’s Zero-Leakage Metal Seated Parallel Faced Gate Valve is built to last for a century.

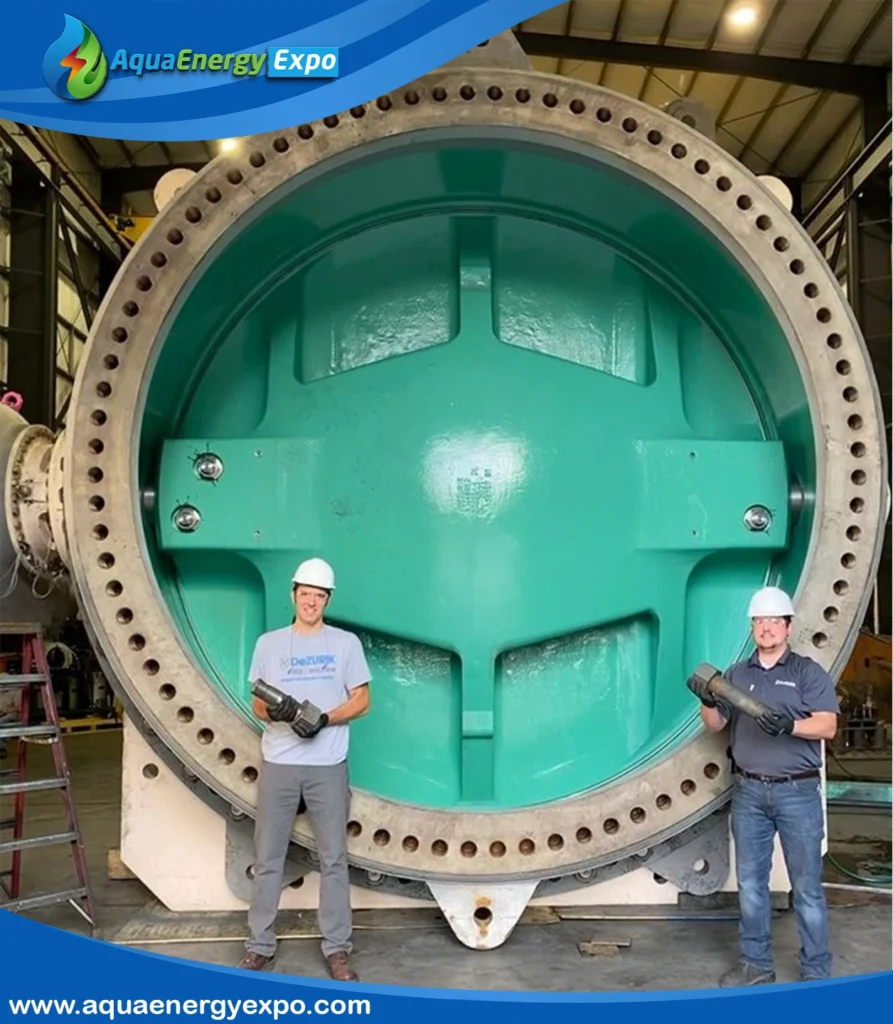

Key Challenges in Managing Exceptionally Large Valves
Simply put, there are fewer businesses with the manufacturing capacity and design know-how to deal with large valves. Additionally, fewer foundries are able to pour the large castings. It might be necessary to develop complex tooling and engineering capabilities. It is uncommon to find valve manufacturers with the knowledge, tools, and infrastructure needed to create large valves. Larger valves can be more difficult to handle, test, and transport due to a less vertically integrated manufacturing process.
Other significant large-valve difficulties consist of:
– It is difficult to handle material for testing and fabrication (factory crane capacity and lift height limitations). Limitations on machine tools, such as the size of the mill and lathe, are another problem.
– For larger valves, it can frequently be prohibitively expensive to comply with industry standards that apply to smaller valves.
– To avoid exceeding the typical 15- or 30-minute electric actuator motor run times, the stroke speed (the speed at which the gate or flow element moves) for large electrically actuated valves may need to be faster than that for a smaller valve.
– The standard over-road semi-trailer’s maximum weight is 80,000 pounds. The valve must be shipped in pieces and assembled on site because the contractor may also have handling restrictions or access to the installed location may be limited.
Conclusion
In summary, gate valves are essential parts of fluid control systems because they provide efficient ways to start and stop flow with little resistance. Diverse operational requirements are met by their design variations, which include parallel and wedge-shaped gate valves, guaranteeing dependability in a range of applications. They have benefits like bidirectional flow and ease of maintenance, but it’s important to take into account drawbacks like their sluggish operation and erosion vulnerability. The world’s largest gate valve serves as an example of the particular difficulties involved in managing large valves. In order to maximize performance and guarantee the longevity of gate valves in industrial settings, it is imperative to comprehend these factors.
