The management of stormwater has evolved significantly, especially in urban areas where rapid development has transformed natural landscapes into concrete jungles. Traditional drainage systems aimed to quickly transport water away from developed areas, often leading to environmental challenges. The introduction of innovative solutions like the Vortex Drainage System offers a promising approach to enhance stormwater management by controlling discharge flow rates effectively.

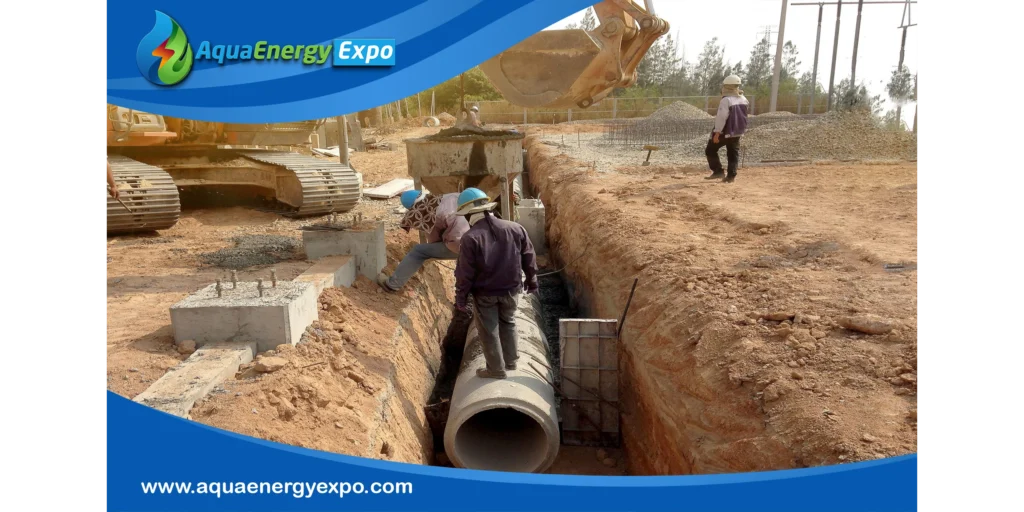

The Shift in Stormwater Management Practices
Historically, stormwater management focused on rapidly conveying runoff to local watercourses. This approach, characterized by phrases like “move it along” and “get rid of the water quickly,” has led to significant environmental challenges. Increased urbanization has resulted in 80% of rainfall becoming stormwater runoff, overwhelming drainage systems and polluting receiving environments with oils, sediments, and other contaminants.
Recognizing these issues, there is a growing trend towards more sustainable stormwater management practices. Modern strategies emphasize upstream solutions that intercept, infiltrate, and treat excess wet-weather flows to prevent downstream hydraulic and water quality problems.
– Mimicking Natural Processes
To achieve effective stormwater management, it is essential to mimic natural processes. In undisturbed environments, the majority of rainwater would soak into the ground, recharging aquifers and filtering through soil layers. In contrast, urbanization has disrupted this cycle, leading to increased runoff and water quality degradation.
Controlling and attenuating stormwater runoff is crucial for sustainable integrated stormwater management. Reducing peak runoff rates directly impacts the size and capacity of downstream conveyance systems and treatment devices, addressing both water quantity and quality issues.
Understanding the Vortex Valve
– What is a Vortex Valve?
The Vortex Valve is a cutting-edge device designed for engineers seeking precise control over discharge flow rates in stormwater drainage, detention, and infiltration systems. Unlike conventional methods, the Vortex Valve operates without moving parts, relying solely on hydraulic effects to manage flow.
– Design and Functionality

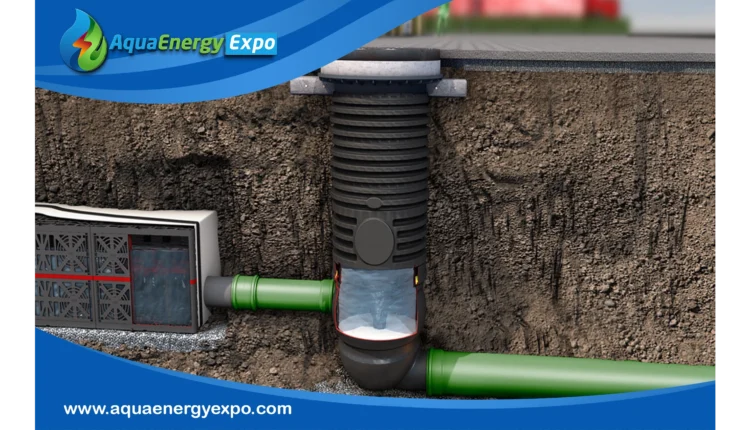

The Vortex Valve’s design features a unique head/discharge relationship, allowing it to self-activate based on upstream hydraulic head. The valve comprises an intake, a volute, and an outlet. Water enters tangentially into the volute, creating a vortex that significantly reduces peak discharge flow rates compared to traditional orifices of equivalent diameter.
– High Flow Conditions: As flow increases, a vortex pattern develops, creating an air-filled core that throttles flow and generates back pressure, restricting discharge.
– Low Flow Conditions: Under low flow, water flows through the valve with minimal pressure drop.
This innovative mechanism enables the Vortex Valve to handle larger debris without clogging, making it a superior choice for stormwater management.
– Benefits of Vortex Valves
The Vortex Valve offers numerous advantages, including:
– No Moving Parts: Eliminates mechanical failure risks and maintenance needs.
– Precise Flow Control: Allows for accurate management of water discharge.
– Anti-Clogging Design: Reduces the likelihood of blockages, minimizing maintenance.
– Self-Activating: Automatically adjusts to flow conditions without external power.
– Durable Construction: Made from corrosion-resistant stainless steel for long-lasting performance.
– By-Pass Door: Facilitates easy cleaning and maintenance access.
– Laboratory-Verified Performance: Provides reliable and predictable flow control.
– Versatile Applications: Suitable for various stormwater management scenarios.
Conventional Flow Control Devices
Traditional flow control devices, such as orifice plates and penstocks, have been the standard for managing outflows from retention and detention structures. These devices operate on the principle that to reduce flow rate (Q) for a given head (h), one must either decrease the cross-sectional area (A) of the outlet or the coefficient of discharge (Cd).
– Limitations of Conventional Devices
– Penstocks and Float Valves: Movable parts are prone to fouling, compromising performance.
– Orifice Plates: Fixed coefficients lead to smaller apertures, increasing blockage risks.
In contrast, Vortex Valves provide a solution without moving parts, minimizing blockage risks while maintaining larger outlet apertures.
The Mechanism of Vortex Flow Control
Vortex valves operate as passive flow control devices that utilize gravity. Their design typically features a snail, circular, or conical volute, functioning as a natural hydraulic brake. High flows create a vortex in the volute, restricting water outflow and allowing for better management of stormwater.
– Two Modes of Operation
1. Pre-Initiation Mode: The valve acts like a large orifice, allowing water and debris to flow freely under low to moderate conditions.
2.Post-Initiation Mode: As flow increases, the valve throttles the discharge through the formation of a stable vortex, creating back pressure that restricts flow.
This dual operating characteristic enables vortex valves to manage flows effectively, often equating to the hydraulic resistance of an orifice plate with a significantly smaller cross-sectional area.

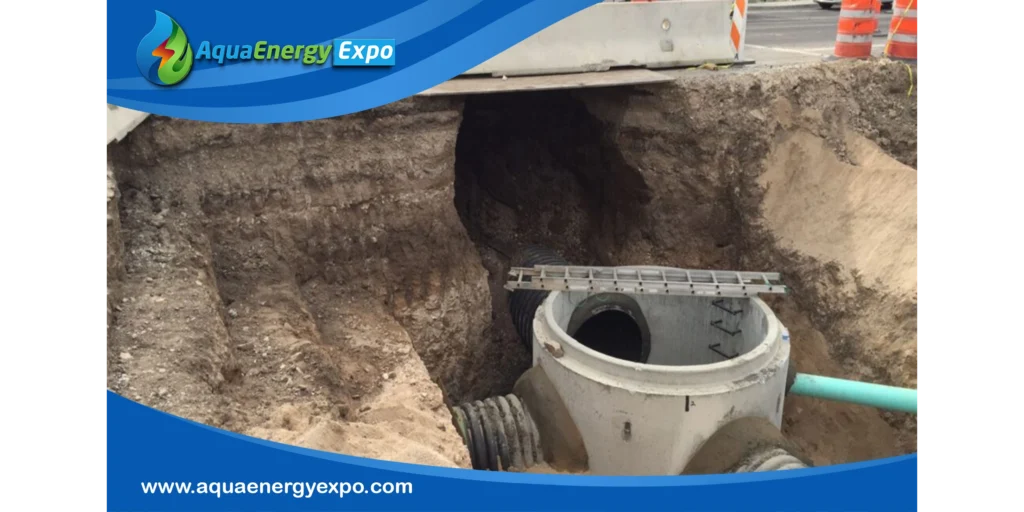

Applications of Vortex Drainage System
Vortex Drainage System can be likened to beaver dams in natural rivers, slowing down stormwater flows in urbanized catchments. By implementing these valves, drainage systems can attenuate flows, allowing for storage, treatment, and recharge of stormwater before it reaches downstream locations.
– Benefits of Attenuated Flow
– Environmental Protection: Vortex valves help mitigate the adverse effects of urbanization on water resources.

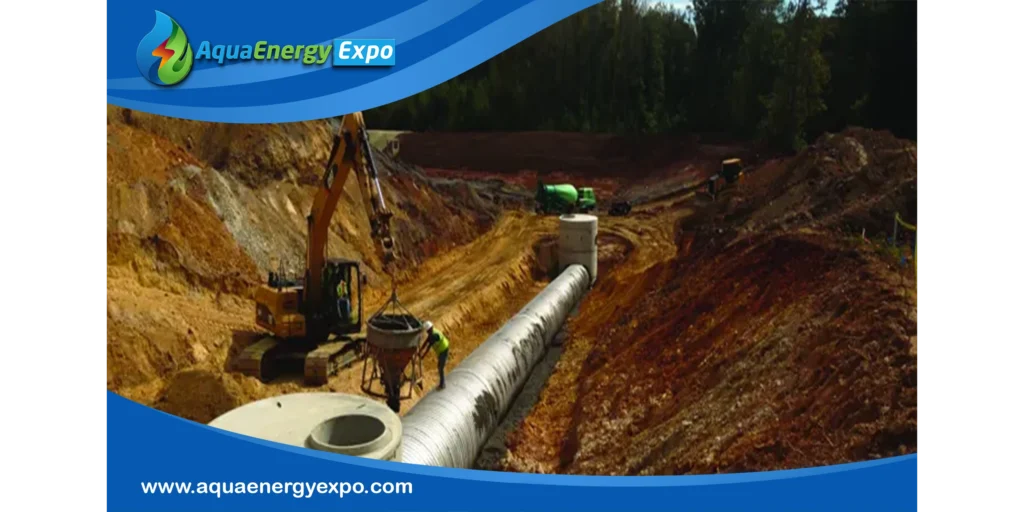

– Temporary Storage: Allows for stormwater to be stored in collection systems, underground tanks, or surface ponds, preventing uncontrolled rushing towards treatment facilities.
– Cost-Effectiveness: Utilizing a distributed systems approach reduces the need for larger conveyance pipes and treatment systems.
Case Study: Chesapeake Bay, Maryland
The Chesapeake Bay, North America’s largest estuary, faces significant challenges due to stormwater runoff. Contaminants from urban areas contribute to water quality degradation, prompting strict stormwater management regulations in Maryland.
-Implementation of Vortex Valves
Montgomery County has established stringent requirements for stormwater management, including the need for on-site storage of stormwater runoff. Engineers at Chevy Chase Bank faced design challenges due to these regulations but found that replacing traditional orifice plates with a Vortex Valve could effectively manage discharge rates while reducing the required storage volume.
Conclusion
Vortex Drainage System represent a significant advancement in stormwater management, offering flexibility and efficiency in controlling flow rates. By regulating stormwater at its source, these valves help prevent downstream flooding and pollution, promoting a more sustainable approach to urban drainage. As urban areas continue to grow, adopting integrated water management plans that prioritize prevention over remediation will be essential. The successful implementation of vortex valves illustrates the potential for innovative solutions to address the challenges posed by urbanization and protect water resources for future generations.
