The ultrafiltration membrane is an essential technology in the field of water treatment, renowned for its ability to efficiently separate impurities from water. With its extremely small pore sizes, typically between 0.01 and 0.1 microns, this membrane effectively removes suspended solids, bacteria, and viruses, ensuring high-quality water output. Unlike traditional filtration methods, the ultrafiltration membrane excels in targeting smaller contaminants, making it suitable for various applications, such as drinking water production and industrial processes. As the demand for clean water grows, the ultrafiltration membrane stands out as a vital solution for achieving effective water purification and maintaining water safety.
What is Ultrafiltration (UF)?
In water treatment, ultrafiltration often shortened to UF is a separation method based on hollow-fibre membranes. This kind of filtration separates water from colloids, suspended particles, and high molecular weight materials using a semi-permeable membrane with extremely tiny pores.
Depending on the type of hollow-fiber UF system, clean filtered water is produced by applying a vacuum to the membrane’s interior, which draws the feed water through numerous tiny pores. In a pressurized UF system, the water is forced through the membranes by pumping it through hollow fibers under pressure. Particles, germs, viruses, and other impurities are efficiently eliminated by both hollow fiber UF membranes. As a result, high-quality water is produced that can be used for a variety of purposes, including industrial operations and the manufacture of drinking water.

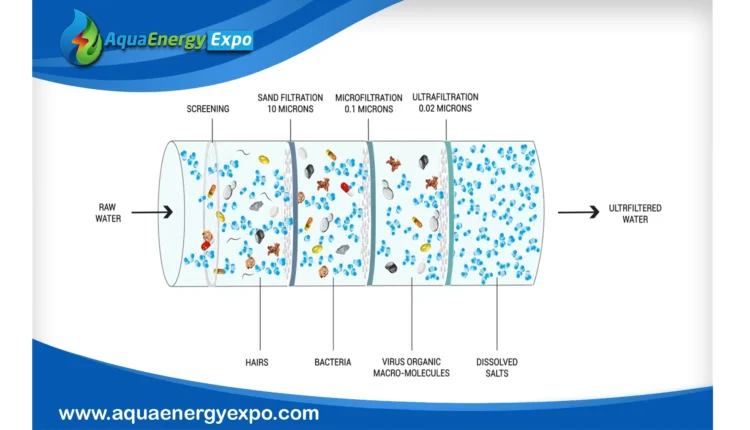

How Does Ultrafiltration Work?
To fully appreciate ultrafiltration’s efficacy in water treatment, one must comprehend how it operates. Ultrafiltration is an efficient membrane filtration method that uses pressure to remove impurities from water. The semi-permeable membrane in the center of an ultrafiltration system has pores that are normally between 0.01 and 0.1 microns in size. Particles bigger than the pore size are retained when water is forced through these tiny pores under pressure, but water molecules and other smaller dissolved substances go through.
Bacteria, viruses, suspended particles, and other microbes are successfully eliminated from the water using this method. Point-of-entry (POE) systems, which treat all water entering a facility, and point-of-use (POU) systems, which treat water where it is used, are the two primary system types that can use ultrafiltration water filters.
The ultrafiltration process typically involves several stages
Prefiltration: Before water enters the ultrafiltration system, it typically passes through a prefilter to remove larger particles that could potentially damage the UF membrane.
Pressure application: Depending on the type of ultrafiltration membrane, a vaccum is applied to suck the water through the membrane our the water is pressurized and forced through the ultrafiltration membrane.
Membrane separation: As water passes through the UF membrane, contaminants larger than the membrane’s pore size are trapped on the surface or within the membrane structure.
Permeate collection: The filtered water, known as permeate, passes through the membrane and is collected for use or further treatment.
Concentrate removal: Contaminants that are too large to pass through the membrane accumulate on the feed side, forming a concentrate that is periodically flushed from the system.
Backwashing: To maintain efficiency, ultrafiltration systems periodically reverse the flow of water to clean the membrane surface, a process known as backwashing.
What it removes
Suspended solids
Bacteria
Protozoa
Some viruses
Colloids
High molecular weight organic compounds
This process results in clear, high-quality water suitable for various applications, from drinking water to industrial use.
Classifications of UF Membranes
Made primarily of cellulose acetate and cellulose acetate polymer components, Uf membrane is an artificial permeable membrane. It can be separated into numerous categories based on its shape, and several of these can then be put together for large-area filtration. Concerning the comprehension of UF membranes.
Types of ultrafiltration membranes
Flat ultrafiltration membrane
Also referred to as a plate ultrafilter, this structural type was first created and comes in a number of shapes, including oval, square, and polygonal. The membrane employed is a flat membrane regardless of its shape. It is reusable in addition to being simple to disassemble and clean.

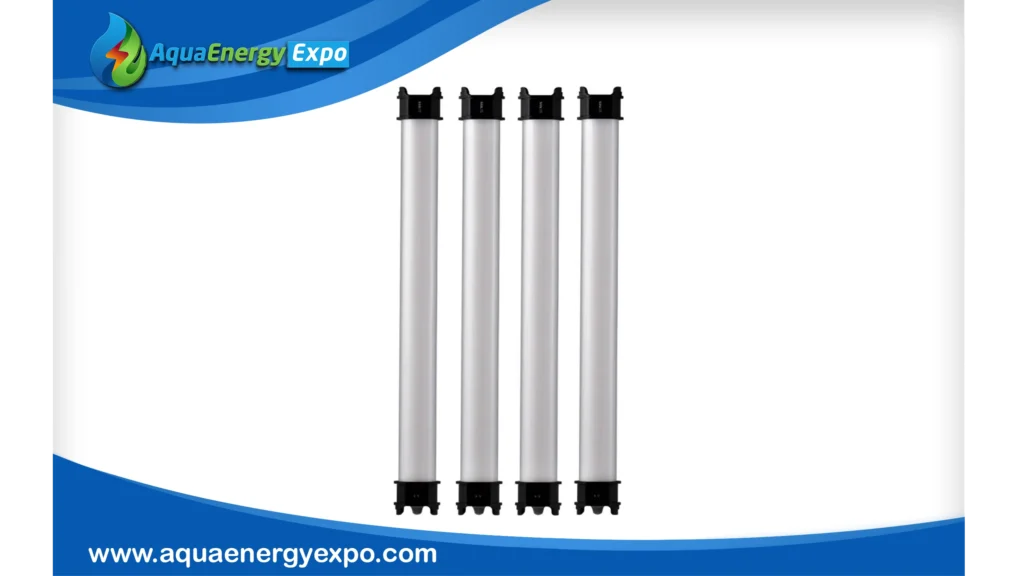

Hollow fiber UF membrane
It has a good flow state since the floor surface is tiny compared to the volume and all the parts are easily replaced. However, there are some drawbacks as well. For example, only the components may be replaced when the UF membrane is broken; the membrane itself cannot be fixed.
Tubular UF membrane
It is widely utilized in solution concentration and industrial wastewater treatment. There won’t be any obstruction due to the vast flow channel area, and it’s also highly practical for cleaning surfaces.
Difference Between Filtration and Ultrafiltration
Although purifying water is the goal of both filtration and ultrafiltration, the two procedures differ greatly. Sand and activated carbon are examples of physical barriers that are commonly used in traditional filtering to capture bigger particles and certain dissolved chemicals. Ultrafiltration, on the other hand, uses sophisticated membrane technology with significantly smaller hole sizes, which enables the removal of bacteria, viruses, and other tiny pollutants in addition to suspended particles.
Compared to traditional filtration techniques, reverse osmosis nanofiltration systems can remove particles as small as 0.01 microns, resulting in a better level of water purity. Because of this, ultrafiltration works especially well for purifying industrial process water and creating high-quality drinking water. Furthermore, compared to conventional filtering systems, ultrafiltration systems frequently require less backwashing and maintenance, which improves operational effectiveness and cost-effectiveness.
Pore size: Traditional filtration methods typically use larger pore sizes, ranging from 1 to 1000 microns. Ultrafiltration membranes have much smaller pores, and can filter out particles between 0.01 and 0.1 microns.
Contaminant removal: Standard filtration is effective at removing larger particles and some microorganisms. Ultrafiltration can remove not only these contaminants but also smaller particles, bacteria, and even some viruses.
Water quality: Ultrafiltration produces higher quality water than traditional filtration methods due to its ability to remove smaller contaminants of molecular size
Applications: While both methods are used in water treatment, ultrafiltration is often employed in more demanding applications where higher water purity is required
The Impact of Ultrafiltration Membranes on Water Quality Improvement
Enhancement of Water Quality Stability
- UF membrane technology is crucial for improving the stability of water quality. The effluent’s turbidity may be consistently kept below 0.1NTU thanks to UF membranes’ ability to efficiently remove suspended particles, colloids, and microbes from water, improving the physical stability of the water quality. For instance, a water treatment plant’s effluent’s turbidity decreased from 0.5 NTU to 0.05 NTU with the implementation of UF membrane technology, greatly enhancing the water quality’s stability.
- Additionally, the removal of organic debris from water by UF membranes contributes to the improvement of water quality’s chemical stability. By eliminating 60% to 80% of big molecular organic matter from water, UF membranes can lessen the negative effects of organic matter on water quality as well as the color and odor of the water. By maintaining a satisfactory water quality condition throughout time, this stable water quality lessens the impact of water quality changes on users while simultaneously meeting their short-term needs.
Assurance of Drinking Water Safety
- One major benefit of UF membrane technology is that it ensures the safety of drinking water. With removal rates of 99.99% and 99.999%, respectively, UF membranes’ pore sizes, which typically range from 0.002 to 0.1 micrometers, allow them to efficiently keep bacteria and viruses in water. Accordingly, drinking water’s microbial content can be greatly decreased and its sanitary safety guaranteed by using UF membrane technology, which effectively removes germs from water without the need for chemical agents.
- Natural minerals like calcium and magnesium can be preserved in water using UF membrane technology, which is essential for preserving the drinking water’s inherent flavor and nutritional content. Mineral retention not only satisfies human health requirements but also prevents health issues brought on by mineral deficiency. For instance, users claimed that the water tasted sweeter and the water quality had greatly improved after a water treatment plant implemented UF membrane technology. This suggests that UF membrane technology can provide drinking water of superior quality while maintaining its safety.
Conclusion
To wrap up, the ultrafiltration membrane is a transformative technology that significantly enhances water purification processes. By effectively removing a wide range of contaminants, it not only improves water quality but also supports various industries in meeting stringent health and safety standards. As challenges related to water scarcity and pollution increase, the ultrafiltration membrane will play an increasingly important role in ensuring access to clean water, driving innovation in sustainable water management practices.
