Ultrafiltration membrane treatment is an advanced water treatment process that has gained significant popularity in recent years due to its effectiveness in removing a wide range of contaminants from water. Whether you’re curious about how ultrafiltration membranes improve water quality or seeking solutions for industrial water treatment, understanding ultrafiltration meaning can help you make informed decisions about your water treatment needs.

In this article, we will explore what ultrafiltration is, how it works, its benefits, and how it compares to other filtration methods. We will also delve into the types of ultrafiltration membranes, what they remove, and how to maintain an ultrafiltration system.

What is Ultrafiltration (UF)?

Ultrafiltration, often abbreviated as UF, is a hollow-fiber membrane-based separation process used in water treatment. It utilizes a semi-permeable membrane with very fine pores to separate water from suspended solids, colloids, and high molecular weight substances.

Mechanism of Ultrafiltration

Depending on the type of hollow-fiber UF system, a vacuum is applied to the inside of the membrane to suck the feed water through microscopic pores, resulting in clean filtered water. In a pressurized UF system, water is pressurized and pumped through the hollow fibers, forcing it through the membranes. Both methods effectively remove particles, bacteria, viruses, and other contaminants, producing high-quality water suitable for various applications, from drinking water production to industrial processes.

Key Features of Ultrafiltration

– Pore Sizes: Typically range from 0.01 to 0.1 microns.

-Contaminant Removal: Effectively removes particles, bacteria, and some viruses.

– Energy Efficiency: Low energy consumption compared to other membrane technologies.

– Chemical Use: Minimal use of chemicals in the treatment process.

– Consistent Quality: Reliable water quality output regardless of influent variations.

Ultrafiltration water treatment has become increasingly popular due to its efficiency, reliability, and ability to produce high-quality water regardless of source water fluctuations.

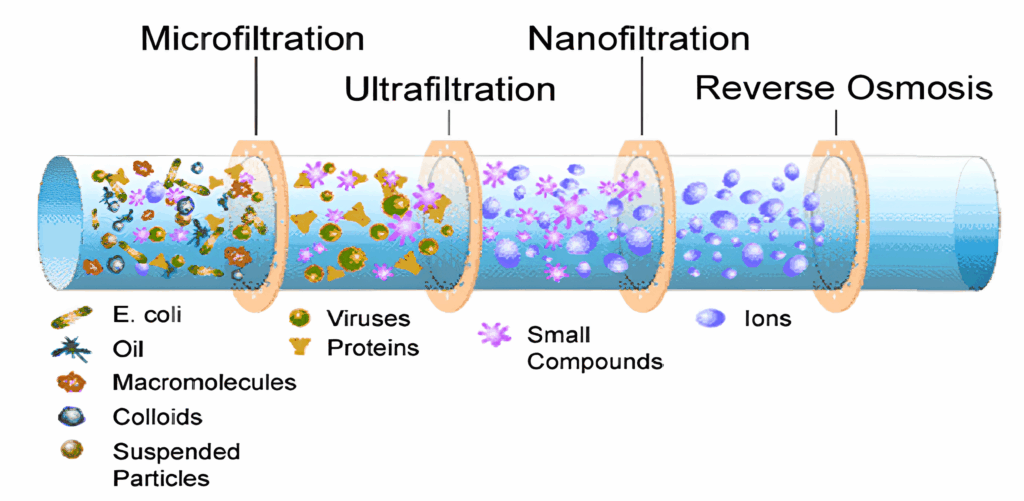

Ultrafiltration vs. Traditional Filtration: What’s the Difference?

While both filtration and ultrafiltration aim to purify water, there are significant differences between the two processes. Traditional filtration typically relies on physical barriers, such as sand or activated carbon, to trap larger particles and some dissolved substances. In contrast, ultrafiltration employs advanced membrane technology with much smaller pore sizes, allowing for the removal of not only suspended solids but also bacteria, viruses, and other microscopic contaminants.

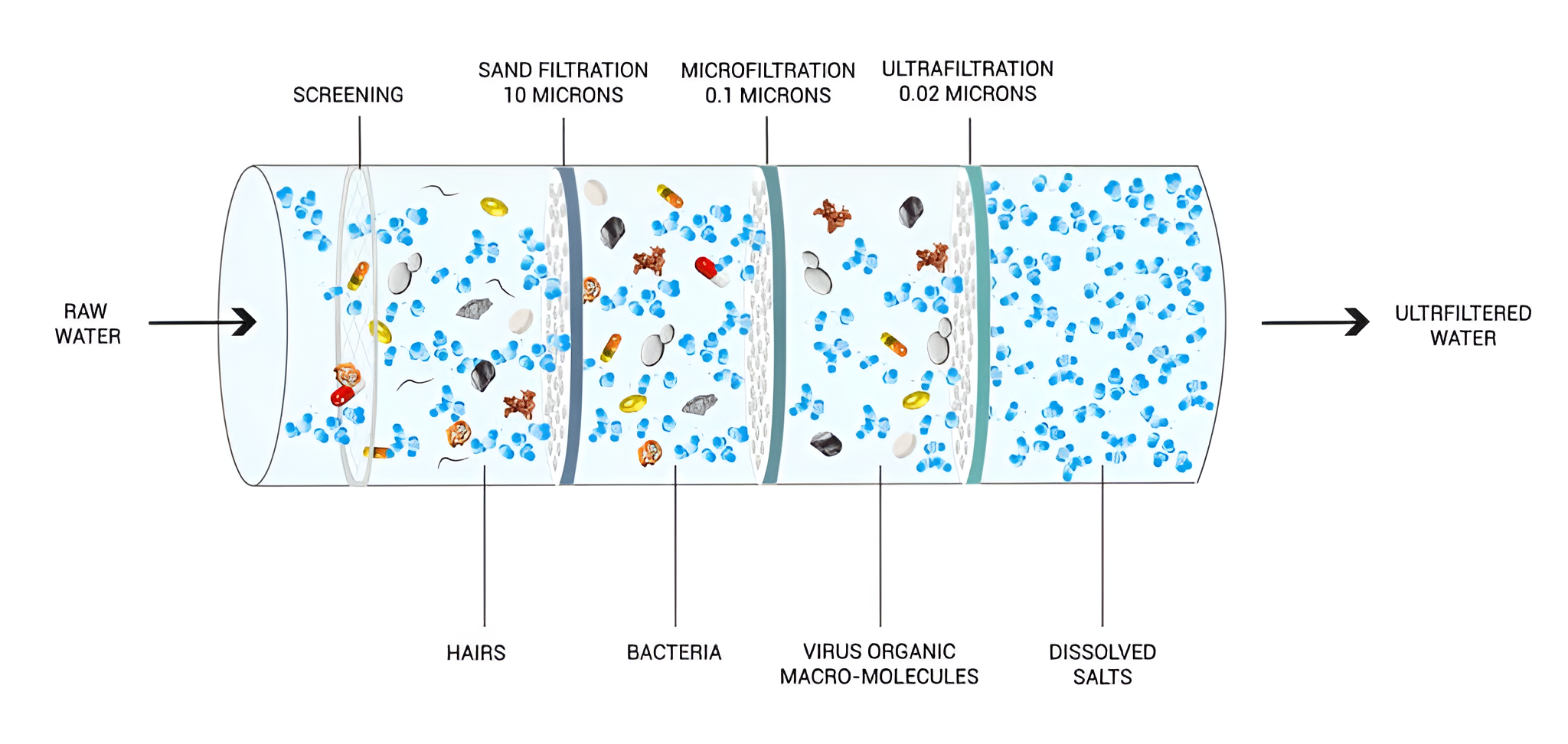

Comparison of Filtration and Ultrafiltration

– Pore Size: Traditional filtration methods typically use larger pore sizes (ranging from 1 to 1000 microns), while ultrafiltration membranes filter out particles between 0.01 and 0.1 microns.

– Contaminant Removal: Standard filtration is effective at removing larger particles and some microorganisms, whereas ultrafiltration can remove smaller particles, bacteria, and even some viruses.

– Water Quality: Ultrafiltration produces higher quality water than traditional filtration methods due to its ability to remove smaller contaminants.

-Applications: Ultrafiltration is often employed in more demanding applications requiring higher water purity.

How Does Ultrafiltration Work? A Step-by-Step Process

Understanding how ultrafiltration works is key to appreciating its effectiveness in water treatment. Ultrafiltration is a pressure-driven membrane filtration process that effectively removes contaminants from water.

Prefiltration: Water typically passes through a prefilter to remove larger particles that could damage the UF membrane.
Pressure Application: Depending on the type of ultrafiltration membrane, a vacuum is applied, or water is pressurized to force it through the membrane.
Membrane Separation: As water passes through the UF membrane, contaminants larger than the pore size are trapped on the surface or within the membrane structure.
Permeate Collection: The filtered water, known as permeate, passes through the membrane and is collected for use or further treatment.
Concentrate Removal: Contaminants that are too large to pass through the membrane accumulate on the feed side, forming a concentrate that is periodically flushed from the system.
Backwashing: To maintain efficiency, ultrafiltration systems periodically reverse the flow of water to clean the membrane surface, a process known as backwashing.

Types of Ultrafiltration Membranes

Ultrafiltration membranes come in various configurations, each designed to suit specific applications and water treatment needs. The choice of membrane type can significantly impact the efficiency and effectiveness of the ultrafiltration process.

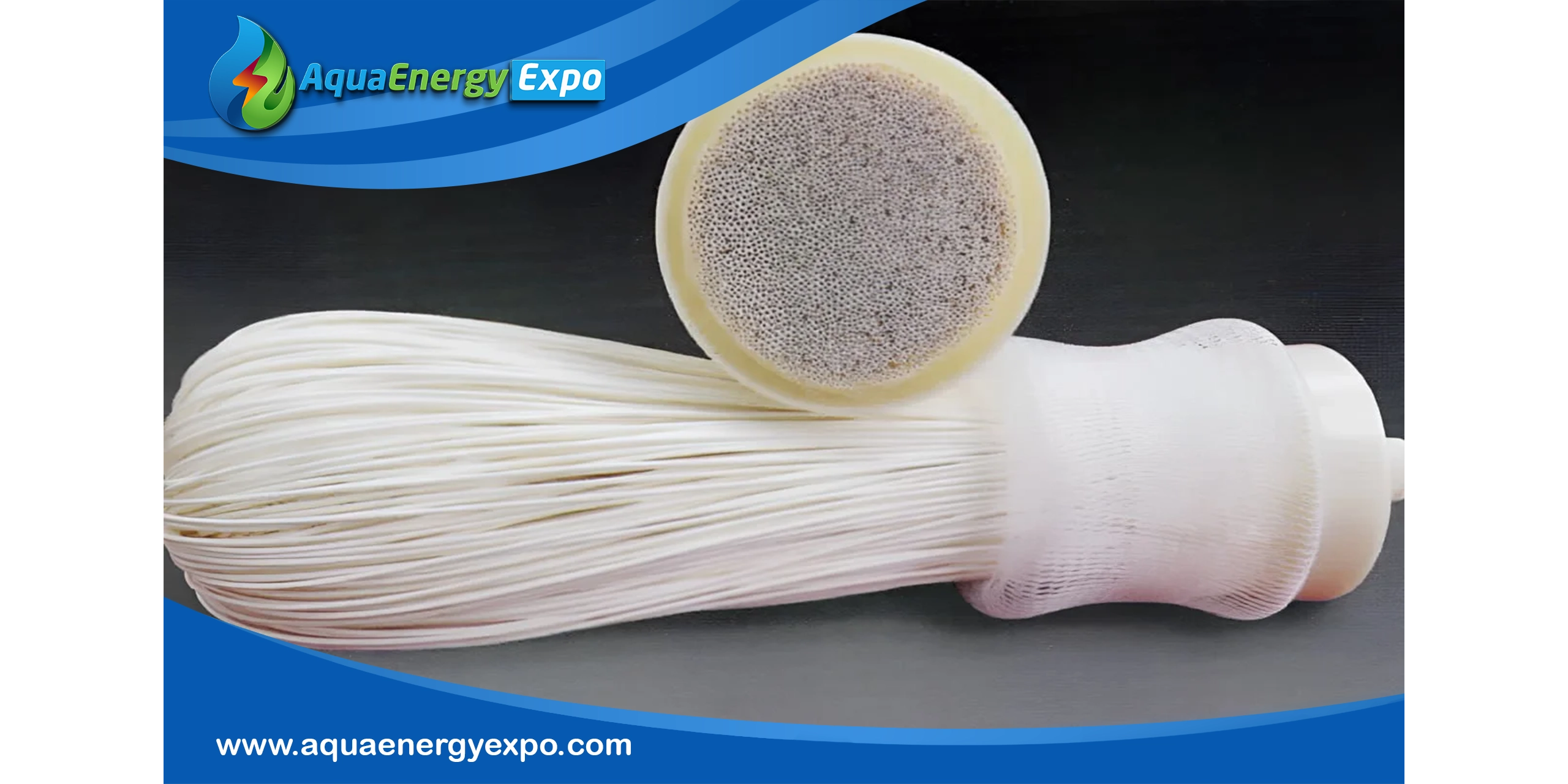

Immersed Hollow Fiber Membranes:

– Composed of bundles of hollow fibers with microscopic pores.

– Excellent for handling high solids content.

– Commonly used in municipal water and wastewater treatment.

Pressurized Hollow Fiber Membranes:

– Operate by feeding pressurized water to the module and into the membrane fibers.

– Excellent at handling raw water fluctuations.

– Commonly used for drinking water, industrial process water, and tertiary filtration.

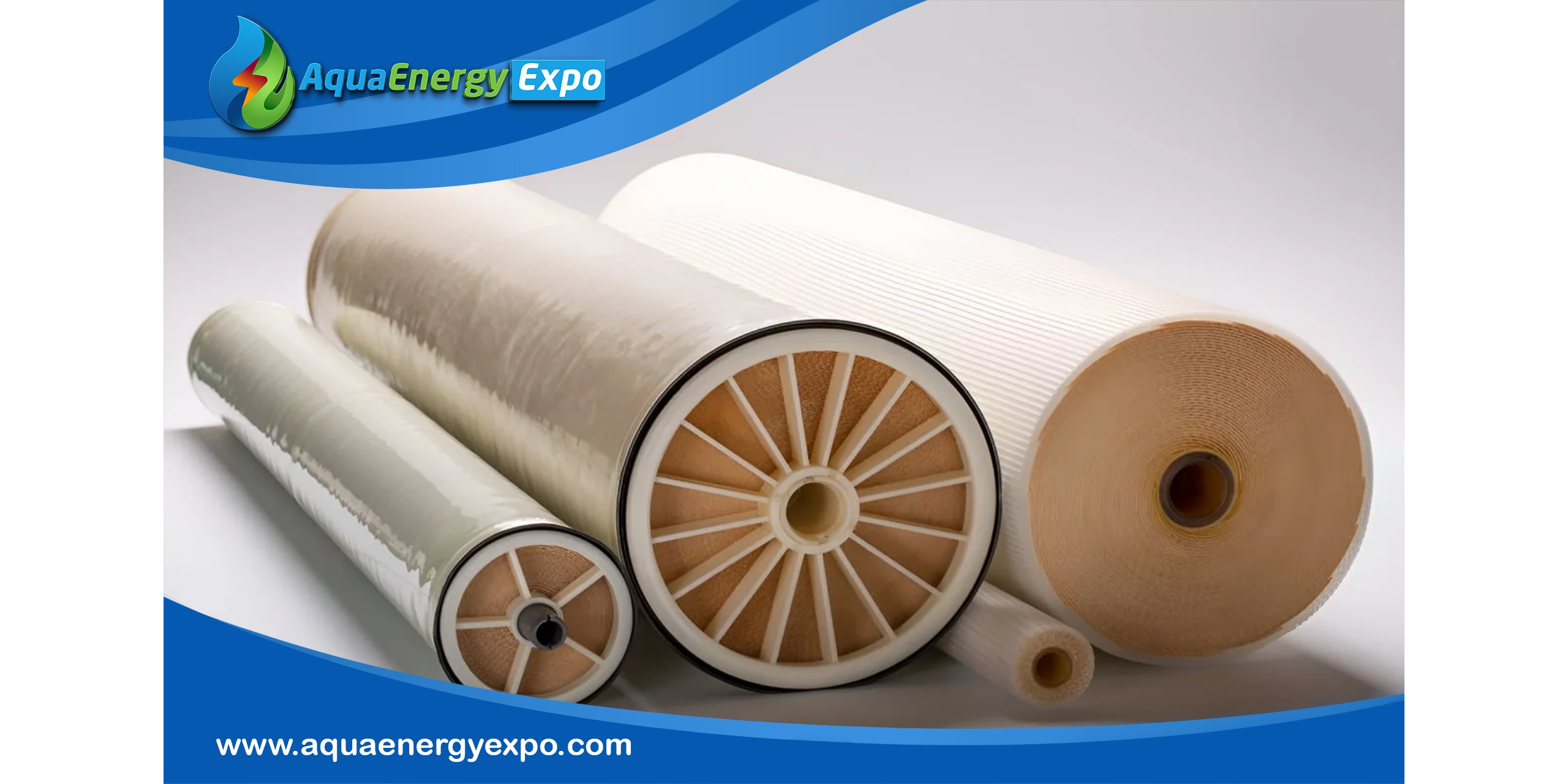

Spiral Wound Membranes:

– Made of flat sheet membranes wrapped around a central permeate collection tube.

– Provide high-quality permeate water.

– Often used in the food and beverage industries.

Tubular Membranes:

– Consist of tubes with porous walls, typically made of polymeric materials.

– Ideal for industrial applications with challenging feed streams.

Plate and Frame Membranes:

– Use flat sheet membranes stacked between support plates.

– Known for their durability and ability to handle high pressures.

Each type of ultrafiltration membrane has its strengths, and the choice depends on factors such as specific application, feed water quality, desired output, and operational considerations.

What Are the Benefits of Ultrafiltration?

Ultrafiltration offers numerous advantages in water treatment, making it an increasingly popular choice for municipal and industrial applications. Hollow fiber UF membranes provide a physical barrier to suspended solids and pathogens to consistently produce high-quality, low-turbidity, and low-SDI effluent.

– Versatile Membrane Options: Pressurized or immersed membranes can suit various site requirements.

– Greater Output: Increased efficiency in a smaller footprint, reducing capital and lifecycle costs.

– Consistent Quality: The physical UF barrier provides high-quality effluent, exceeding stringent regulatory requirements.

– Low Lifecycle Cost: Extended membrane life with low energy and chemical use optimizes costs.

These benefits make ultrafiltration an attractive option for various water treatment applications, from municipal water supplies to industrial process water.

What Does Ultrafiltration Remove?

Ultrafiltration is highly effective at removing a wide range of contaminants from water. Here’s a breakdown of what an ultrafiltration water filter can typically remove:

Particulate Matter:

– Suspended solids

– Colloids

– Turbidity

Microorganisms:

– Bacteria (99.99% removal)

– Protozoa (including Giardia and Cryptosporidium)

– Many viruses

Organic Compounds:

– High molecular weight organics

– Some humic substances

Inorganic Compounds:

– Some heavy metals when bound to organic matter or particles.

Other Contaminants:

– Algae

– Some parasites

While ultrafiltration is highly effective at removing many contaminants, it does not remove dissolved salts, organic molecules, or ions smaller than the pore size. Additional treatment methods like reverse osmosis or ion exchange may be necessary for these.

Maintenance of Ultrafiltration Systems

Ultrafiltration systems contain extremely fine membrane filters that require proper cleaning. The cleaning process depends on whether a UF system is being used to remove organic or inorganic contaminants, or both.

Cleaning Protocols

– Organic Contaminants: Use a low foam, medium alkaline detergent at 0.6% to 1% concentration for 40 to 60 minutes.

-Inorganic Contaminants: Treat with citric acid at a maximum concentration of 3.0% for 1 to 3 hours. Hydrochloric acid, oxalic, sulfuric, and nitric acid can also be used for cleaning.

Proper maintenance ensures the longevity and efficiency of the ultrafiltration system, allowing it to perform optimally over time.

Conclusion

Ultrafiltration meaning goes beyond filtration—it’s a high-efficiency, low-maintenance solution for producing clean, safe water in diverse applications. With smaller pores, lower energy use, and superior contaminant removal, UF outperforms traditional methods, making it a smart investment for industries and municipalities.Whether you need drinking water purification, industrial process water, or wastewater treatment, ultrafiltration membranes provide a reliable, cost-effective solution. By understanding how UF works and its benefits, you can make an informed decision for your water treatment needs.
