pH tester for drinking water is a scientific instrument that measures the hydrogen-ion activity in water-based solutions, indicating its acidity or alkalinity expressed as pH. The pH meter is considered an alkaline tester for water as it measures the difference in electrical potential between a pH electrode and a reference electrode, and so the pH meter is sometimes referred to as a “potentiometric pH meter”. The difference in electrical potential relates to the acidity or pH of the solution. Testing of pH via pH meters (pH-metry) is used in many applications ranging from laboratory experimentation to quality control.

Operational principle

Potentiometric pH meters translate the voltage between two electrodes into the appropriate pH value and display the result. They consist of a pair of electrodes, or a combination electrode, a basic electrical amplifier, and a display that is calibrated in pH units.
Typically, it has a combination electrode, a glass electrode, and a reference electrode. The electrodes, also known as probes, are placed inside the test solution.The antimony electrode, which is usually employed in harsh environments, or the quinhydrone electrode can also serve as the basis for pH meters.

Usually, a calomel or silver chloride electrode is needed on either side of the glass membrane reference electrode in order to precisely measure the potential difference between the two sides of the membrane. Measuring shifts in their respective sides’ potential is their goal.
The glass electrode has one integrated into it. The other could be included into a combination electrode or serve as a separate reference electrode that comes into contact with the test fluid via a porous plug. The voltage that results is the potential difference between the two sides of the glass membrane, which may be corrected for by a difference between the two reference electrodes. The glass electrode article has a decent figure and description.

Design of the electrodes

The crucial element is the electrodes’ design: Usually composed of glass, these structures resemble rods and include a bulb at the bottom that houses the sensor.
A glass bulb made especially to be selective to hydrogen-ion concentration is part of the glass electrode used to measure pH.
An electrochemical potential is created across the glass bulb when hydrogen ions in the test solution exchange for other positively charged ions when the bulb is submerged in the solution to be tested.
The electrical potential difference between the two electrodes produced during the test is detected by the electronic amplifier, which then transforms it to pH units. According to the Nernst equation, the electrochemical potential across the glass bulb has a linear relationship with pH.

Types of pH Meters

PH is measured for a variety of purposes, including large-scale food manufacturing facilities, environmental studies, and swimming pool testing at home. There are so many varieties of ph testers for drinking water available in market.

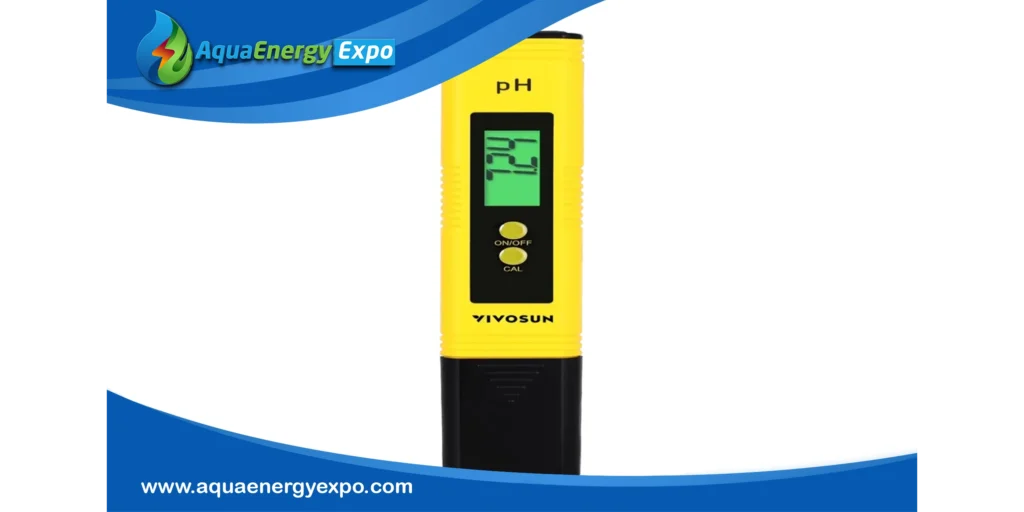

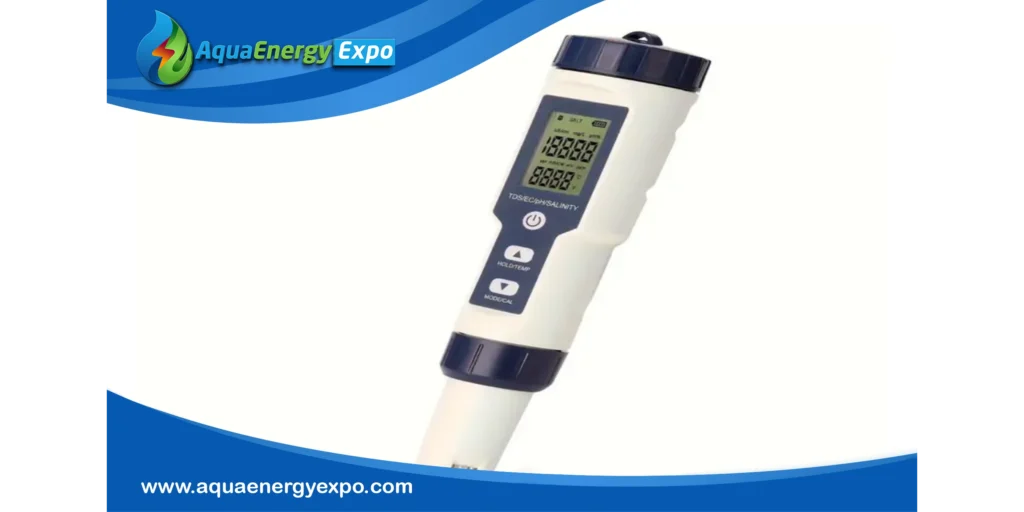

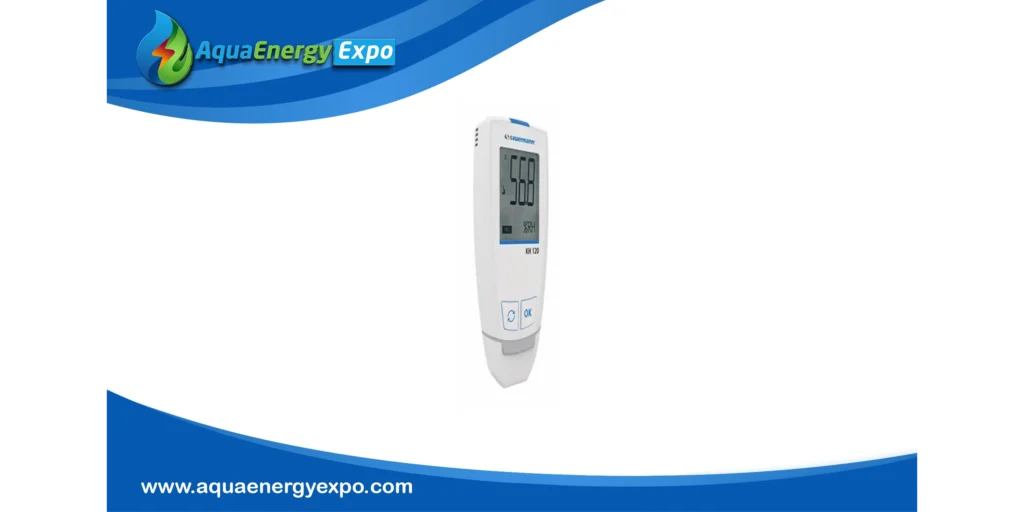

Pen Testers (Portable pH Meters)

Pen testers are portable devices that are often the least expensive kind of pH meter available. Because of their compact form, which combines a pH meter, display, and electrode into one unit, they are incredibly portable and convenient to use while on the road.

Pen testers are used extensively in the food production, hydroponics, pool or spa care, and construction sectors.

Handheld Meters (Pocket pH Testers)

Handheld meters usually have a more robust build and are a little bigger than pen testers. The electrode in this type is constructed independently of the meter. Depending on your pH measurement requirements, handheld meters often feature interchangeable electrodes. For medium-to-firm items, for instance, spear-tipped electrodes are employed.

The purpose of handheld meters is field use. Environmental officers employ them in water treatment, aquaculture, field research, and agriculture.

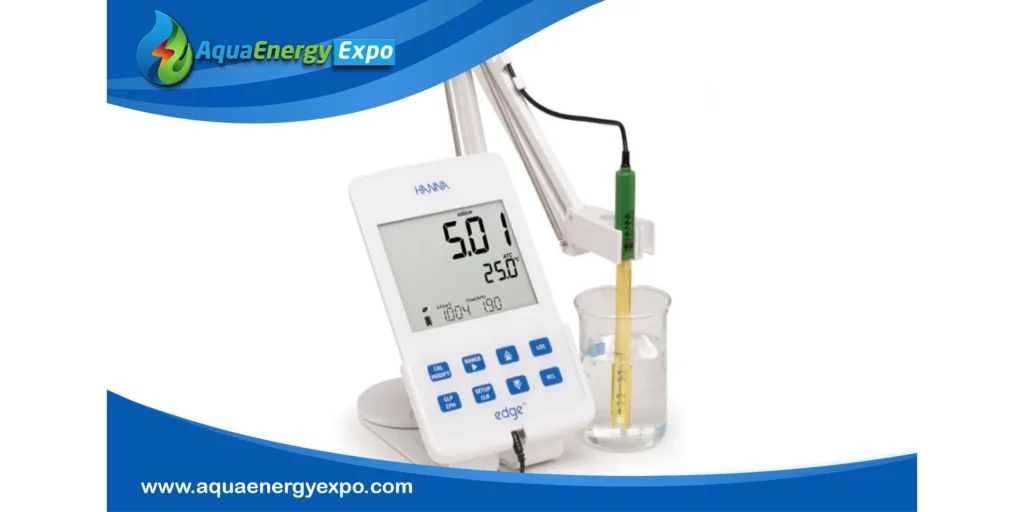

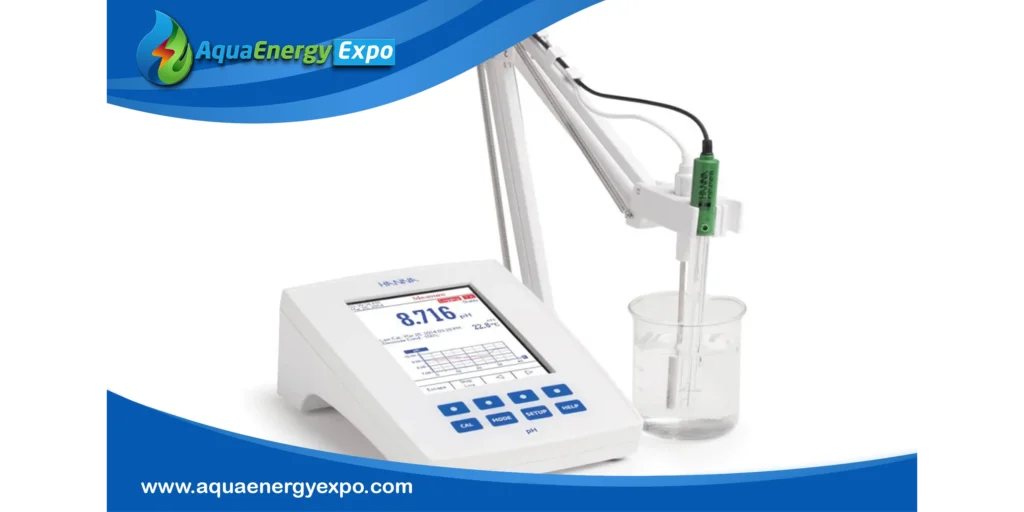

Benchtop pH Meters

Of the three varieties of pH meters, benchtop meters are the biggest. They can be hung on the wall or on a desk.They are ideal for professional and laboratory use since, on average, they have the best level of accuracy among all pH meter kinds.

Water testing facilities, environmental testing labs, quality assurance labs, and food processing facilities all frequently employ benchtop pH meters.

Considerations for Selecting a pH Meter

To make sure a pH meter fits your unique demands and requirements, a number of things should be taken into account. Here are some important things to think about:

Accuracy and Precision

The application will determine how precise and accurate your pH readings need to be. Rough estimates may be adequate for ordinary testing, but great accuracy and precision are necessary for vital scientific research or quality control procedures.

Measurement Range

Make sure the pH values you want to measure are within the pH meter’s measurement range. While alkaline or neutral solutions may be used in some applications, measuring acidic solutions may be necessary in others.

Calibration

Think about the pH meter’s calibration procedure. The majority of pH meters need to be calibrated on a regular basis using pH buffer solutions. Verify whether single-point or multi-point calibration is supported by the meter and how simple the calibration process is.

Temperature Compensation

Temperature compensation is essential for reliable results since pH measurements are temperature-sensitive, particularly in settings where temperature variations take place. To guarantee precise readings at a range of temperatures, look for pH meters with automatic temperature compensation (ATC).

Portability

Determine whether you need a benchtop, portable, or pocket-sized pH meter based on your intended application and mobility requirements. Benchtop models offer high accuracy but are stationary, while portable and pocket-sized meters provide flexibility for fieldwork and on-the-go testing.

Durability and Build Quality

Take into account the pH meter’s robustness and construction, particularly if it will be utilized in demanding or harsh settings. For long-lasting performance, look for meters with splash-proof or waterproof characteristics and a sturdy build.

Ease of Use

Choose a pH meter with a user-friendly interface and intuitive controls for easy operation. Features such as digital displays, one-touch calibration, and simple button layouts can enhance usability, especially for inexperienced users.

Additional Features

Examine the other features that the pH meter offers, such as the ability to log data, connectivity choices (such USB and Bluetooth), and compatibility with external devices (like electrodes and probes). These features can enhance functionality and versatility for specific applications.

Cost

Evaluate the cost of the pH meter relative to your budget and the features it offers. While high-end models may provide advanced functionality, more affordable options may suffice for basic pH testing needs.

Support and Warranty

Examine the manufacturer’s track record for warranty coverage and product support. To handle any problems or worries that might surface after purchasing, be sure the pH meter is supported by reputable customer care and warranty policies.

Conclusion

pH tester for drinking water is an essential tool for accurately measuring the acidity or alkalinity of water. With various types available, including portable pen testers and benchtop meters, users can select the appropriate device based on their specific needs. Key considerations such as accuracy, calibration, and durability play a crucial role in ensuring reliable results. Ultimately, investing in a quality pH meter enhances water quality management, making it vital for both personal and professional applications.
