Tank lining technology plays a crucial role in the storage and protection of liquids in various industries, including oil and gas, chemicals, water treatment, and food and beverage. The primary purpose of tank lining is to prevent corrosion, leakage, and contamination of the stored materials. This article delves into the various aspects of tank lining technology, including the types of coatings used, application methods, benefits, challenges, and advancements in the field.
Understanding Tank Lining
Tank lining refers to the application of protective coatings to the interior surfaces of storage tanks. These coatings serve multiple purposes, including:
– Corrosion Protection: Preventing rust and degradation of tank materials due to exposure to corrosive substances.
– Contamination Prevention: Ensuring that stored liquids remain uncontaminated by the tank material or external pollutants.
– Structural Integrity: Extending the lifespan of tanks by maintaining their structural integrity and preventing leaks.
Tank lining is essential across various sectors, as the failure of a tank can lead to significant financial losses and environmental hazards.
Types of Tank Lining Coatings
Several types of tank lining coatings are available, each designed for specific applications and environmental conditions. The choice of coating depends on factors such as the type of liquid stored, temperature, pressure, and exposure to chemicals. Here are some of the most common types of tank lining coatings:
1- Epoxy Coatings
Epoxy coatings are among the most widely used tank linings due to their excellent adhesion, chemical resistance, and durability. These coatings are formulated from epoxy resins, which provide a tough, impermeable barrier against corrosion and chemical attack.
Application: Epoxy coatings are suitable for various liquids, including water, petroleum products, and chemicals. They are commonly used in both above ground and underground storage tanks.
Advantages:
– High resistance to chemicals and solvents
– Excellent adhesion to metal surfaces
– Long-lasting and durable
2- Polyurethane Coatings
Polyurethane coatings are known for their flexibility, UV resistance, and aesthetic appeal. They are often used in applications where tanks are exposed to sunlight and harsh weather conditions.
Application: These coatings are suitable for both water and chemical storage tanks, particularly in environments where temperature fluctuations occur.
Advantages:
– Excellent resistance to UV light and weathering
– Good flexibility, allowing for expansion and contraction
– Aesthetic options available for visual appeal

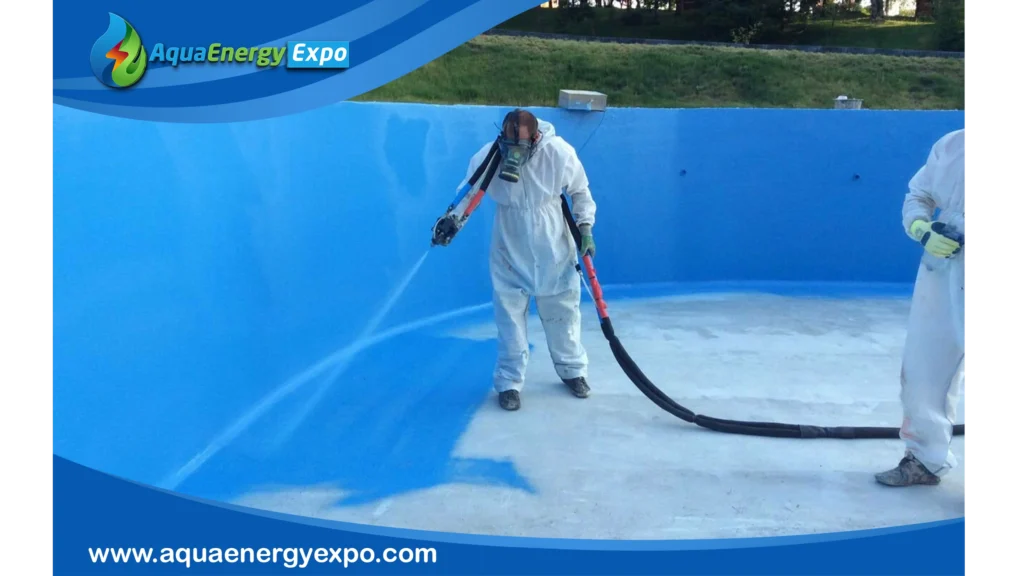

3- Polyurea Coatings
Polyurea coatings are fast-curing, high-performance coatings that provide superior protection against corrosion and abrasion. They are often used in applications requiring quick turnaround times due to their rapid curing properties.
Application: Polyurea is ideal for lining tanks that store aggressive chemicals or are subject to heavy wear and tear.
Advantages:
– Extremely fast curing time
– Exceptional chemical and abrasion resistance
– High elasticity and flexibility

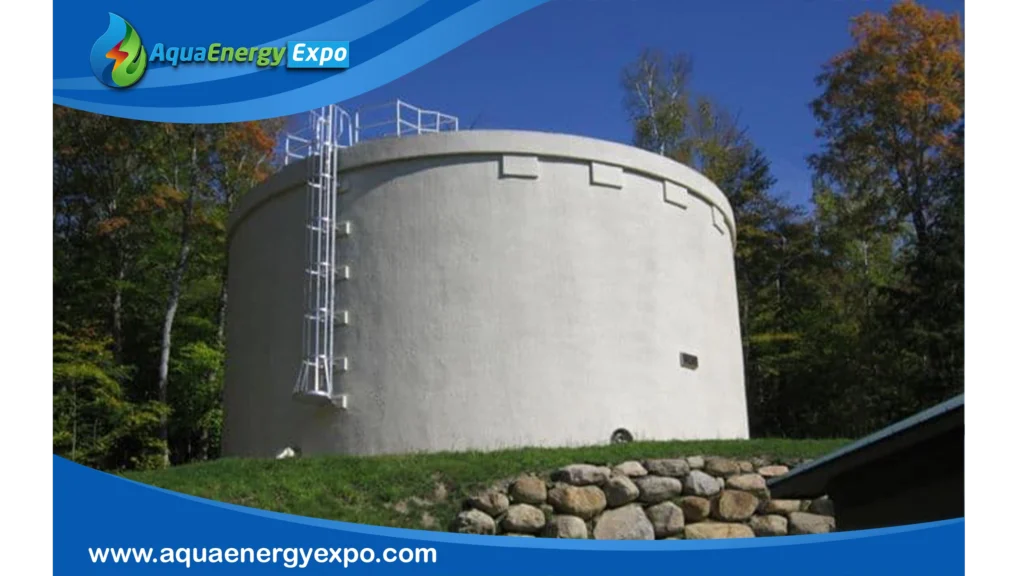

4- Cementitious Coatings
Cementitious coatings are made from a mixture of cement, aggregates, and additives designed to create a protective layer on tank interiors. These coatings are particularly effective in water and wastewater applications.
Application: Commonly used in potable water tanks, wastewater treatment facilities, and industrial applications where chemical resistance is not as critical.
Advantages:
– Inexpensive and readily available
– Good resistance to water and moisture
– Suitable for large surface areas
5- Glass-Fused-to-Steel Coatings

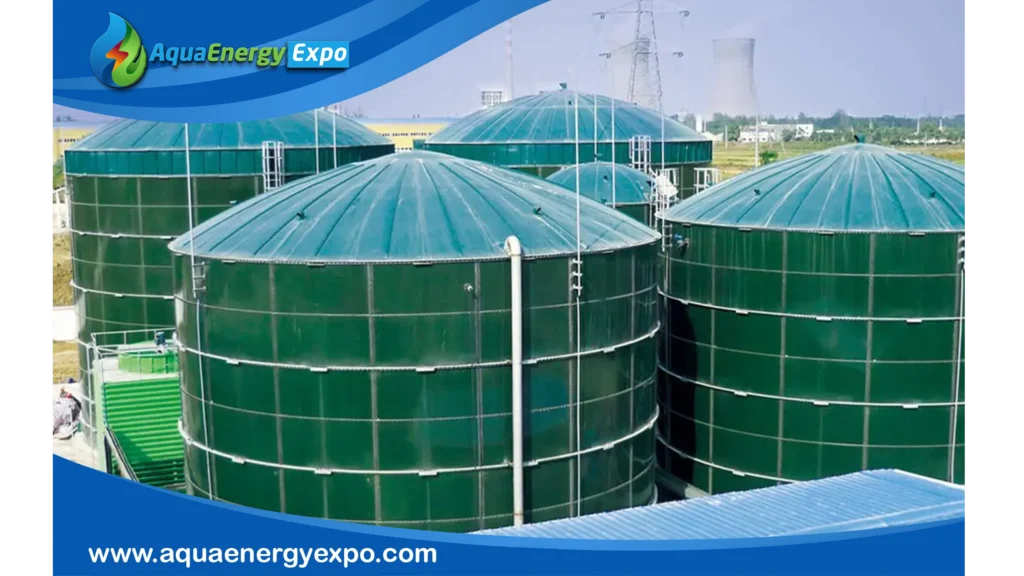

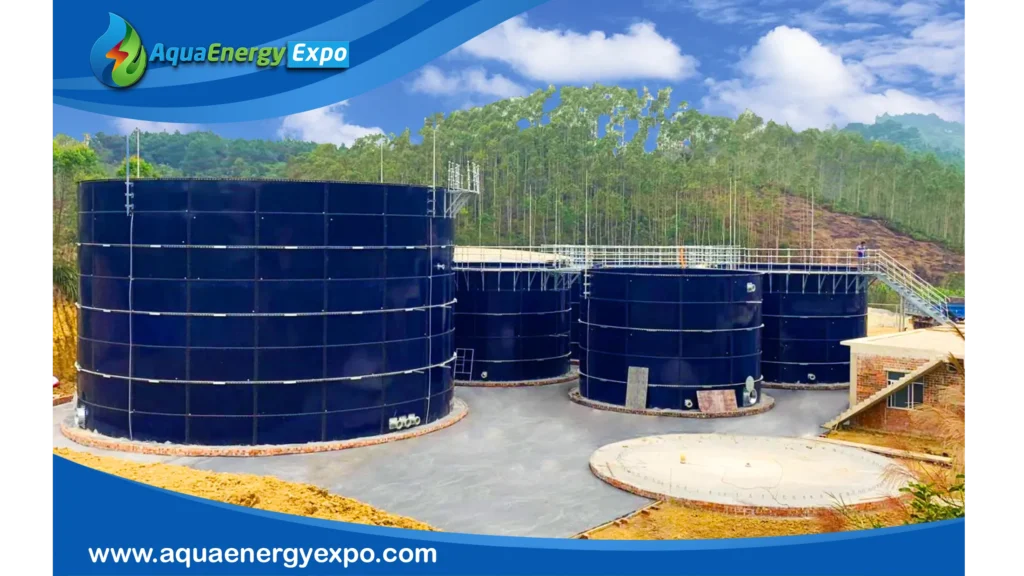

Glass-fused-to-steel (GFS) coatings involve fusing glass to steel at high temperatures, creating a smooth, non-porous surface. This technology is particularly beneficial for tanks storing potable water and food products.
Application: Ideal for water storage tanks, fire protection tanks, and tanks used in the food and beverage industry.
Advantages:
– Excellent corrosion resistance
– Non-toxic and safe for food and water storage
– Smooth surface prevents biofilm formation
Application Methods for Tank Lining
The application of tank lining coatings can vary based on the type of coating used and the specific requirements of the tank. Here are some common application methods:

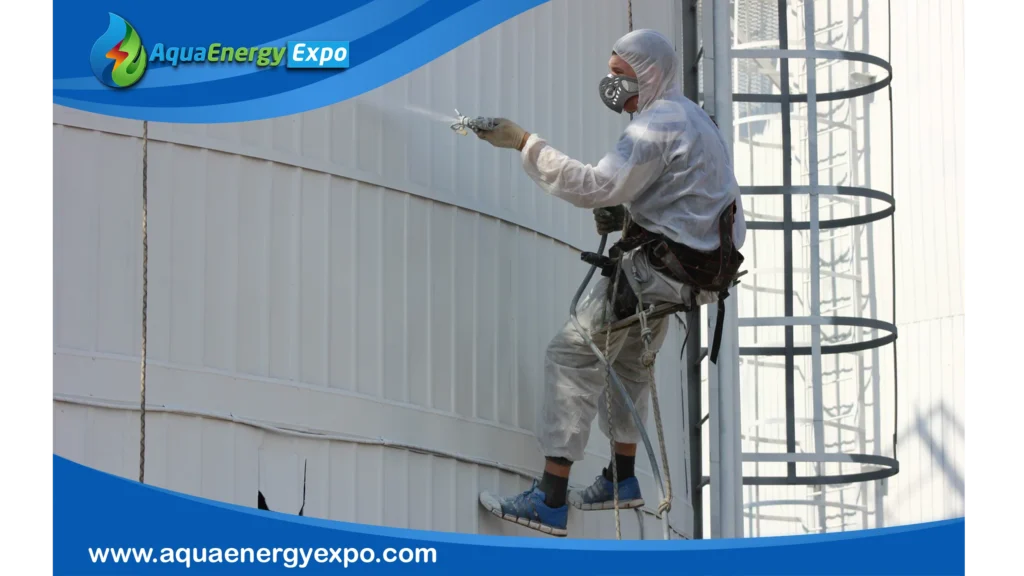

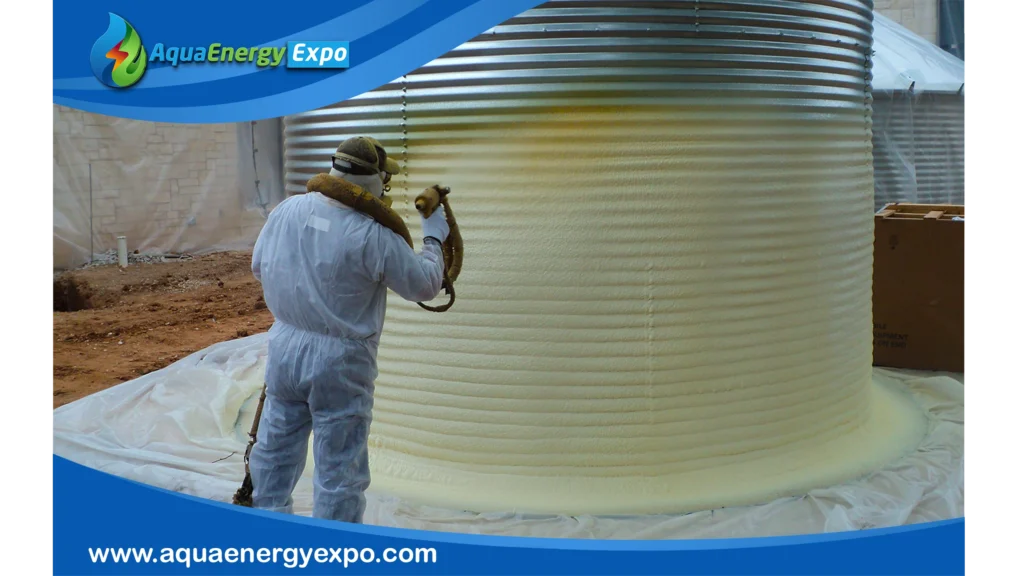

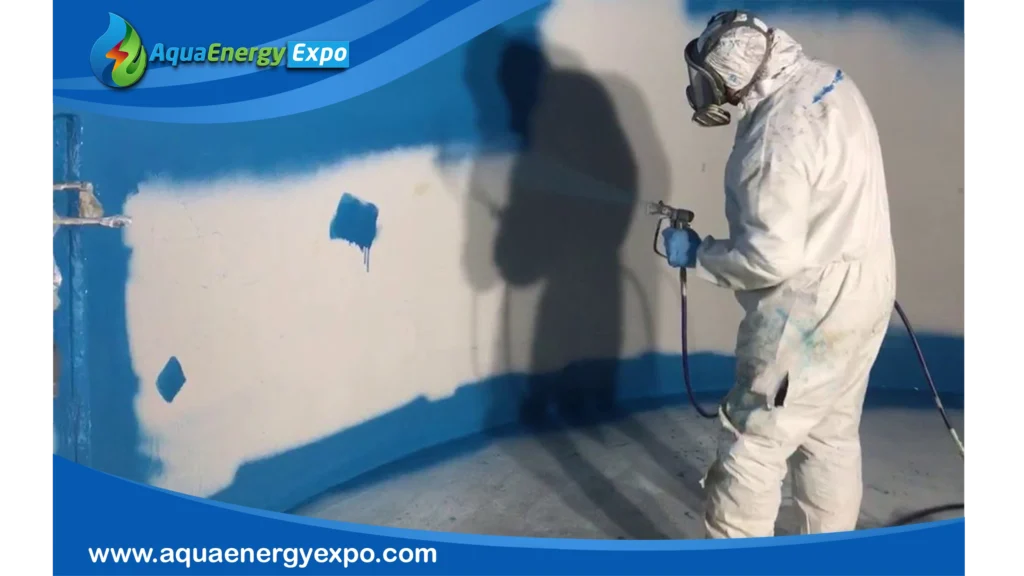

1- Spray Application
Spray application is one of the most common methods for applying tank linings, particularly for polyurea and polyurethane coatings. This method allows for even coverage and can reach difficult areas within the tank.
Process:
– Surface preparation is essential to ensure proper adhesion.
– The coating is mixed and sprayed onto the tank interior using specialized equipment.
– Multiple layers may be applied to achieve the desired thickness.

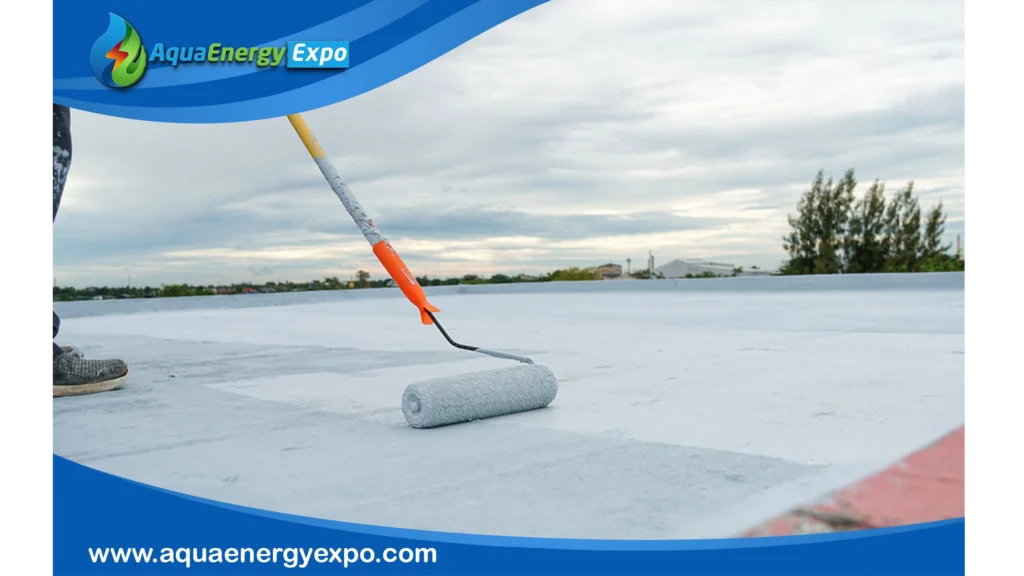

2- Brush and Roller Application
Brush and roller application methods are often used for epoxy and cementitious coatings. This method is suitable for smaller tanks or areas where precision is required.
Process:
– The surface is prepared by cleaning and priming if necessary.
– The coating is applied using brushes or rollers, ensuring even coverage.
– Care must be taken to avoid air bubbles and achieve a smooth finish.
3- Plural Component Systems
Plural component systems are often used for high-performance coatings, such as epoxy and polyurea. This method involves mixing two or more components on-site before application.
Process:
– The components are mixed in precise ratios using specialized equipment.
– The mixture is then applied using spray equipment, allowing for rapid curing.
Benefits of Tank Lining Technology
Implementing tank lining technology offers several benefits, including:
1- Enhanced Corrosion Resistance
One of the primary advantages of tank lining is enhanced corrosion resistance. Coatings protect the underlying tank material from corrosive substances, significantly extending the lifespan of the tank.
2- Reduced Maintenance Costs
By preventing corrosion and leakage, tank linings reduce the need for frequent maintenance and repairs. This can lead to significant cost savings over time, particularly for large storage facilities.
3- Improved Safety and Environmental Protection
Properly lined tanks minimize the risk of leaks and spills, protecting the environment and ensuring compliance with safety regulations. This is particularly crucial in industries such as oil and gas, where spills can have devastating consequences.
4- Contamination Prevention
Tank linings prevent contaminants from leaching into stored liquids, ensuring the quality and safety of the materials. This is especially important in food and beverage applications, where contamination can have serious health implications.
Challenges in Tank Lining Technology
Despite the numerous benefits, there are challenges associated with tank lining technology that must be addressed:
1- Surface Preparation
Proper surface preparation is critical to the success of any tank lining application. Contaminants such as rust, oil, and dirt can hinder adhesion and lead to premature coating failure. Therefore, thorough cleaning and surface profiling are essential steps in the process.
2- Selection of Coating
Choosing the right coating for a specific application can be challenging. Factors such as chemical compatibility, temperature, and environmental conditions must be carefully considered to ensure optimal performance.
3- Curing Time
Different coatings have varying curing times, which can affect project timelines. Fast-curing coatings, such as polyurea, may be ideal for quick turnarounds, but they require skilled applicators to ensure proper application.
4- Regulatory Compliance
Many industries are subject to strict regulations regarding the materials used in tank linings. Ensuring compliance with local, national, and international regulations can be a complex process that requires careful documentation and testing.
Advancements in Tank Lining Technology
Recent advancements in tank lining technology have led to the development of innovative coatings and application methods. Some notable trends include:
1- Smart Coatings
Smart coatings incorporate sensors that can detect changes in the coating’s integrity, providing real-time monitoring of the tank’s condition. This technology allows for proactive maintenance and early detection of potential issues.
2- Environmentally Friendly Coatings
There is a growing demand for environmentally friendly coatings that minimize the impact on the environment. Water-based coatings and those with low volatile organic compounds (VOCs) are becoming increasingly popular in the industry.
3- Nanotechnology
Nanotechnology is being explored in the development of advanced coatings that offer superior performance characteristics. These coatings can provide enhanced resistance to chemicals, abrasion, and UV light, further improving the longevity of tank linings.
4- Enhanced Adhesion Technologies
New adhesion technologies are being developed to improve the bond between coatings and tank surfaces. These advancements can help reduce the risk of delamination and extend the lifespan of the lining.
Conclusion
Tank lining technology is an essential aspect of maintaining the integrity and safety of storage tanks across various industries. With a wide range of coating options and application methods available, it is crucial for industry professionals to understand the benefits and challenges of each type of lining. By staying informed about advancements in tank lining technology, companies can make informed decisions that enhance the safety and efficiency of their operations.
