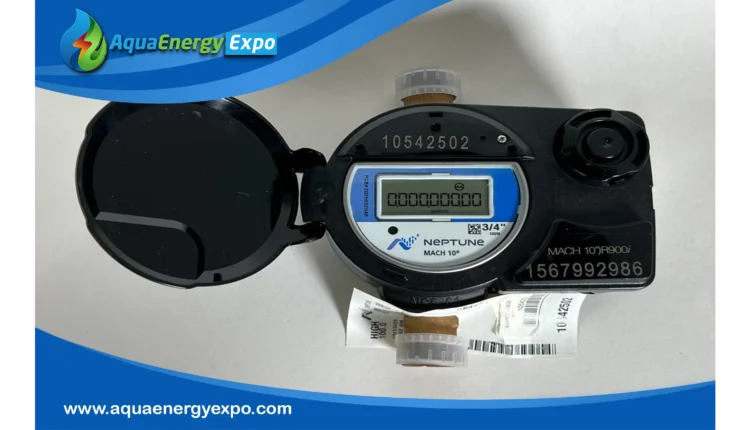

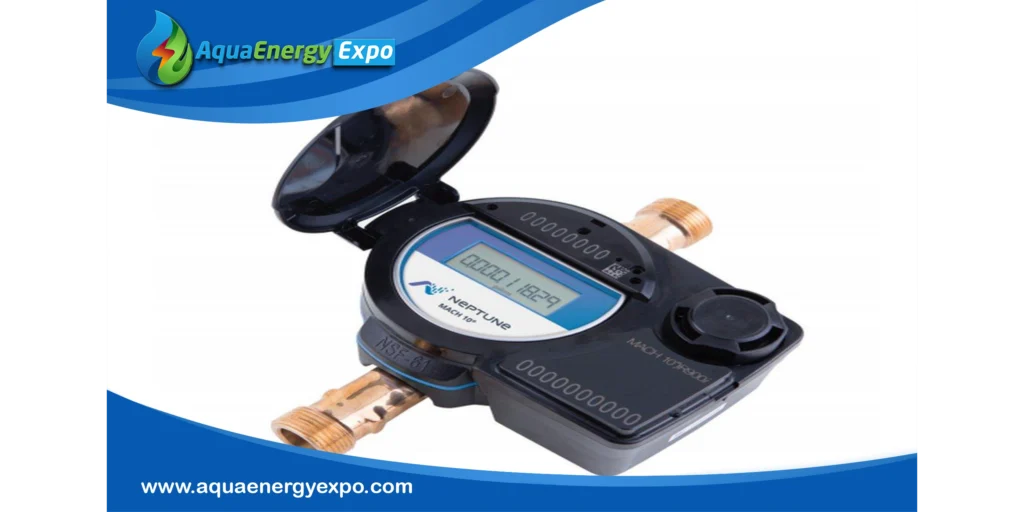

Using solid-state electronics and ultrasonic transit-time technology, the MACH 10 solid-state water meter is a major breakthrough in water measurement technology. This device is designed for domestic and light commercial uses, enclosed in a compact, weatherproof, and UV-resistant housing. In this post, we will cover the essential features, underlying technology, installation issues, and the advantages of the MACH 10 water meter.

The MACH 10 Water Meter’s Salient Features

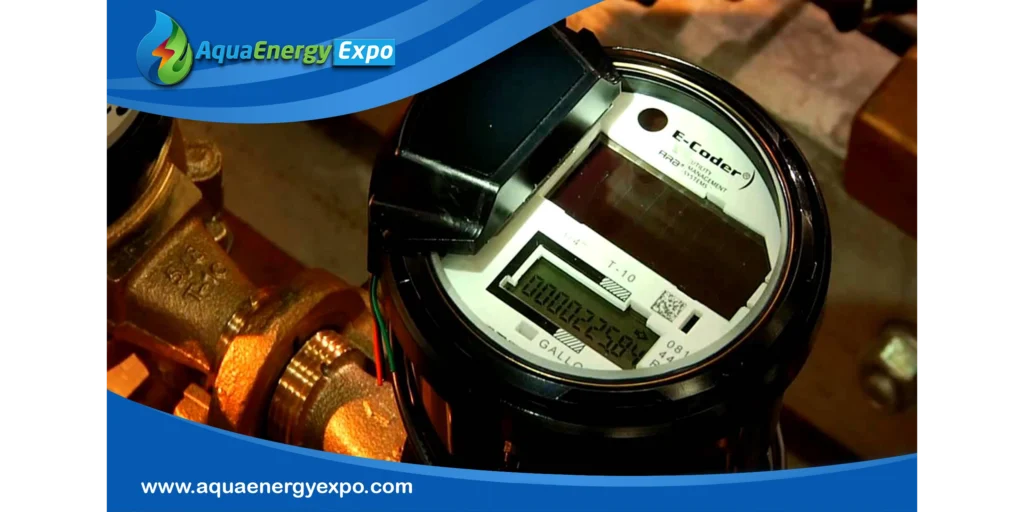

1. Neptune E-CoderPLUS Output

Compatible with the Neptune R900 and other Advanced Metering Infrastructure (AMI) and Automatic Meter Reading (AMR) systems, the MACH 10 offers a Neptune E-CoderPLUS output signal. With consumption statistics shown in up to nine digits, the MACH 10 meter’s integrated R900 radio makes it easier to transmit meter reading data.

2. Utilizing Ultrasonic Technology

The ultrasonic technology used by the MACH 10 has a number of advantageous characteristics, including:

The absence of moving parts guarantees durability and lowers the possibility of mechanical failure.

Long-term accuracy: Over time, the meter continues to provide accurate readings.

Error reduction: It reduces measurement mistakes brought about by suspended particles, sand, and pressure changes.

3.Enhanced Protection

Fully potted, the MACH 10’s electronics and batteries are shielded from moisture, grime, and other impurities. The meter can be installed in a range of settings thanks to this capability, including meter holes that might flood continuously.

Comprehending Ultrasonic Technology

– How Do Ultrasonic Water Meters Operate?

The velocity of water passing through an ultrasonic water meter is measured by means of high frequency sound waves. By comparing the transit times of the acoustic signals moving with and against the water’s flow, the meter determines the flow rate.

– Transit-Time Technology

The transit-time technique used by the MACH 10 is predicated on the idea that an acoustic signal moves more quickly with the flow than against it. Two transducers, which serve as both transmitters and receivers of sound waves, make up the meter. The flow rate has a direct relationship with the time gap between the upstream and downstream signals. The electronics of the meter then use complex algorithms to translate this velocity data into a volume readout.

Considerations for Installation and Application

– Installation Instructions

It is possible to install the MACH 10 in both vertical and horizontal pipe designs. Standard laying lengths make it simple to retrofit mechanical meters. The meter has a flow direction indication to help installers place it properly.

– Safety and Preliminary Checks

Before installation, it is crucial to conduct safety and preliminary checks:

– Inform the customer of your presence and request access to the water meter.

– Confirm the installation location matches the site work order.

– Record the ID numbers of the MACH 10 meters being installed, ensuring they match the site work order.

– Ensure the site is safe for both personnel and equipment.

– Meter Sizing and Selection

Both mechanical and electronic meters can be chosen using conventional sizing techniques. Take into account the requirements for maximum flow and maximum continuous flow rate. Because they don’t have any moving parts, electronic meters like the MACH 10 have the same requirements for maximum flow and maximum continuous flow as mechanical meters, which can temporarily handle flows higher than the maximum continuous rate.

– Flow Measurement Limitations

When the ultrasonic sensors are not completely wetted, a circumstance known as an empty pipe, the MACH 10 is unable to measure flow. In these situations, no measurement will take place and the meter will sound an alert.

– Water Temperature Considerations

The MACH 10 meter is calibrated to operate within a specific temperature range for optimal performance. It is designed to measure water temperatures between 33°F and 122°F (0.5°C and 50°C).

Innovative Benefits of the MACH 10

The MACH 10 family of meters from Neptune stands out in the market. Utilizing advanced ultrasonic technology, these meters deliver exceptional accuracy across various sizes, enhancing revenue generation and providing valuable operational insights that empower your customer service team. With guaranteed superior accuracy and extensive flow ranges throughout their lifespan, the MACH 10 meters are designed to meet the highest standards.

One of the key advantages of the MACH 10 is its speed, safety, and ease of installation. The design eliminates maintenance requirements, allowing your workforce to operate more efficiently and concentrate on other critical tasks.

– Residential Sizes

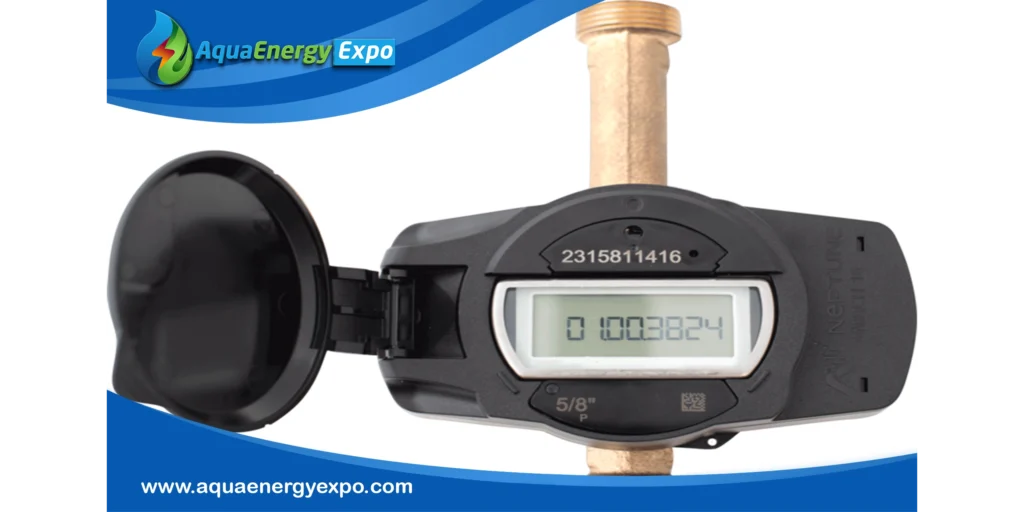

The MACH 10 ultrasonic water meter features a design without any moving parts, ensuring long-term reliability and precision for accurate billing of every drop of water delivered to customers. Its capability to detect extremely low flow rates can help identify potential leaks, minimizing water loss and preventing significant damage. Constructed with a robust, lead-free bronze main case, the meter is built to endure even the harshest service conditions, ensuring long-lasting performance. The residential MACH 10 water meter is available in sizes of 5/8”, ¾”, and 1”, now equipped with water temperature sensors and optional pressure monitoring features.

– Commercial and Industrial Sizes

Neptune’s commercial and industrial (C&I) MACH 10 meters incorporate all the benefits found in residential models, maximizing revenue for water utilities serving their most valuable customers. Notably, the C&I MACH 10 is the only ultrasonic meter in the industry that includes a factory-calibrated replaceable UME (Unitized Measuring Element). When the battery life ends, users can easily replace the unit without needing to remove the main case from service. The C&I MACH 10 is available in sizes ranging from 3″ to 12″, offering the highest measurement capabilities, and additional sizes of 1.5” and 2” are also available.

Conclusion

Neptune’s MACH 10 meters represent a significant advancement in water measurement technology. Their innovative features not only enhance accuracy and operational efficiency but also provide essential insights for both residential and commercial applications. By investing in MACH 10 meters, water utilities can ensure reliable service, reduce maintenance costs, and ultimately improve customer satisfaction, solidifying Neptune’s reputation as a leader in the industry.
