Wastewater treatment is a crucial process for protecting the environment and ensuring human health. With increasing industrialization and urbanization, the demand for effective wastewater treatment technologies has surged. Among the advanced technologies developed in recent years are Moving Bed Biofilm Reactor (MBBR), Membrane Bioreactor (MBR), and Fixed Bed Biofilm Reactor (FBBR). This article provides an in-depth comparison of these technologies, focusing on performance, cost, energy consumption, maintenance, space requirements, scalability.

Overview of Wastewater Treatment Technologies

Importance of Wastewater Treatment

Effective wastewater treatment is vital for preventing pollution, conserving water resources, and protecting ecosystems. The choice of treatment technology can significantly influence the quality of effluent and the overall sustainability of the treatment process. As global water scarcity issues intensify, innovative treatment technologies become increasingly essential.

Key Concepts in Wastewater Treatment

Wastewater treatment involves several processes, including physical, chemical, and biological methods, aimed at removing contaminants and producing effluent suitable for discharge or reuse. Understanding the principles behind these technologies helps in selecting the appropriate method for specific applications.

MBBR – Moving Bed Biofilm Reactor

Process Description

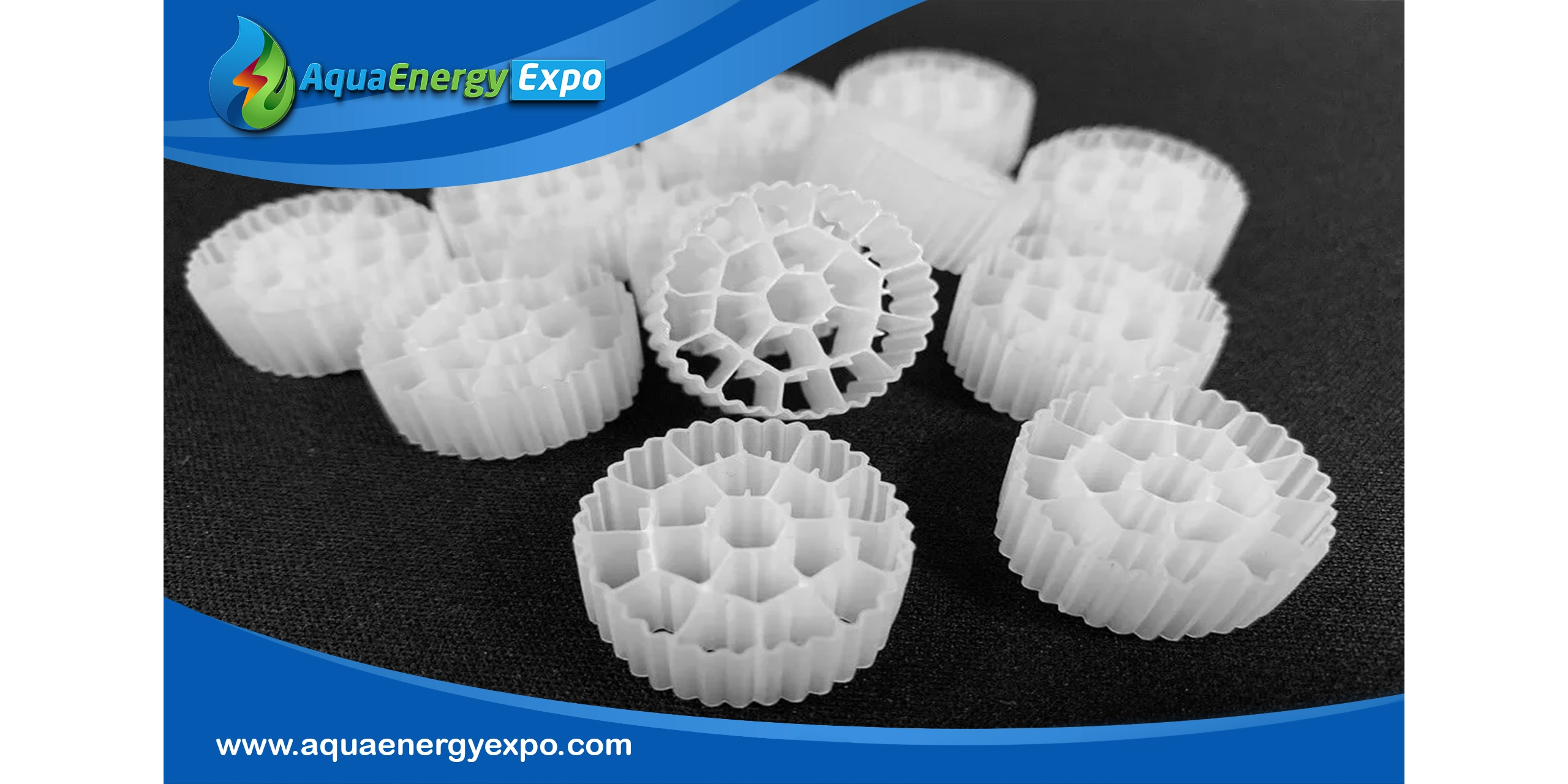

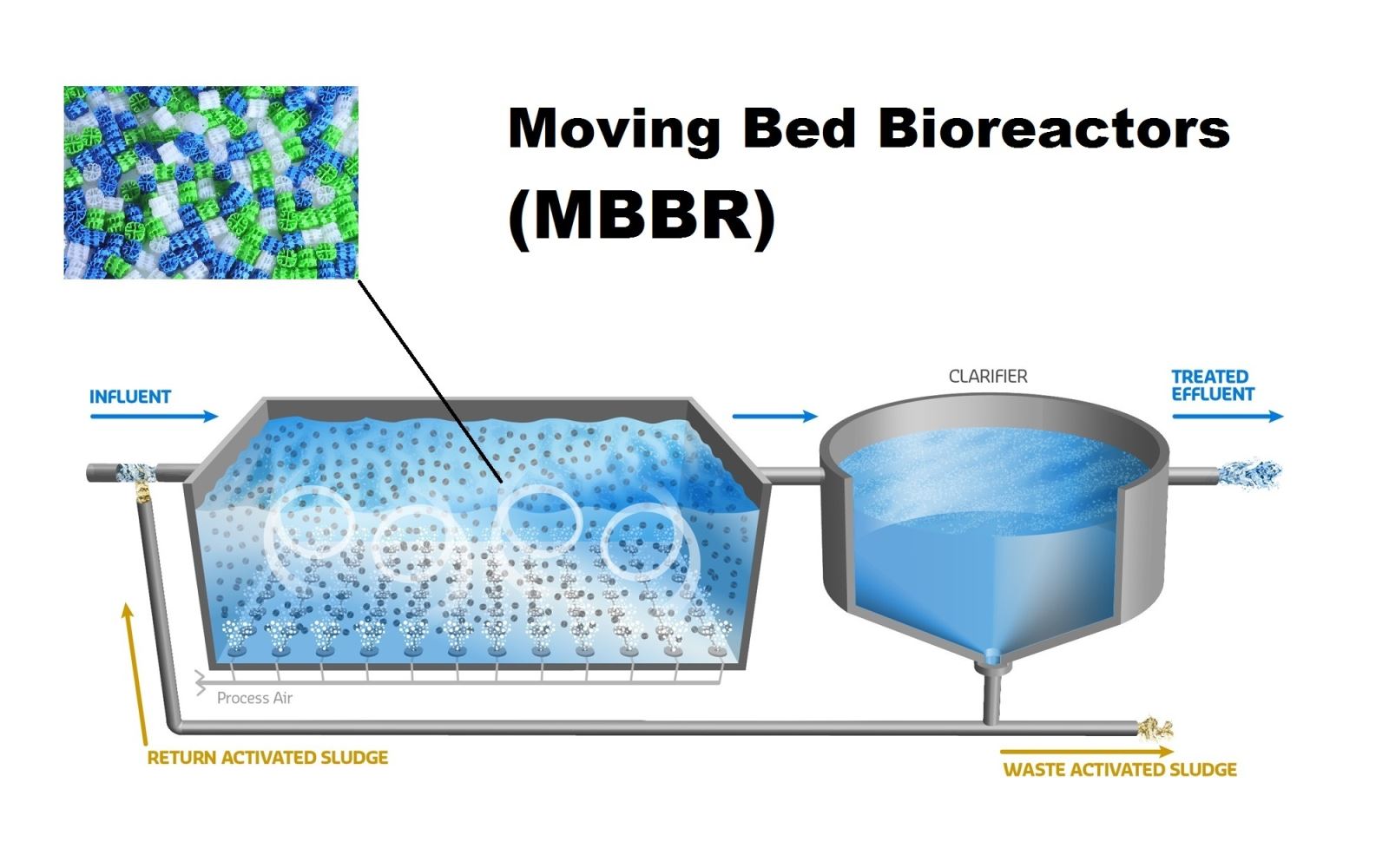

MBBR is a biological treatment process that utilizes plastic carriers to support biofilm growth. The carriers are continuously mixed and aerated within the reactor, creating optimal conditions for microorganisms to degrade pollutants in wastewater. The MBBR process involves several steps:

– Pre-treatment: This stage removes large particles and debris from the wastewater, ensuring that the subsequent processes operate effectively.

– Aeration: In this phase, air is introduced into the reactor to promote the growth of microorganisms and facilitate the consumption of organic matter.

– Settling: After aeration, the treated water is allowed to settle, separating it from the plastic carriers and suspended solids.

-Post-treatment: Depending on the characteristics of the wastewater and discharge requirements, this stage may include disinfection or nutrient removal.

Advantages and Disadvantages of MBBR

Advantages:

– Compact Design: The MBBR system’s design allows for efficient use of space, making it suitable for facilities with limited available area.

– High Treatment Efficiency: MBBR systems can achieve high levels of pollutant removal, including organic matter, nitrogen, and phosphorus.

– Low Sludge Production: Due to the biofilm-based process, MBBR systems generate less sludge compared to traditional activated sludge systems.

Disadvantages:

– Potential for Carrier Fouling: Over time, the plastic carriers may become fouled with excessive biofilm growth, reducing treatment efficiency and requiring periodic cleaning or replacement.

-Limited Control Over Biofilm Thickness: Maintaining optimal biofilm thickness can be challenging in MBBR systems, as the carriers are continuously mixed within the reactor.

Applications

MBBR is versatile, with applications in various industries, including:

Pulp and Paper Manufacturing: Effective in treating large volumes of contaminated wastewater.
Chemical Manufacturing: Suitable for treating high organic loadings.
Textile Factories: Efficient in removing dyes and pollutants.
Dairy Processing: Excellent for managing high biochemical oxygen demand (BOD) wastewater.
Beverage Manufacturing: Capable of handling high water treatment demands.

MBR – Membrane Bioreactor

Process Description

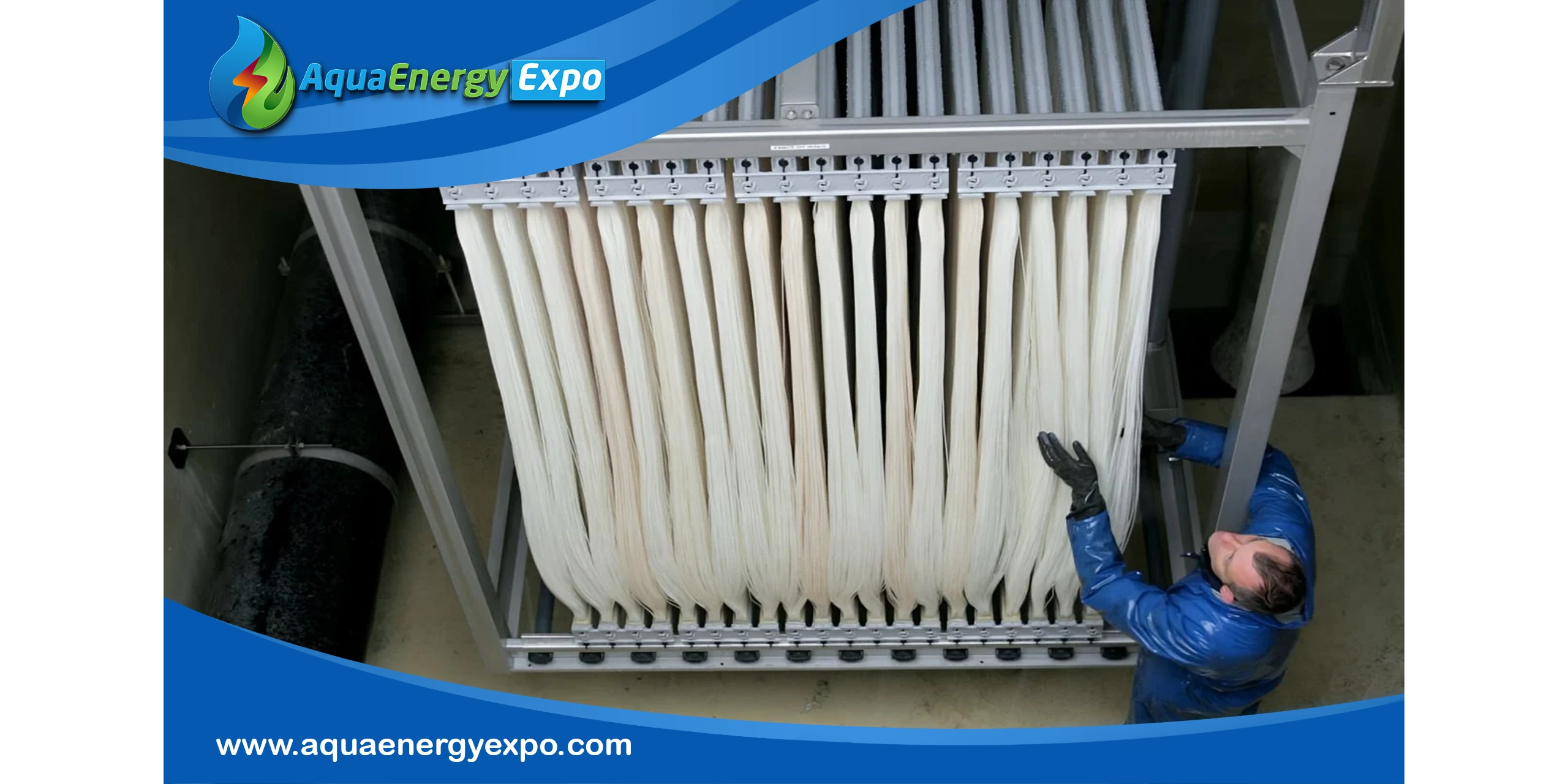

MBR combines biological treatment with membrane filtration, producing high-quality effluent suitable for reuse. The MBR process consists of:

– Pre-treatment: Removal of large particles and debris to protect the membranes.

– Biological Treatment: Microorganisms consume organic matter and nutrients like nitrogen and phosphorus.

–Membrane Filtration: This step separates treated water from biomass and suspended solids, ensuring superior effluent quality.

– Post-treatment: May involve disinfection or additional filtration based on wastewater characteristics.

MBR Advantages and Disadvantages

Advantages:

– Excellent Effluent Quality: MBR systems produce high-quality effluent with low levels of suspended solids, organic matter, and nutrients, making it suitable for reuse applications.

-Reduced Footprint: The integration of biological treatment and membrane filtration in a single unit allows MBR systems to occupy less space compared to traditional systems.

– Lower Sludge Production: Similar to MBBR, MBR systems generate less sludge compared to activated sludge systems.

Disadvantages:

– High Energy Consumption: The energy-intensive membrane filtration process results in higher energy consumption compared to other treatment technologies.

– Membrane Fouling: Over time, membranes can become fouled, reducing filtration efficiency and requiring periodic cleaning or replacement.

– High Capital and Operational Costs: The use of membrane technology and the need for regular maintenance contribute to the high capital and operational costs associated with MBR systems.

Applications

MBR technology is widely used in:

Municipal Wastewater Treatment: Ideal for recycling water in limited spaces.
Industrial Wastewater Treatment: Handles high organic loadings and complex waste streams.
Landfill Leachate Treatment: Effectively treats leachates with high organic and inorganic compounds.

FBBR – Fixed Bed Biofilm Reactor

Process Description

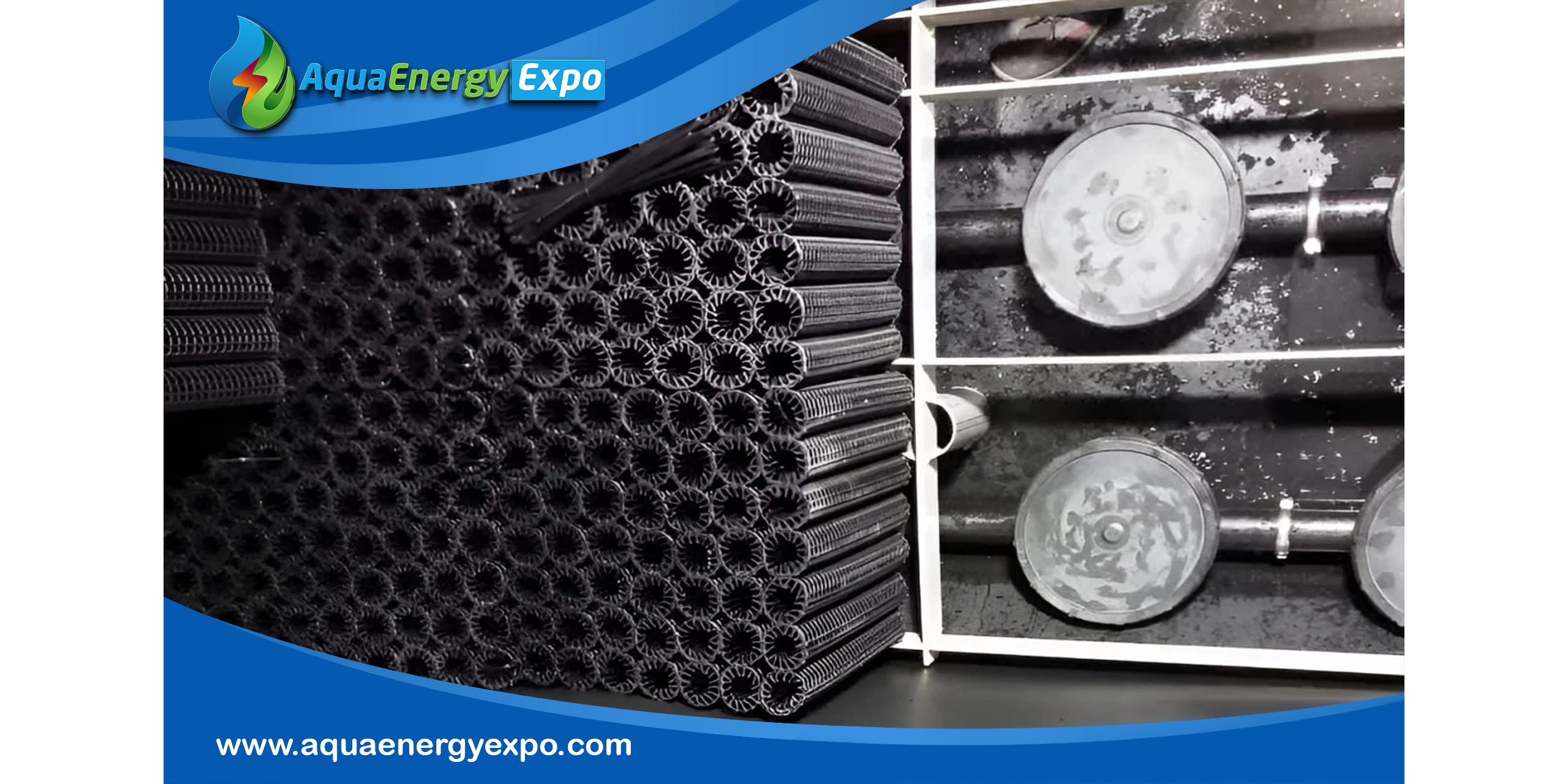

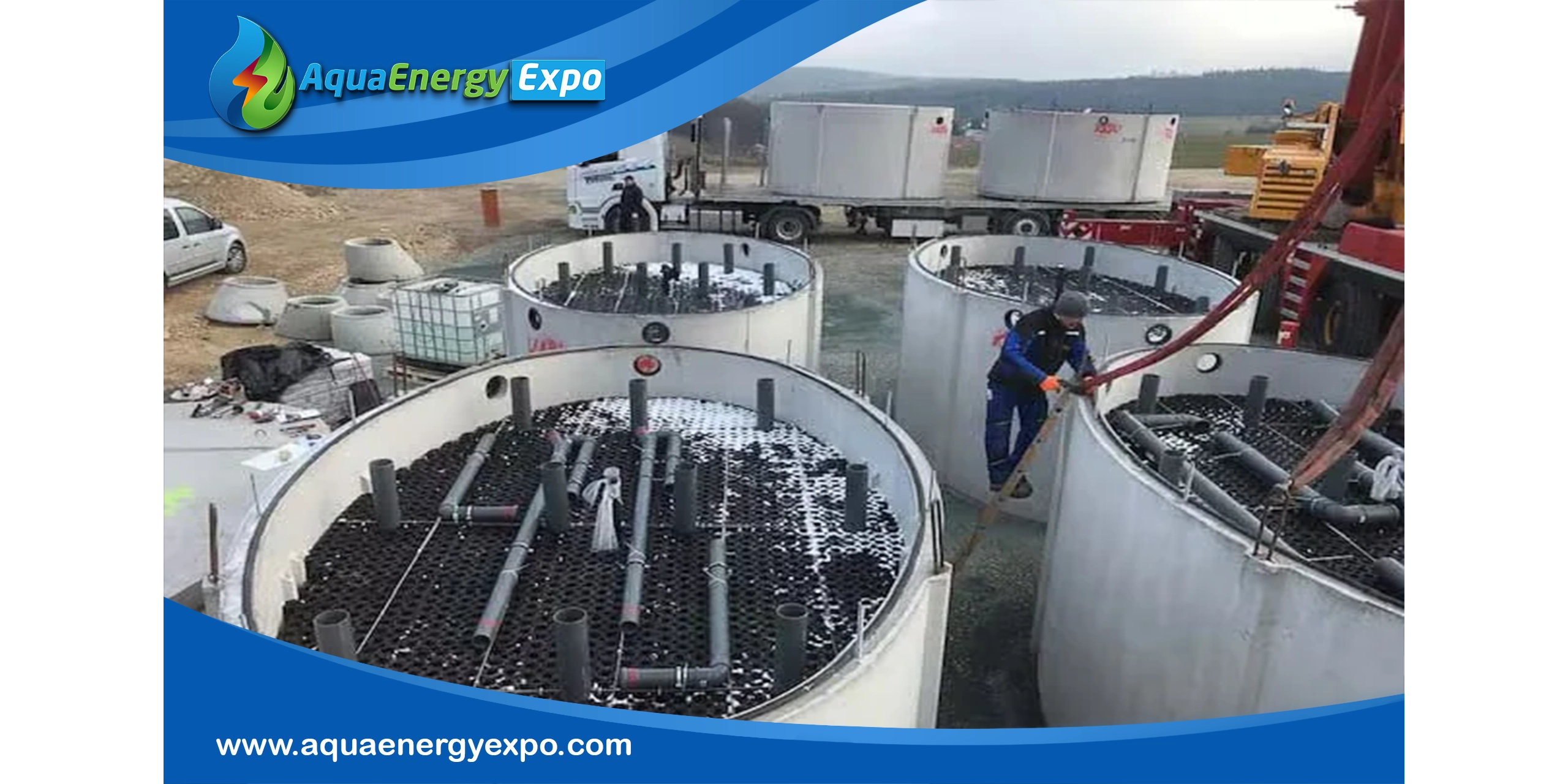

FBBR is a biological treatment process where biofilm grows on fixed carriers in a packed bed configuration. The process consists of:

– Pre-treatment: Removal of large particles and debris.

– Aeration: Supplies oxygen to the biofilm, promoting microbial growth.

– Settling: Separates treated water from suspended solids.

– Post-treatment: Varies based on wastewater characteristics and discharge requirements.

FBBR Advantages and Disadvantages

Advantages:

– High Treatment Efficiency: FBBR systems can achieve high levels of pollutant removal, including organic matter, nitrogen, and phosphorus.

– Stability: The fixed nature of the carriers provides more stable operation and consistent performance compared to MBBR systems.

– Lower Energy Consumption: Fixed carriers require less energy for mixing and aeration compared to MBBR systems.

Disadvantages:

– Potential for Carrier Fouling: Similar to MBBR, the carriers in FBBR systems may become fouled with excessive biofilm growth, which can reduce treatment efficiency.

– Larger Footprint than MBR: Although FBBR systems have a smaller footprint than MBBR systems, they still require more space than MBR systems.

Applications

FBBR systems are applicable in:

Municipal Wastewater Treatment: Efficient solutions for urban sewage.
Industrial Effluent Treatment: Handles complex industrial waste.
Decentralized Wastewater Treatment: Suitable for rural areas lacking infrastructure.
Upgrading Existing Treatment Plants: Enhances capacity and effluent quality.

MBBR vs. MBR vs. FBBR Comparison

Effluent Water Quality

MBRs generally show superior BOD removal compared to MBBRs and FBBRs. The fine membranes used in MBRs can effectively hold back pathogens, resulting in better overall effluent quality.

Resistance to Influent Peaks and Grease Leaks

MBRs are sensitive to fluctuations in influent quality, with grease leaks potentially causing membrane clogging. MBBRs are less sensitive but still face risks of carrier clogging. FBBRs are robust, handling varying influent values and grease leaks effectively.

Difficulty Level of Operation

MBRs require careful monitoring and maintenance, including backwashing of membranes. This complexity demands higher operational qualifications. MBBRs and FBBRs are generally easier to operate, with FBBRs being particularly user-friendly.

Required Space

Due to higher mixed liquor suspended solids (MLSS) levels, MBRs require less space for equivalent BOD removal compared to MBBRs and FBBRs, making them ideal for urban settings with space constraints.

Energy Consumption

MBRs have high energy demands due to membrane backwashing and fouling prevention. FBBRs, with their efficient oxygen supply directly beneath the fill media, require less energy than MBBRs.

Overall Cost

While installation costs for all three systems are comparable, MBRs tend to be more expensive over time due to higher operational and maintenance costs.

Scalability

FBBR systems offer the highest scalability among the three technologies due to their modular design and ease of expansion. MBR systems also have moderate to high scalability, whereas MBBR systems offer moderate scalability.

Future Directions

As the global demand for efficient and environmentally friendly wastewater treatment technologies continues to grow, further research and development efforts are required to improve the performance, cost-effectiveness, and environmental impact of these systems. Some potential research directions include:

Advanced Materials for Carriers

Developing new materials can enhance biofilm attachment and reduce fouling.

Optimization of Process Parameters

Researching optimal aeration, mixing, and retention times can improve system performance.

Integration with Resource Recovery Technologies

Combining wastewater treatment with resource recovery can enhance sustainability.

Hybrid Systems

Integrating MBBR, MBR, and FBBR technologies can address specific challenges and improve performance.

Application of Advanced Monitoring and Modeling Techniques

Utilizing online sensors and predictive models can optimize system design and operation.

Conclusion

In conclusion, MBBR, MBR, and FBBR technologies each offer unique advantages and disadvantages for wastewater treatment. MBRs excel in producing high-quality effluent but come with higher costs and complexity. MBBRs and FBBRs provide robust and forgiving designs, making them suitable for various industrial applications. Continued research and development will further enhance these technologies, addressing the challenges of water scarcity and environmental protection.
