Selecting the Right hydro jetting nozzles types is crucial for effective sewer cleaning, ensuring optimal performance and efficiency in removing blockages and maintaining the integrity of drainage systems.

What are hydro jetting nozzles?

Specialized instruments called hydro jetting nozzles are made for high-pressure water cleaning systems that are employed in sewer cleaning procedures. By sending high-pressure water streams into sewer pipes, these nozzles which are attached to water jetting machines break down obstructions, clear debris, and clean the pipe walls.

Significance of hydro jetting nozzles

For sewer systems to be maintained and clogs or backups to be avoided, hydro jetting nozzles are necessary. They typically:

Eliminate Obstacles: Successfully remove difficult obstacles such as debris, sludge, grease, and roots.
Maintain Sewer Flow: By eliminating silt and guaranteeing a smooth wastewater flow, backups and overflows can be avoided.
Restore the diameter of the sewer pipe and clean the pipe walls: by removing any accumulated deposits.
Environmental Safety: Reduce the negative effects on the environment by using a chemical-free cleaner for sewers.

Hydro jetting nozzles types

For drain unblocking, radial nozzles provide the most traction power, and rotating jetting nozzles provide a 360° wide reach for comprehensive cleaning. Speciality nozzles remove soap, grease, and urine scale from drains, while chains or wires manage more challenging tasks like descaling concrete, cement, or lime.

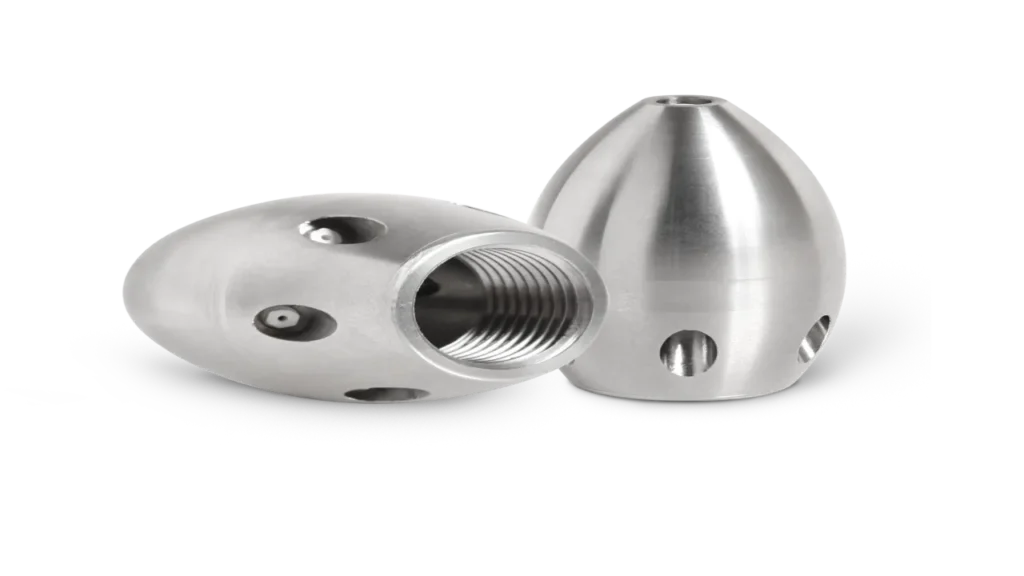

Flushing + penetrating jetting nozzles

Flushing or penetrating nozzles, also referred to as “fixed” nozzles, come in “open” or “blind” configurations with forward and rear or rear-only jets that are drilled to fit the jetter’s pressure and flow. Penetrating nozzles have narrower rear jets to help propel the nozzle down the pipe, while flushing nozzles have wider rear jets to help remove debris. The forward jets and a broad range of specialized nozzle body shapes are made to clear common obstructions and blockages in sewers and drains.

Standard nozzles

Standard, inexpensive nozzles are frequently employed in exploratory settings. They can be set up as “blind” for flushing tasks only or “open” for penetration and flushing.

Types: Standard, Button, High Efficiency

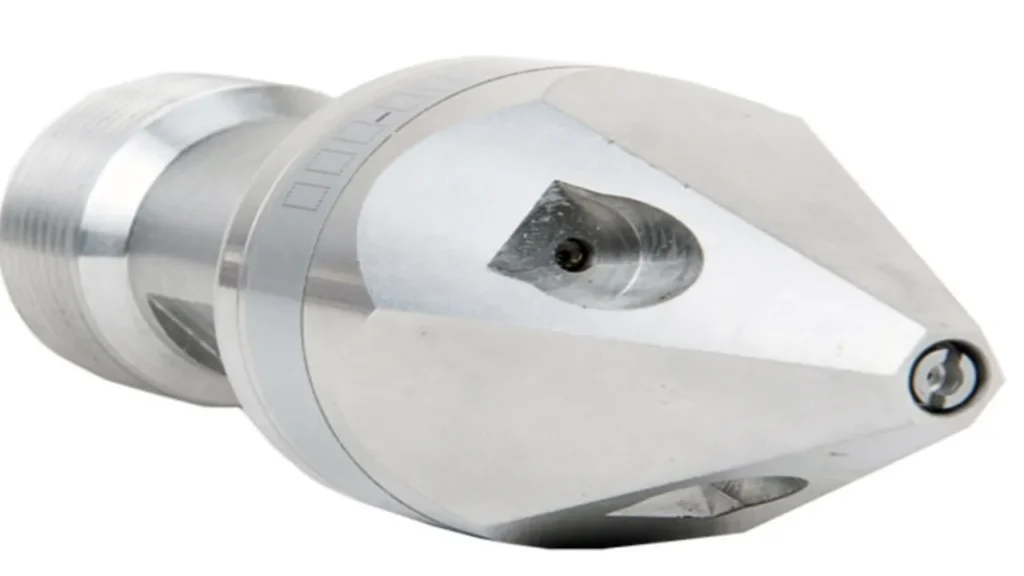

Unblocking nozzles

Equipped with strong forward jets and heads that are shaped specifically to remove range deposits from sewers and drains. To move the nozzle along the line more quickly, some are made with improved traction and propulsion in mind.

Types: Chisel Point, Rocket, Rotary Jet

Clearing nozzles

Bomb Jet nozzles are perfect for flushing materials from the pipe walls because of their strong rear jets. To remove silt deposits, plough jets, which are flat in shape, are positioned in the pipe’s bottom.

Types: Bomb Jets, Plough Jets

Rotating nozzles

Nozzles with a rotating head and several jets that spray in all directions are among the most efficient equipment on the market. This makes it possible to thoroughly clean and clear the drain. These nozzles are frequently used to remove even the most difficult obstructions and are regarded as the greatest choice for multipurpose drain cleaning. Additionally, because they can be very successful in preventing future blockages from forming, they are also commonly used in maintenance contracts.

Multi-purpose nozzles

Rotating nozzles are popular for a variety of difficult drain cleaning and clearing jobs because they provide all-around cleaning. Usually, they consist of three parts: a cleaning head, a drive, and a propulsion unit. Controlled rotation keeps the nozzle centered in the pipe and provides the best wall-to-wall cleaning power. 3D fluid mechanics is used in the design of the newest rotating nozzles to maximize propulsion and minimize water consumption. These nozzles made of hardened steel also have longer lifespans.

Types: Warthog Nozzles, USB Primus

Specialist nozzles

Since specialized nozzles can be used for a variety of tasks, they are a vital tool for drain cleaning professionals. These particular nozzles are made to specifically address some of the most difficult deposits and obstructions that can develop in a drain. The most popular applications for specialized nozzles are root cutting, which removes tree roots that can clog pipes and cause damage, desilting, which removes silt and sediment, and cleaning the walls of drains of hardened deposits.

Selecting the Right Nozzle

Making the correct nozzle choice is essential to guaranteeing the jetting system’s effectiveness, security, and durability. Since the nozzle is where the water and the obstruction come into contact, selecting the appropriate nozzle is crucial to clearing the obstruction and thoroughly cleaning the pipes. The hose’s length and diameter, the type of fluid or chemical being used, and the pressure and flow of the jetting equipment will all be taken into consideration when choosing a nozzle. This will help to increase overall work efficiency.

Maintaining hydro jetting nozzles

Maintaining your jet nozzle is essential for optimal performance and longevity of your equipment.

Inspect Regularly

Taking routine inspections of your nozzle is crucial for its dependable operation. Identifying obstructions, wear, and damage early on can prevent malfunctions and ensure effectiveness, ensuring quick problem-solving and efficient use.

Clear Obstructions

Steer clear of abrasive tools and use soft, smooth tools to remove blockages in nozzles, ensuring the orifice’s functionality is preserved without causing further damage.

Reinstall with Anti-Seize Compound

After any obstructions have been successfully removed, carefully replace the insert in the nozzle. It is advised to use an anti-seize compound when reinstalling because it facilitates future removal. This preventative action guarantees that the insert can be readily removed when required without resulting in damage or issues.

Alternative Cleaning Method

An alternative method involves pushing debris back into the nozzle, but it’s crucial to thoroughly flush it out to prevent further complications.

Check for RPM Increase

Promptly addressing potential issues with engine RPM can prevent further complications and ensure optimal performance by detecting worn-out or damaged inserts.

Lubrication (if necessary)

Recommendations to prevent potential damage to rotating nozzles are crucial, as they require proper lubrication to ensure proper functioning and prevent potential damage.

Storage

Storing tools properly is essential for proper maintenance, ensuring they are stored in a clean, dry environment to prevent dirt and debris from entering the nozzles.

Use Skids, Centralizers, and Extensions Safely

Utilize proofers as per safety requirements to ensure optimal nozzle performance and minimize potential accidents or misalignments within the piping system.

Conclusion

Understanding the various hydro jetting nozzles types is essential for effective drain cleaning and maintenance. Each nozzle type serves a specific purpose, from clearing tough blockages to maintaining optimal sewer flow. By selecting the right nozzle for the job, professionals can enhance efficiency, reduce environmental impact, and ensure the longevity of sewer systems. Regular maintenance and proper use of these nozzles will further contribute to their effectiveness in tackling challenging drainage issues.
