Water filtration systems are essential for maintaining the safety and quality of water in a variety of contexts, from industrial operations to municipal water supply. These systems protect the public’s health and improve the effectiveness of subsequent treatment procedures by assisting in the removal of particulate matter, bacteria, and other contaminants.

Many strainers types are used in these systems to offer preliminary filtering by removing big particles and debris that could otherwise impair the functionality of more sensitive filtration membranes and apparatus.

What are strainers?

In piping systems, a strainer is a tool used to keep contaminants and other objects out of the liquid flow. To guarantee that the water used in industrial processes is free of impurities that could harm machinery or interfere with operations, they are crucial in a number of industrial applications, including water treatment.
By filtering out any debris, including gravel, metal chips, and other deposits that could be harmful to the operation of delicate mechanical equipment, strainers serve as the first line of defense in a piping protection system. Strainers are essential to preserving the effectiveness and safety of piping systems because they prolong equipment life and lower maintenance costs.

Common strainer types

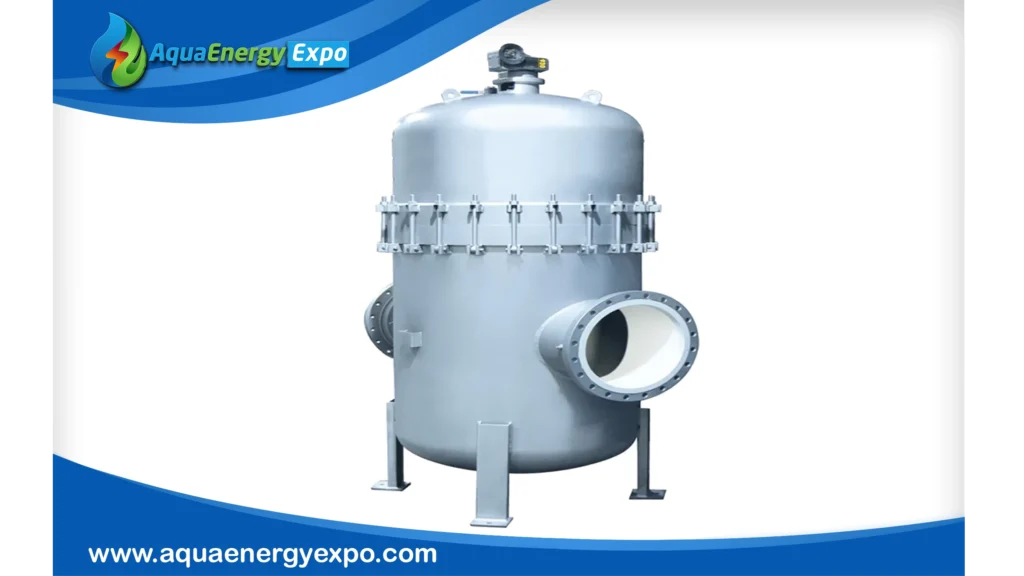

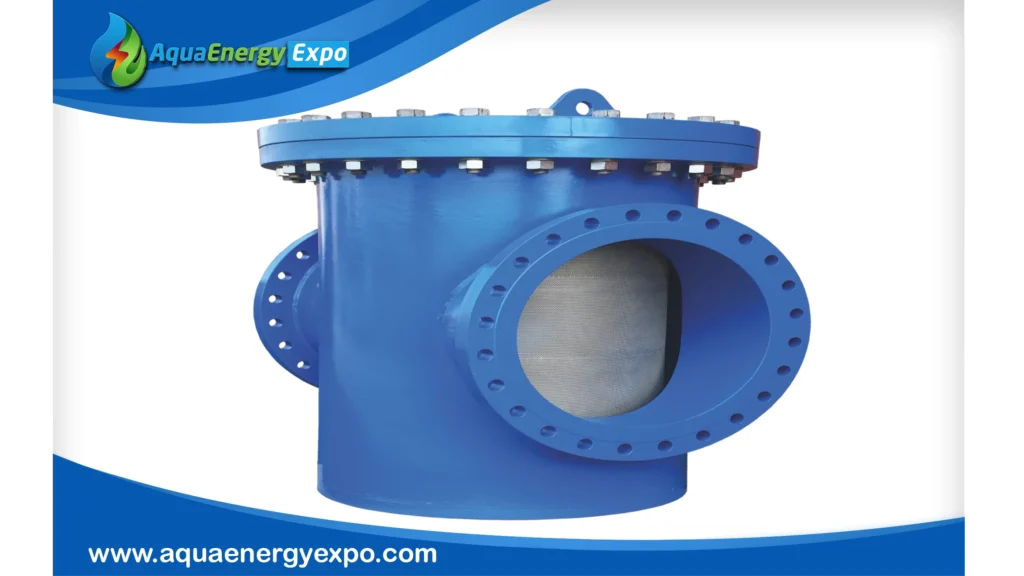

Basket Strainer

Basket strainer features a larger straining element resembling a basket. This design increases the surface area for filtration, allowing them to handle higher flow rates and larger volumes of debris. Basket strainer is typically installed in horizontal pipelines and is well-suited for applications requiring continuous operation.

Advantages

Greater dirt-holding capacity

Suitable for high flow rate applications

Easy access for maintenance

Applications

Cooling water systems

Power generation plants

Pulp and paper industries

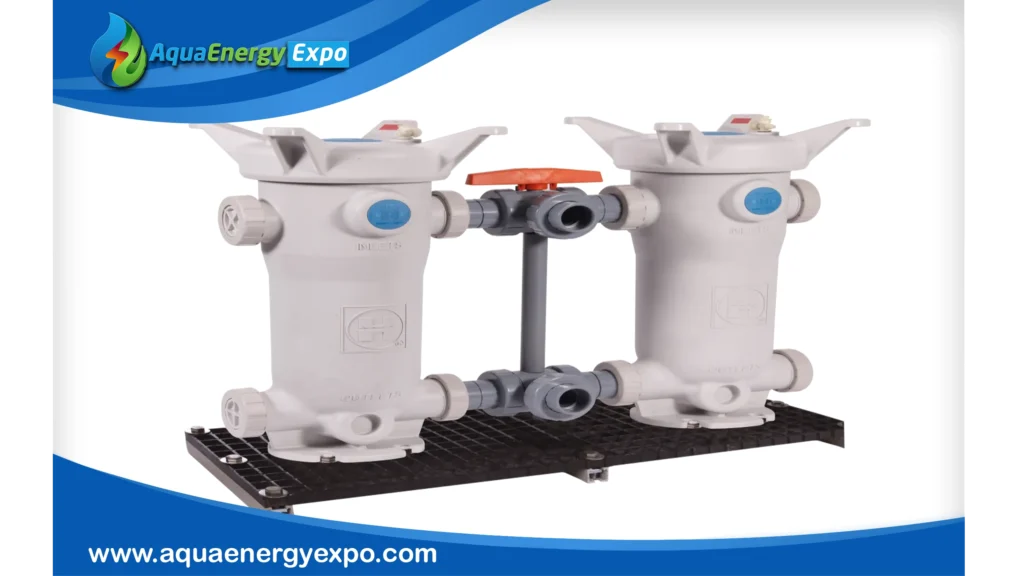

Duplex Strainer

Duplex strainer consists of two parallel basket strainers, allowing for continuous operation even during maintenance. When one basket becomes clogged, the flow can be diverted to the other basket without interrupting the process. This design enhances efficiency and minimizes downtime in critical applications.

Advantages

Continuous operation

Minimal process interruption during maintenance

High reliability

Applications

Marine applications

Petrochemical industries

Pharmaceutical processing

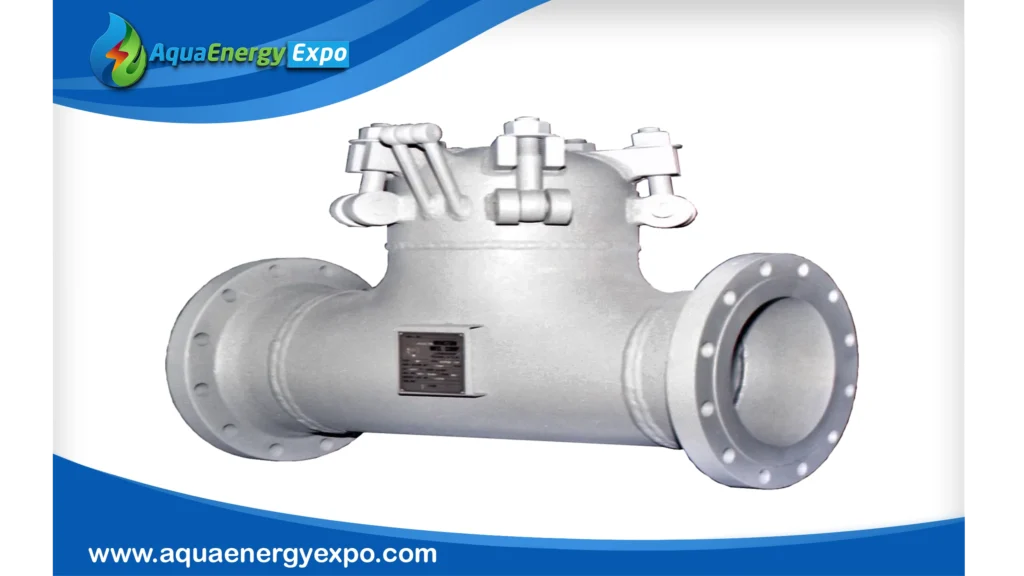

T-Strainer

T-strainer, named for its T-shaped design, is used for coarse filtration of large particles. It is typically fabricated from pipe and are used when temporary or emergency filtration is required. T-strainer is commonly employed as a low-cost solution for protecting pumps and other equipment from large debris.

Advantages

Simple and cost-effective design

Temporary filtration solution

Easy to fabricate and install

Applications

Temporary construction site filtration

Backup filtration systems

Emergency filtration needs

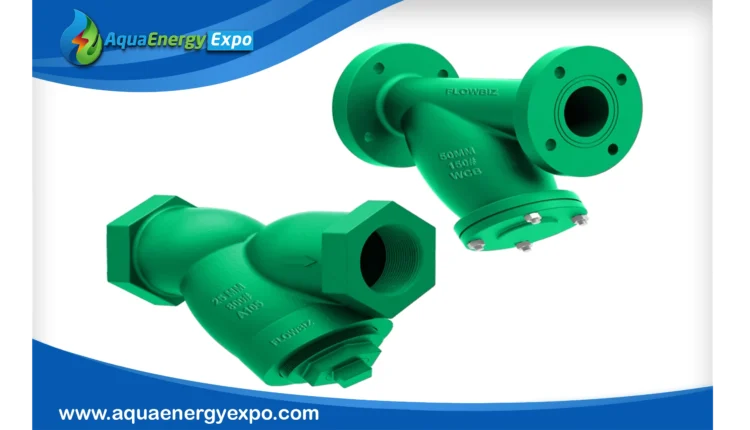

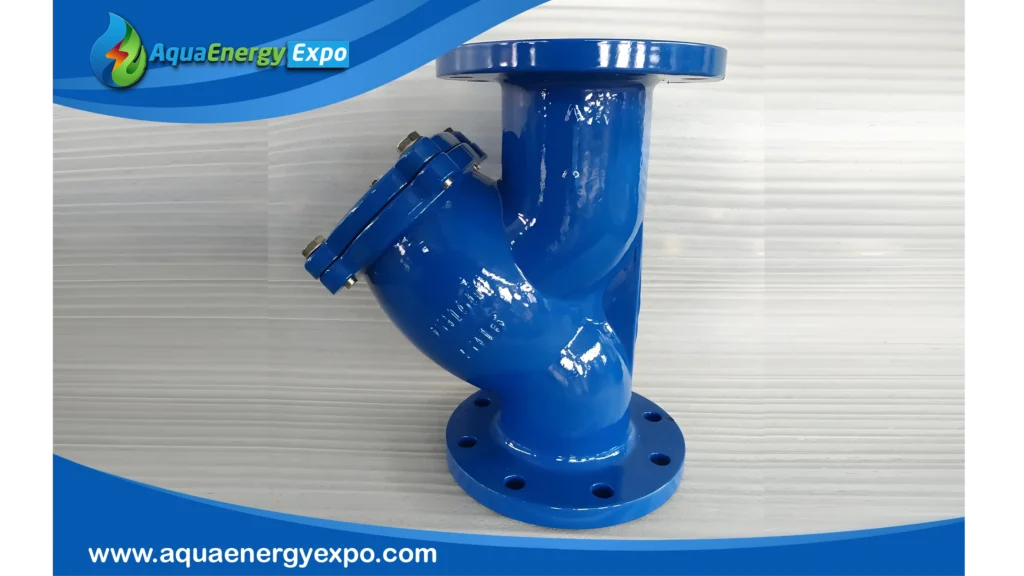

Y-Strainer

Y-strainer is named for its Y-shaped configuration, which allows it to be installed in either vertical or horizontal pipelines. This strainer is designed to capture debris through a perforated or mesh-lined straining element. It is commonly used in applications where small amounts of solid particulate matter need to be removed from liquids or gases.

Advantages

Versatile installation orientation

Cost-effective for low to medium flow rates

Easy maintenance and cleaning

Applications

Industrial water systems

HVAC systems

Chemical processing industries

Self-Cleaning Strainers

Automatic Strainer which automatically cleans itself through a backwashing mechanism, very effective for operations that require minimal maintenance and high efficiency.

Advantages

Micron-sized and high-volume impurities such as

large municipal or industrial water treatment systems.

Applications

Each of these strainer types is designed to meet specific specifications within the piping system, ensuring that they can handle the unique challenges of each application with maximum effectiveness.

Selecting the Right Strainer for Your Application

The type of impurities, the necessary flow rate, and the particular needs of the application are some of the variables that must be taken into account when choosing a strainer. Here are some important things to think about:

Features of the Contaminant:

Determine the size, type, and volume of the particles to make sure the mesh or perforation size of the strainer is suitable.

Flow Rate and Pressure Drop:

To choose a strainer that won’t obstruct the process, take into account the system’s flow rate and allowable pressure drop.

Material Compatibility:

To avoid corrosion or deterioration, make sure the strainer’s material is suitable with the fluid being processed.

Upkeep and Availability:

Select a strainer design that makes cleaning and maintenance simple, especially for applications that need to be serviced frequently.

Strainers vs. Filters

Industrial strainers and filters are designed to remove undesirable particulates from a liquid or gas. The size of the particles that strainers and filters remove is the primary distinction between them. Filters eliminate impurities that are frequently so tiny that they are invisible to the human eye, whereas strainers usually eliminate larger particles that are visible in a liquid or gas.

How They Differ

A strainer’s main function is to remove bigger, undesired suspended particles from a liquid in order to prevent damage to downstream machinery, such as pumps. Depending on the use, strainers can have a wide range of sizes and forms, but they all have one crucial feature: they are made to be easily removed and cleaned. For the equipment to operate at its best, quick cleaning means minimal downtime.
Filters are used to eliminate tiny undesirable particles from both liquids and gases, whilst strainers are used to eliminate bigger particles. When the liquid or gas going through the system needs to be free of the majority of impurities, including those as tiny as a grain of sand, filters are usually employed. While certain filters need to be changed on a regular basis, many can be reused.

Conclusion

You may improve the effectiveness, dependability, and environmental compliance of your water treatment systems by making well-informed selections based on your knowledge of the features and uses of these strainers types. As an experienced environmental consultant, I advise seeking advice from experts to make sure your strainer choice satisfies your operational objectives and legal requirements.

By putting into practice efficient straining solutions, you may help manage water supplies sustainably while also protecting the environment and public health.
