The containerized water treatment plant is an innovative water treatment facility designed to address regional water shortages. Containerized water treatment system is an integrated water treatment plant that combines various types of water treatment units and control systems in a containerized structure to optimize filtration capacity and precision while achieving convenient and rational management.

In containerized water treatment plant, different water treatment processes can be carried out to produce high quality clean water. Containerized plants have many advantages in comparison with traditional water treatment facilities, such as small footprint, low investment cost, flexible planning, easy installation, high automation and simple maintenance.

What is a containerized water treatment plant?

A containerized water treatment plant is a mobile water treatment facility that is usually installed in a container and has the function of purifying water sources. They are designed to cope with water shortage areas and provide safe, clean drinking water and industrial water.

Principle of operation

The working principle of containerized water treatment plant is similar to that of traditional water treatment plant, which mainly includes steps such as pretreatment, filtration, reverse osmosis and disinfection. The water is first pretreated to remove large particulate impurities, then passed through filters and reverse osmosis membranes to remove dissolved solids and organic matter, and finally disinfected to ensure safe water quality.

How they solve the water shortage problem?

In order to address the issue of water scarcity, containerized water treatment plants are crucial. They offer dependable water resources to places without infrastructure, are rapidly deployable, and can adapt to a range of situations and terrains. In order to meet water needs in various situations, they can also dynamically modify their output in response to demand.

Technical characteristics of containerized water treatment plant

The technical features of containerized water treatment facilities and their importance in real-world applications will be covered in the sections that follow.

Mobility

Containerized water treatment plants have good mobility and employ containers as the outside shell. This makes it possible for them to be swiftly sent to regions in need to give locals irrigation and emergency drinking water.

Automation control

An advanced automated control system is used in containerized water treatment plants to allow for intelligent equipment operation and remote monitoring. This lowers human expenses and operational risks while also enhancing equipment stability and efficiency.

Customizable design

Containerized water treatment plant designs can be tailored to meet specific needs, such as equipment configuration, water quality standards, and treatment capacity. Because of this, they are appropriate for a wide range of application situations and can satisfy the demands of various sectors and geographical areas.

How containerized water treatment plants handle emergencies and disasters

Emergency disaster response

In the case of an emergency or natural disaster, containerized water treatment facilities are crucial. These facilities may be swiftly transported to disaster locations to give the impacted population much-needed domestic and drinking water. The hardship of people in disaster zones can be lessened by containerized water treatment plants, which are flexible and efficient enough to deliver vast amounts of clean water in the shortest amount of time.

Actual effect evaluation

Based on previous catastrophic events, the true consequences of containerized water treatment plants can be assessed. We can learn about the quantity, quality, and range of services offered by these facilities in terms of disaster response through data collecting and on-site surveys. The efficiency and efficacy of future disaster response can be increased by using the evaluation results to inform equipment design and response tactics.

Analysis of successful cases

A more thorough idea of the true efficacy of containerized water treatment plants in emergency disaster response can be gained by examining previous successful situations. We can acquire valuable lessons and success aspects from examining these experiences, which will serve as motivation and direction for disaster response in the future. Governments, NGOs, and other stakeholders can use these cases as a guide to better develop and carry out disaster response strategies.

Improvement and Innovation

It is possible to make recommendations for advancements and improvements based on the assessment and analysis of the real impacts of containerized water treatment facilities during catastrophic catastrophes. This could entail enhancing response tactics, bolstering emergency response systems, and maximizing equipment performance. The effectiveness and dependability of containerized water treatment facilities in disaster response may be increased, and the lives and quality of life of those affected by disasters can be better safeguarded, via constant innovation and improvement.

Containerized Water Treatment System types

Containerized CMF Water Purification System

During continuous membrane filtration (CMF) water treatment, the filtration, separation and purification of raw water is achieved by pre-treatment unit and ultrafiltration (UF) membrane, and driven by a defined pressure.

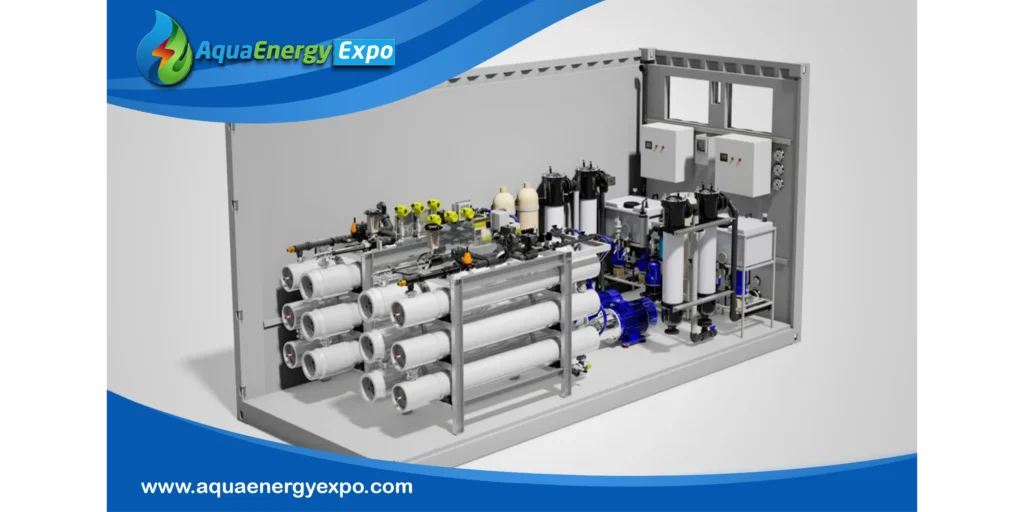

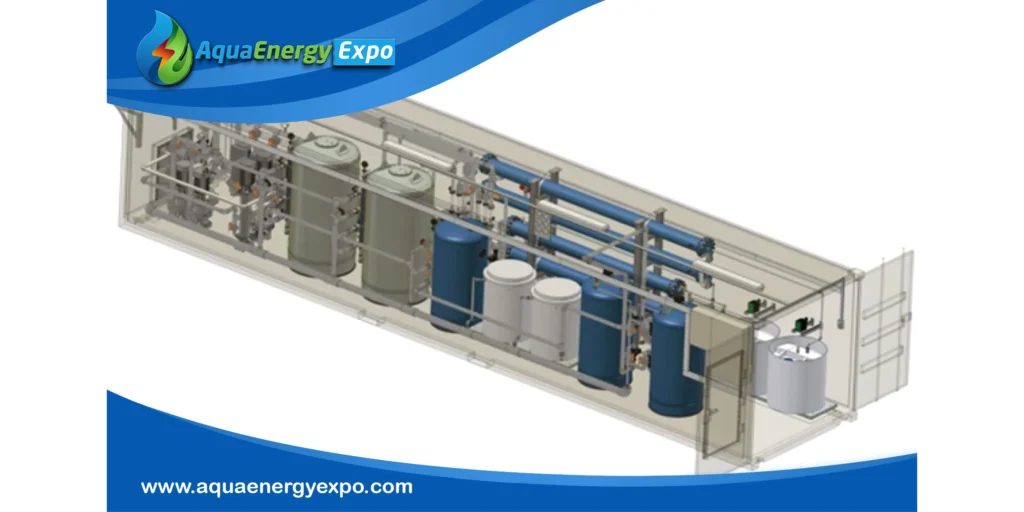

Containerized UF-RO Seawater Desalination Plant

The containerized seawater desalination plant is a water treatment solution that combines ultra-filtration (UF) and reverse osmosis (RO) systems which are built inside metal shipping containers.

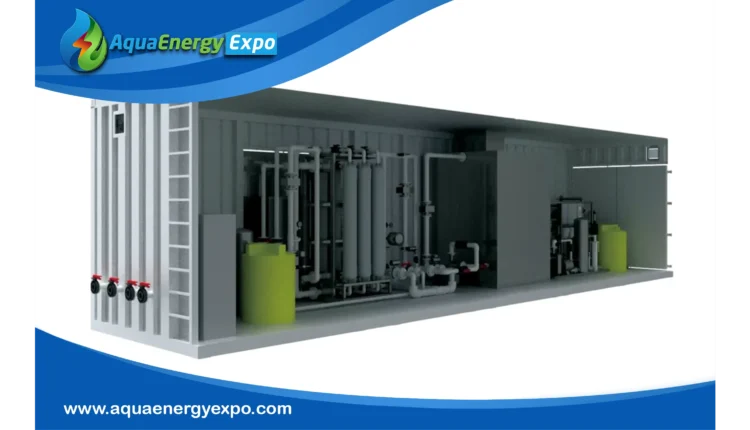

Containerized MBR Wastewater Treatment Plant

Containerized MBR wastewater treatment plant is an innovative mobile wastewater treatment system based on membrane bioreactor (MBR) technology that combines membrane filtration with biological treatment.

Container wastewater treatment plants’ drawbacks

If you need something compact and something that takes as little space as possible, container wastewater treatment is really a good solution.
However, if I should mention some kind of possible “problem“ of this system, it is a deficient depth.
In comparison to the depth of the traditional tanks at a wastewater treatment facility, the majority of the containers are just 2.6 meters high. Because the oxygen in the system has the longest residence time, conventional wastewater treatment plants use tanks that are 4 to 4.5 meters high.

Since microbes require oxygen to survive, air must be introduced into the system. Additionally, oxygen can dissolve in the water more readily the longer it is present in the system. Less oxygen will dissolve in the system if the tank’s water level is lowered. Larger air supply volumes are therefore required.
We lose money in the form of kWh used by a blower that maintains the air supply as we increase its quantity and essentially use it inefficiently.
From zero, when the factory only operates for one shift and is idle the rest of the time, to maximum inflows, such as during production line washing and cleaning, a highly irregular flow can be detrimental to tiny plants.

Conclusion

Regardless, we are unable to categorically criticize the containerized water treatment plant for their success or failure. Like any technology, this one has pros and cons, as well as the circumstances and setting of the factory, where the use of a wastewater treatment plant of this kind is practically required.

Therefore, it is advisable to propose an equalization tank prior to such technology that will mitigate the irregularity in the inflow and also the irregularity in the composition (pH, temperature, concentration of various substances, etc.)
