Can Better Filtration Cut Costs, Protect RO Membranes, and Improve Water Quality at the Same Time?
In modern water treatment, achieving consistently high-quality water requires more than advanced membranes or sophisticated process controls. Effective filtration is the foundation of reliable treatment performance, playing a critical role in reducing fouling potential, protecting downstream equipment, improving operational stability, and lowering lifecycle costs.
Selecting the right filter media can significantly influence plant efficiency, water quality, and the long-term performance of Reverse Osmosis (RO) systems. Advanced filtration solutions such as Filtralite® are designed to optimize pretreatment, enabling treatment facilities to achieve better operational and economic outcomes without major infrastructure changes.
One Filtration Technology, Multiple Water Treatment Solutions

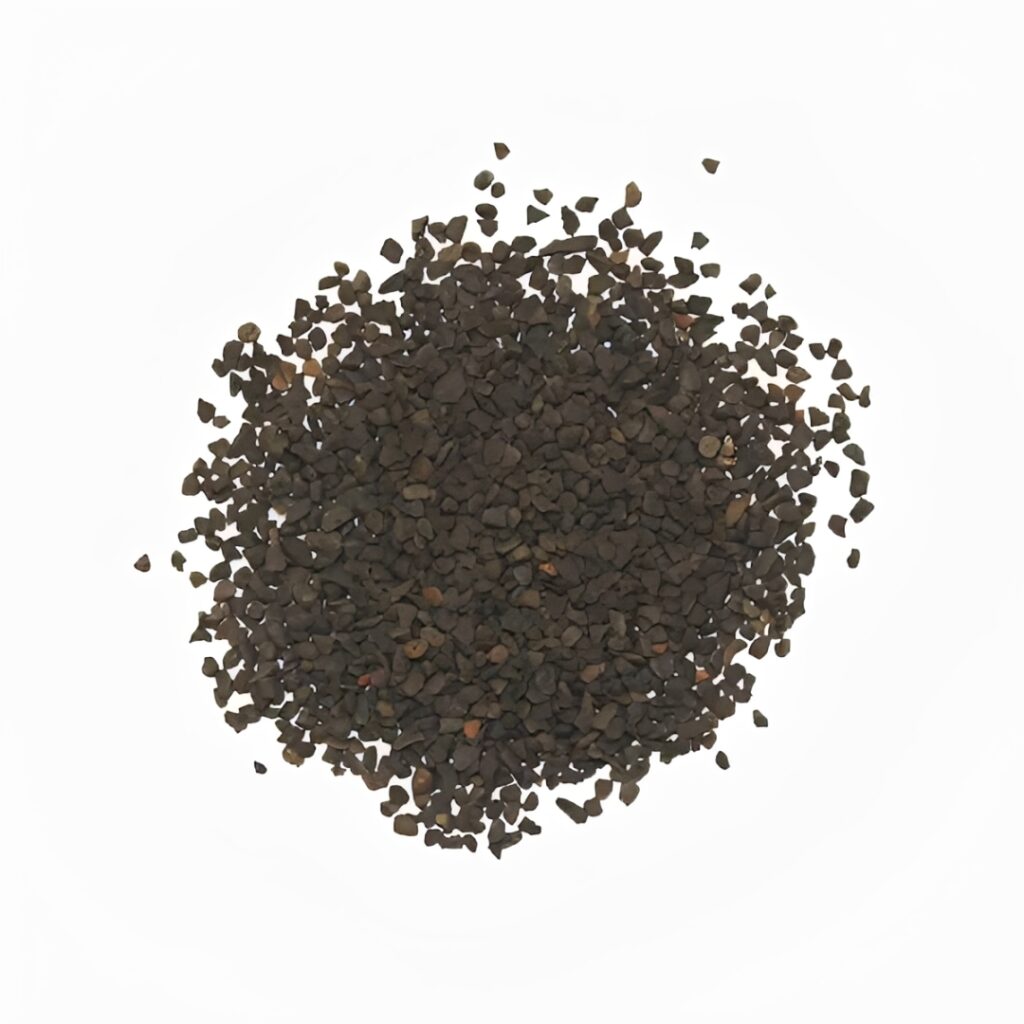

Manufactured from lightweight expanded clay, Filtralite® features a highly porous structure that combines excellent solids retention with outstanding hydraulic performance. Compared with conventional filter media, it offers:
- Higher filtration efficiency
- Longer filtration cycles
- Reduced backwash frequency
- Lower water and energy consumption
- Reduced operating and maintenance costs
To address different treatment requirements, the Filtralite® portfolio includes specialized products:
- Filtralite® PURE – Optimized for drinking water treatment and desalination pretreatment, providing superior filtration while protecting downstream RO membranes.
- Filtralite® CLEAN – Engineered for municipal and industrial wastewater treatment, improving solids removal and biological process stability.
- Filtralite® AIR – Designed for air filtration and odor control, extending advanced filtration technology beyond water treatment applications.
This versatile product range enables utilities to select the most appropriate media for their specific operational needs while maximizing filtration performance and sustainability.
Success Story: Filtralite® Improves RO Pretreatment at the SULB Bahrain Plant
A compelling example of Filtralite®’s performance can be found at the SULB Bahrain Reverse Osmosis Plant, owned by SULB Company and operated by Veolia.
Producing approximately 4,500 m³/day of treated water, the facility operates under some of the Gulf region’s most demanding seawater conditions, including:
- High salinity
- Seasonal algae blooms
- Fluctuating turbidity
- Elevated water temperatures
These conditions increased the fouling risk for the RO membranes, making efficient pretreatment essential for maintaining plant performance and controlling operating costs.
To improve filtration efficiency, the plant upgraded its dual-media filters by replacing conventional anthracite with Filtralite® NC 0.8–1.6, using a filter bed consisting of 0.6 m Filtralite® over 0.4 m sand.
The results demonstrated substantial improvements in water quality, membrane protection, and operational efficiency.
Cleaner Pretreatment Means Better RO Performance
Lower SDI for Enhanced Membrane Protection
One of the most important indicators of pretreatment performance is the Silt Density Index (SDI), which measures the fouling potential of feed water entering RO membranes.
Following the upgrade:
- Anthracite: SDI = 4.7
- Filtralite®: SDI = 3.46
This significant reduction lowered the fouling potential of the feed water, helping extend membrane life, reduce cleaning frequency, and improve overall RO reliability.
Superior Turbidity Removal
The upgraded filtration system also produced cleaner feed water.
Treated water turbidity improved from:
- 0.42 NTU with anthracite
- 0.31 NTU with Filtralite®
Lower turbidity improves downstream membrane performance while reducing the accumulation of suspended solids inside the RO system.
Operational Benefits Beyond Water Quality
The benefits of Filtralite® extended well beyond improved filtration performance.
The plant experienced:
- Enhanced protection of RO membranes
- Greater suspended solids retention
- Lower operating and maintenance costs
- Reduced media regeneration requirements
- Improved resistance to algae-related fouling
- Stable operation despite changing seawater conditions
Perhaps the most impressive result was the dramatic improvement in filtration cycle length.
The filters operated two to three times longer between backwash cycles, while maintaining zero filter media loss, demonstrating exceptional durability and long-term operational stability.
Less frequent backwashing also reduced water consumption, energy demand, and operational interruptions, contributing to improved plant efficiency.
Why Water Utilities Choose Filtralite® PURE
Designed specifically for drinking water treatment and desalination pretreatment, Filtralite® PURE combines lightweight expanded clay technology with a highly porous internal structure that delivers exceptional filtration performance.
Its large specific surface area enables:
- Improved contaminant capture
- Better suspended solids retention
- Longer filter runs
- Reduced backwash frequency
- Lower operating costs
- Enhanced protection of downstream membrane systems
These advantages make Filtralite® PURE an effective pretreatment solution for utilities seeking higher performance and greater operational reliability.
Performance at a Glance
| Parameter | Result |
| Plant Capacity | 4,500 m³/day |
| Filter Bed Depth | 1.0 m (0.6 m Filtralite® + 0.4 m Sand) |
| Filtration Media | Filtralite® NC 0.8–1.6 + Sand |
| SDI (Anthracite) | 4.7 |
| SDI (Filtralite®) | 3.46 |
| Turbidity (Anthracite) | 0.42 NTU |
| Turbidity (Filtralite®) | 0.31 NTU |
| Time Between Backwash | 2–3× Longer |
| Filter Media Loss | 0% |
A Smarter Pretreatment Investment for Long-Term RO Performance
The experience at the SULB Bahrain RO Plant demonstrates that effective pretreatment can simultaneously improve water quality, protect RO membranes, and reduce operating costs.
By delivering lower SDI, improved turbidity removal, longer filtration cycles, and zero media loss, Filtralite® PURE proved that upgrading filter media is not simply a filtration improvement—it is a strategic investment in plant reliability, sustainability, and long-term operational efficiency.
As desalination facilities face increasing pressure to reduce energy consumption, extend membrane life, and optimize operating costs, advanced filter media continues to play an increasingly important role in achieving these goals. Choosing the right pretreatment solution today can deliver measurable technical, environmental, and economic benefits for years to come.
