Scouring Water distribution systems must be kept clean and operational to ensure the safe and high-quality delivery of drinking water. For this purpose, traditionally, unidirectional flushing, pigging, etc., have been used widely. Air scouring has emerged as a compelling alternative with many advantages in efficiency, cost-effectiveness and impact on the environment.

Understanding Air Scouring

Air scouring injects filtered compressed air into water mains to remove built-up sediments, biofilms and other deposits. It is an effective cleaning technique. This method allows turbulent flow in the pipe, which will help in pushing out the waste from the system. This method is most effective for the removal of any loose deposits and is suitable for pipes with diameters of 300mm or less.

Air Scouring Process for Water Main Cleaning

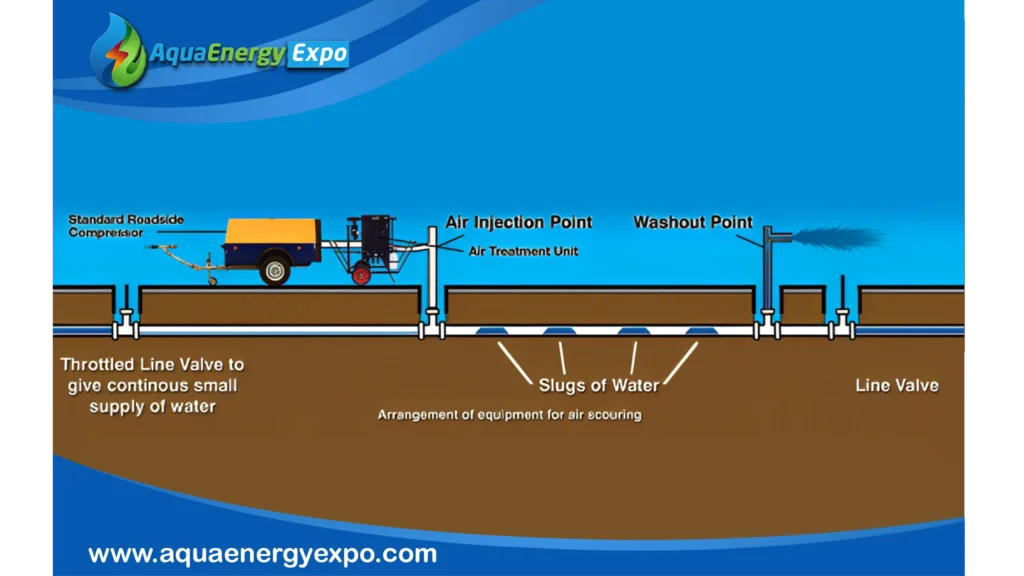

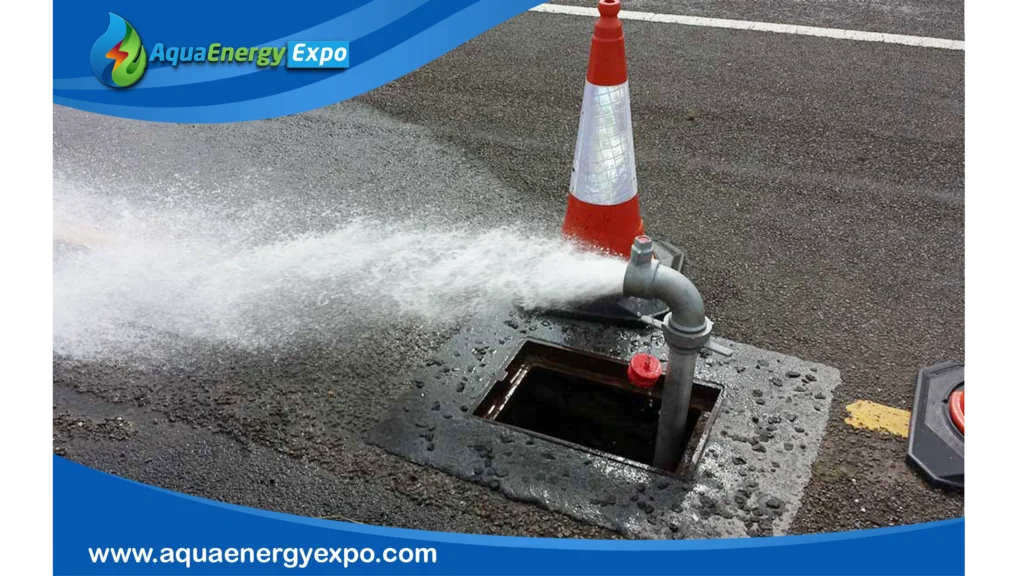

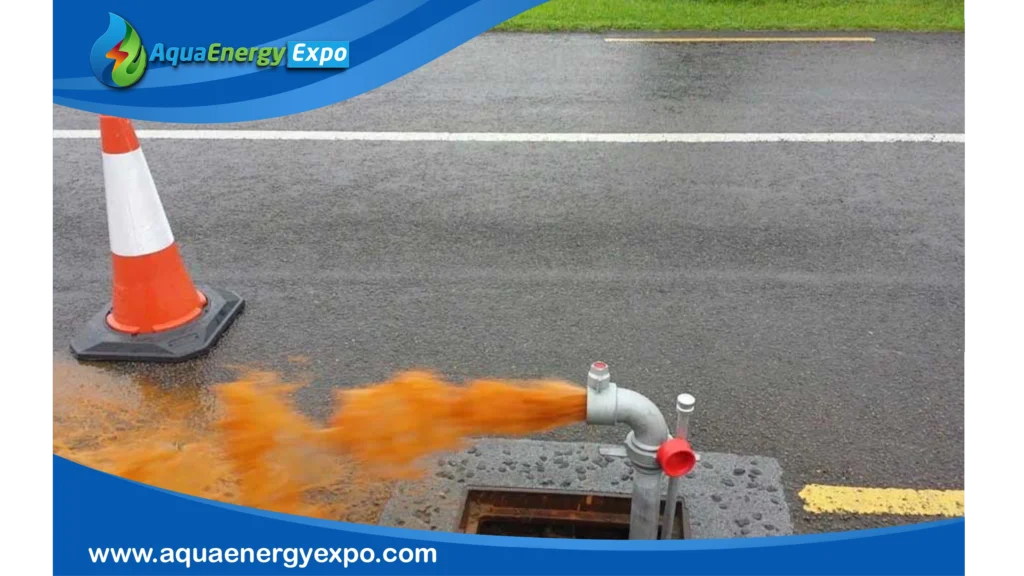

The method generally consists of isolating a section of the water main between 2 points, like fire hydrants. First, high-velocity and low-pressure air is blown through the pipe, Before water in controlled amounts. As the air-water interaction creates slugs that move through the pipe, it scours the internal surfaces of the pipe and carries debris out through an exit point. Once the water being expelled runs clear, the cleaning process is over and normal service is resumed.

Advantages of Air Scouring

1- Enhanced Cleaning Efficiency

Air scouring provides cleaning velocities that are greater than those of flushing. By using a combination of air and water slugs, it induces turbulence that dislodges sediments, biofilms and soft mineral scales from the pipe walls. This results in improved water quality and increased flow capacity.

2– Water Conservation

One of the primary advantages of air scouring is its low water use. According to studies, air scouring consumes about eight times less water than unidirectional flushing, making it an environmentally benign solution, particularly in locations with limited water resources.

3- Cost-effectiveness

Air scouring is often less expensive than other cleaning processes, such as pigging or swabbing. It removes the requirement for temporary ground plumbing to supply service water during cleaning, which lowers operational costs. Furthermore, the method involves less personnel and time, which adds to the cost reductions.

4- Environmental Responsibility

The air scouring technique does not require chemicals, and the discharged water, which contains dislodged sediments, can frequently be safely dispersed on site. This reduces environmental effect and adheres to sustainable water management practices.

5- Versatility and Safety

Air scouring is excellent for a variety of pipe materials, including cement-lined pipes, because it is a non-abrasive approach that protects the inside bore. It is also good at cleaning difficult-to-reach locations, such as tight bends, ensuring that the entire water distribution system is thoroughly cleaned.

Comparative Analysis of Other Cleaning Methods

– Unidirectional Flushing

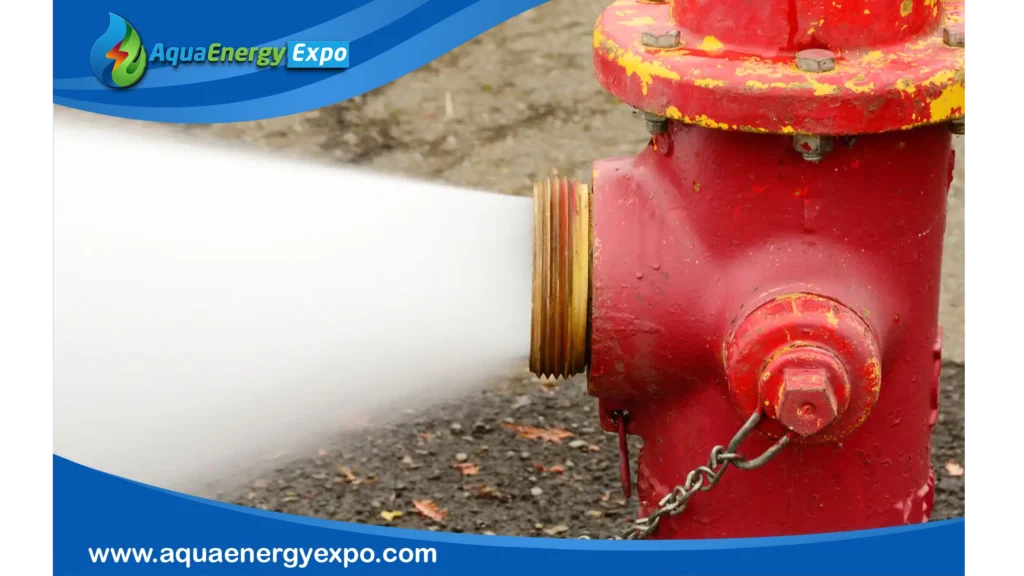

Unidirectional flushing is the release of water at high speeds to remove sediments from water mains. While successful in some cases, it requires a lot of water and may not remove biofilms or mineral scales completely. In contrast, air scouring achieves higher cleaning efficiency while using substantially less water.

– Pigging

Pigging is the process of physically scraping the interior of pipes to remove trash and accumulation using a “pig” device. Pigging can be extremely effective, but it is more invasive and may not be appropriate for all pipe types or combinations. Air scouring is a less intrusive option that nonetheless provides effective cleaning results, especially for smaller diameter pipes.

Implementation Considerations:

1) Equipment and Setup

Air scouring requires specialized equipment, such as air treatment machines that inject filtered, oil-free compressed air into the water mains. These units must be able to regulate pressure in order to avoid exceeding the current mains’ typical working pressure. The configuration also includes separating pipeline portions and coordinating air and water injection and release points.

2) Operations Planning

Effective air scouring involves careful planning to minimize service disruptions. Customers should be alerted in advance of any scheduled cleaning activities, and plans should be made to maintain water supply continuity as needed. Post-cleaning actions, such as flushing taps to remove leftover air or discolored water, should also be informed to customers.

3) Monitoring and Quality Assurance

Pre- and post-cleaning water quality testing is required to determine the efficiency of the air scouring procedure. Chlorine levels and turbidity should be assessed to determine that the cleaning process has resulted in the expected improvements in water quality.

Conclusion

Air scouring is a practical and effective solution for water main cleaning, with significant advantages over older approaches. Its capacity to successfully remove sediments and biofilms, together with its low water consumption and cost-effectiveness, makes it an appealing option for maintaining water distribution systems. As governments and water utilities seek more sustainable and effective maintenance procedures, air scouring stands out as an option worth considering.
