In modern manufacturing and cutting technologies, waterjet nozzles are essential yet often overlooked components that enable precise cutting. By directing high pressure water streams at a variety of materials, these nozzles facilitate efficient cutting, from delicate fabrics to robust metals. The design and construction of waterjet nozzles are crucial, as they must endure extreme pressures while ensuring accurate water streams, which directly affect the quality of the cut. By gaining a deeper understanding of the different types and specifications of waterjet nozzles, as well as the materials used in their production, engineers and manufacturers can make better informed choices. This knowledge ultimately enhances productivity and helps reduce operational costs in manufacturing processes.

What is a Waterjet Nozzle?

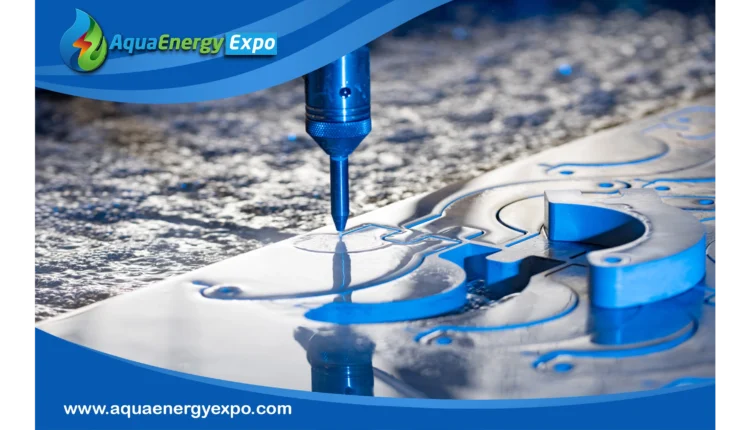

A waterjet nozzle is the part that focuses the water stream on the desired workpiece location. It is the final part of the water delivery system of the machine.

It is also known as the focusing tube or the mixing tube. The waterjet nozzle is made of extremely sturdy construction to handle the ultra high hydraulic power involved with waterjet cutting.

Due to the highly pressurized water, nozzle wear is common in waterjet cutting. Therefore, the water jet nozzle is a machine part that requires periodic replacement.

What is the Purpose of the Water Jet Nozzle?

The purpose of the water jet nozzle is to focus the water stream on the workpiece. The optimal width of the water stream for cutting varies for every material and thickness.

What are the Different Types of Nozzles?

There are two different types of water jet nozzles. These are:

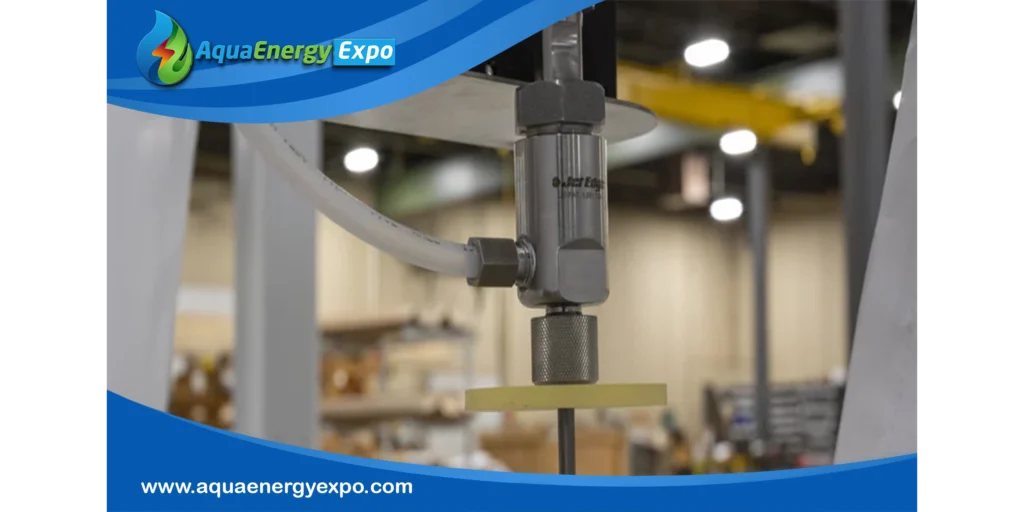

-Pure Water Jet Nozzle

A pure water jet nozzle is used in waterjet cutting that does not use any abrasive. It applies in waterjet cutting of soft materials like paper, foam, rubber, textiles, cardboard, and plastics that do not need abrasive waterjet cutting.

-Abrasive Water Jet Nozzle

An abrasive water jet nozzle is used in the abrasive waterjet cutting of hard materials that the force of the water alone cannot cut feasibly. An abrasive jet nozzle design differs greatly from a pure water jet nozzle.

An abrasive jet nozzle has an additional mixing chamber where the abrasive particles are introduced in the water. There is an inlet into the nozzle for the entry of abrasive particles.

The purpose of the high pressure water is for the acceleration of the abrasive particles. The material is cut with high-velocity abrasive particles Commonly cut materials with abrasive jet nozzles are metals, alloys, ceramics, composites, stone, glass, etc.

Specifications of a Water Jet Nozzle

There are many technical specifications to learn about water jet nozzles to understand how to differentiate between the different options. These specifications are:

-Orifice Diameter

The orifice diameter is the width of the gap in the jewel orifice. A lower orifice diameter means a more narrow water jet stream. Using a small orifice diameter will create a higher-pressure water jet. However, it will also increase the nozzle wear tremendously. This creates a more frequent need for nozzle replacement.

What is the diameter of a water jet cutting nozzle?

The diameter of a water jet cutting nozzle is generally three times the nozzle orifice diameter.

The nozzle orifice diameter is kept small enough to keep the kerf width minimum and accuracy at the maximum.

However, the value should not be too small because it will reduce the cutting speed and increase nozzle wear.

-Flow Rate

The flow rate is defined as the water volume that goes through the orifice per unit time. Flow rate is a numerical value measured in Litre per minute (LPM) or Gallons per minute (GPM). A higher flow rate increases the speed of the waterjet cutting. However, it also increases the nozzle wear.

-Nozzle Size

The nozzle size refers to the width of the nozzle bore hole. This value is three times the orifice diameter. The size of the water jet cutting nozzles can be divided into three segments:

–Small Nozzles:

A small nozzle is used when high accuracy or intricate details are required in the water jet cutting process. The diameter of these nozzles can range from 0.254 mm to 1.016 mm (0.01 in to 0.04 in). Small nozzles provide a higher control of the cutting process.

–Medium Nozzles:

Medium nozzles are used when working on surfaces or during general cutting operation. The precision is not the primary requirement for the medium nozzle cutting operation. The nozzle bore diameter can vary between 1.016 mm to 2.032 mm (0.04 in to 0.08 in).

–Large Nozzle:

Large nozzle is used when high speed cutting is the primary requirement. They can process bulk material cutting at a rapid rate. The nozzle bore diameter ranges from 2.032 mm to 6.35 mm (0.08 in to 0.25 in).

-Pressure Rating

Pressure rating is the maximum amount of water pressure that the nozzle can handle optimally. Exceeding the water pressure beyond this limit can degrade the nozzle severely and even cause nozzle breakdown. The pressure rating can vary from nozzle to nozzle. The manufacturers provide this value with the replacement nozzle.

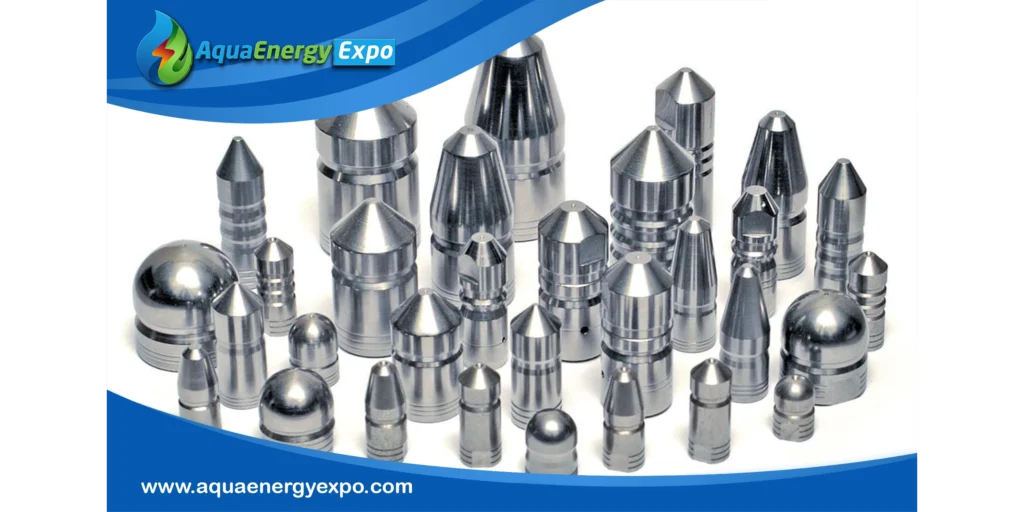

What Material Is Used For Making Waterjet Nozzles?

There are many different options for waterjet nozzle materials. The exact choice of material can vary depending on the intended lifespan, pressure rating, applications, and cost limits. Common materials for waterjet nozzle are:

-Tungsten Carbide:

Tungsten Carbide is the most popular material for waterjet nozzles. Tungsten Carbide nozzles fare exceptionally well in terms of performance and strength. The hardness of Tungsten Carbide is similar to diamond. Tungsten Carbide nozzles are rated for extreme waterjet pressures up to 90,000 psi. With ideal usage, Tungsten Carbide nozzles can last for over 200 hours. With rough use, these nozzles can require replacement after 100 hours.

-Sapphire:

Sapphire nozzles provide high durability and an affordable cost. Additionally, these nozzles are completely chemically inert. The lifespan of these nozzles is at the shorter end of the scale, lasting for around 50 to 100 hours. These nozzles are good up to 60,000 psi to 70,000 psi water pressure. Ruby nozzles in the market also have identical properties to the sapphire nozzles.

-Diamond:

Diamond nozzles are the best in terms of durability and hardness. These nozzles can withstand the most extreme water pressures and the hardest abrasives. The lifespan of these nozzles is also the longest. It is common for many diamond nozzles to come with a 1000 hour life expectancy. These nozzles are also the most expensive choice, costing around twenty times more than sapphire nozzles. They can be cost-effective in bulk abrasive jet cutting of very hard materials.

-Ceramics:

Ceramic nozzles are emerging as an innovative material choice for waterjet cutting. These nozzles can be even more durable than hardened steel. These nozzles are completely corrosion resistant. The lifespan of a ceramic nozzle depends on the material used in the particular nozzle.

How to Choose the Right Waterjet Nozzle?

Choosing the right waterjet nozzle should be done considering several factors. These factors are:

-Application:

The primary decision for choosing the right nozzle is based on the particular application. Certain applications can straightaway eliminate many of the available nozzle options. For instance, applications involving high pressures cannot use snap connection type nozzles.

-Material:

There are many different options for the nozzle material. Choose a suitable material based on whether or not you would be using an abrasive. Factor in how often you want to make nozzle replacements. Different materials have different lifespans. If you don’t mind investing in quality, diamond can be a good choice. Tungsten Carbides are tried and tested nozzles that are the most commonly used.

-Orifice Size:

The size of the orifice is also very application specific. The size depends on the type of material and its thickness. There is no standard orifice size suited for all applications. Find out the orifice size based on manufacturers instructions or by trying different options for your use cases.

-Manufacturer:

Opting for a trusted and reliable manufacturer is always recommended instead of a third party option. Manufacturers such as Techni Waterjet provide long-term reliability with spare part availability and technical support when needed.

Key Benefits of waterjet Nozzles:

-Precision:

Provides focused and high-speed delivery of fluids, ensuring efficient and accurate application.

-Energy Conversion:

Efficiently converts fluid pressure into velocity, enabling tasks like cutting, cleaning, and propulsion.

-Versatility:

Jet nozzles can be used with various fluids (water, air, chemicals, etc.), making them adaptable for multiple industries and applications.

-Durability:

Designed to handle high pressures and tough industrial environments, jet nozzles are built to last under demanding conditions.

Conclusion

waterjet nozzles are more than mere components of cutting machinery; they are vital instruments that enable innovation across various industries. Their ability to focus high pressure water streams with precision allows for the effective cutting of diverse materials, making them indispensable in manufacturing, construction, and artistic applications. By understanding the different types of nozzles, their specifications, and the materials used in their construction, professionals can optimize their processes and enhance the quality of their work. As technology continues to evolve, the importance of selecting the right waterjet nozzle will only grow, ensuring that we harness the full potential of this remarkable cutting method. Ultimately, waterjet nozzles represent the intersection of engineering excellence and practical application, driving progress in a world where precision and efficiency are paramount.
