Pump couplings, which connect the pump to the motor while permitting some misalignment and vibration absorption, are crucial parts of mechanical systems. For the pump system to operate at its best and be dependable and long-lasting, the right pump coupling must be chosen. This article explores the different kinds of pump couplings, their uses, and the things to look for when choosing a water pump coupling.

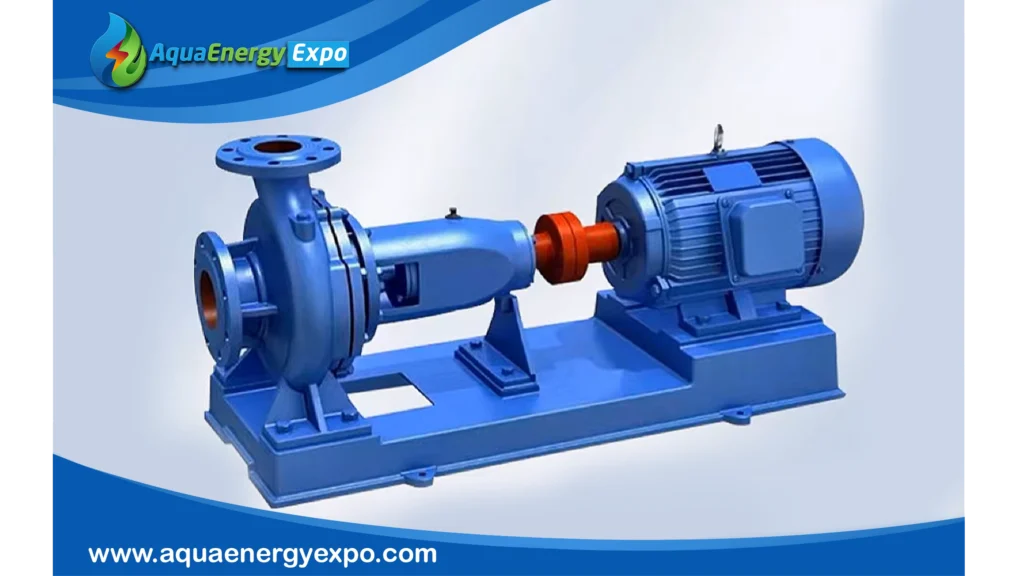

What is a Pump Coupling?

In order for the motor to effectively transfer power to the pump, a pump coupling is the component that joins the rotating pump shaft to the motor’s drive shaft. Because the motor is mounted directly to the pump on a single shaft, a close-coupled pump eliminates the need for a separate coupling. Close-coupled pumps have the advantage of being small and inexpensive, but they are not as good for heavy-duty, high-power, continuous use because the common bearings are subjected to more stress and the motor size is typically constrained.

The Misalignment Problem

If the two shafts stayed precisely aligned and did not vibrate while operating, coupling would be easy. This is untrue in practice, though, as any misalignment may cause the bearings, mechanical seals, and even the coupling itself to wear out and fail too soon. There are three primary types of misalignment, which occurs when one or both shafts are pushed out of their intended position:

– Axial: If coupling components are not joined at the proper set distances, power transmission is ineffective, causing wear and damage to rubber spider elements. If they are joined too closely, rubber flexibility is compromised, resulting in excessive wear.

– Radial: One shaft is higher than the other where shafts join together and the center line is positioned differently.

– Angular: In this case, the couplings and shafts are positioned at varying angles to one another.

Typical Types of Water Pump Coupling

There are various kinds of water pump couplings that are made for particular uses and operational circumstances. Among the most prevalent kinds are:

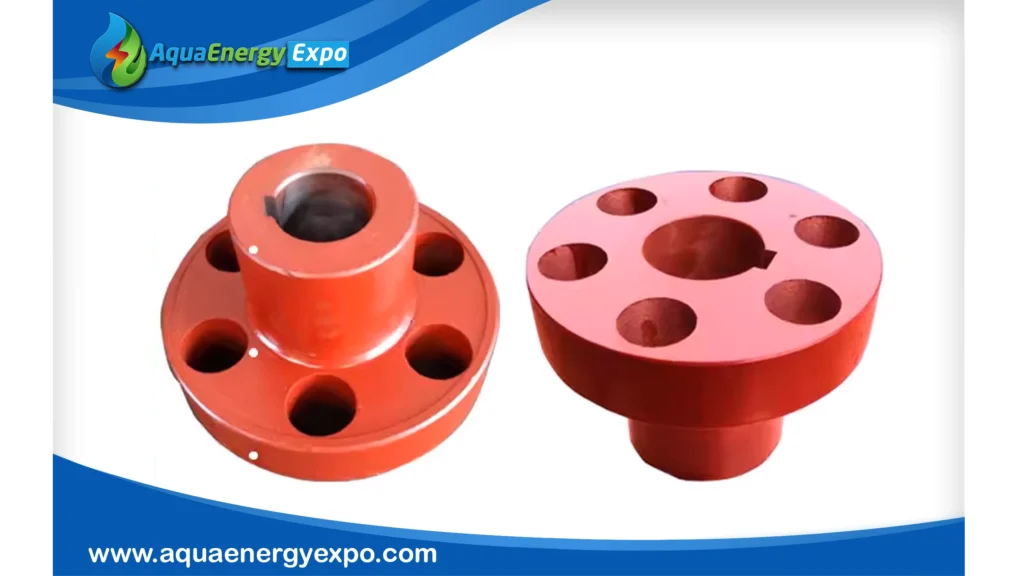

Rigid Couplings

The purpose of rigid couplings is to give the motor and pump shafts a strong connection. They are usually employed in applications where exact alignment is possible because they do not permit any misalignment. These couplings are appropriate for low-vibration settings and are frequently constructed from materials like steel or aluminum. They have the ability to send shocks and vibrations straight to the attached equipment, though, which could cause premature wear.

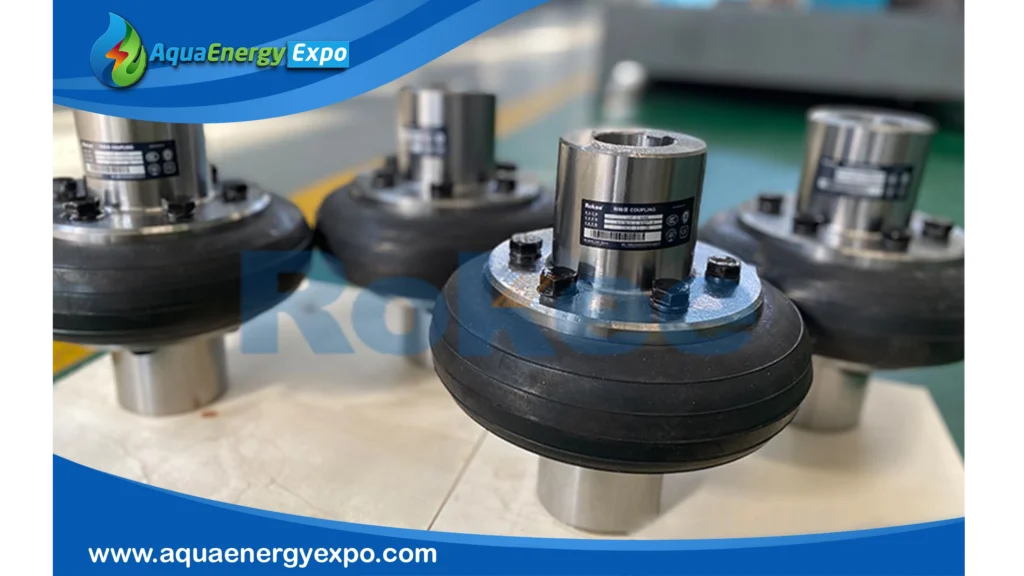

Flexible Couplings

Flexible couplings, as opposed to rigid couplings, can tolerate a certain amount of shaft misalignment. Applications where precise alignment is difficult because of thermal expansion or installation errors are best suited for this kind of pump coupling. There are several designs for flexible couplings, such as:

Jaw couplings: Jaw couplings are made up of two hubs and an elastomeric component that reduces vibration and shock. Because of their efficiency and simplicity, they are frequently found in water pumps.

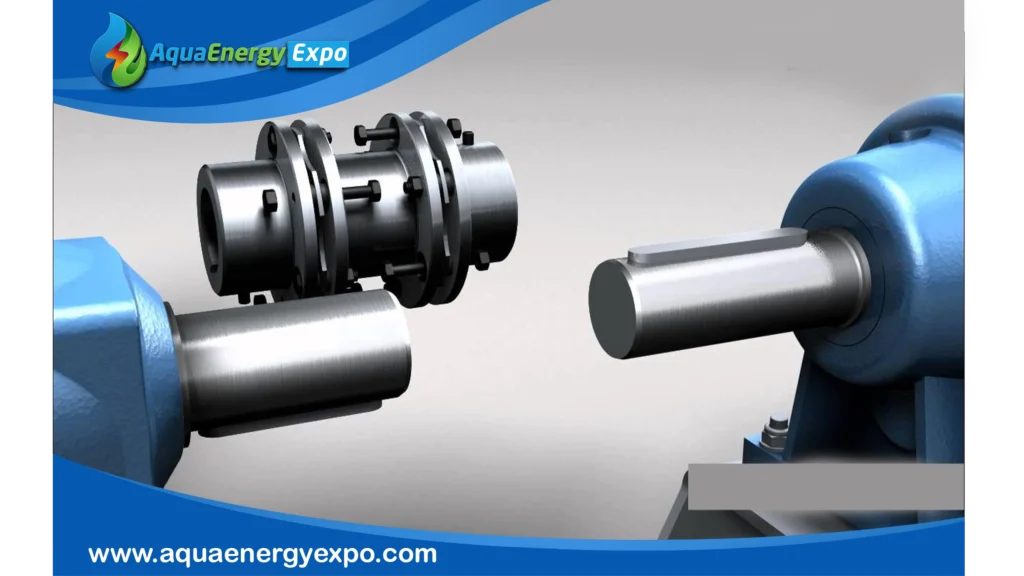

Disc Couplings: These couplings, which are composed of thin, flexible discs, have a high torque tolerance and offer superior misalignment compensation. High-speed applications can use them.

Oldham Couplings: Two hubs and a central disc make up these couplings. Applications requiring a high degree of angular misalignment are best suited for them.

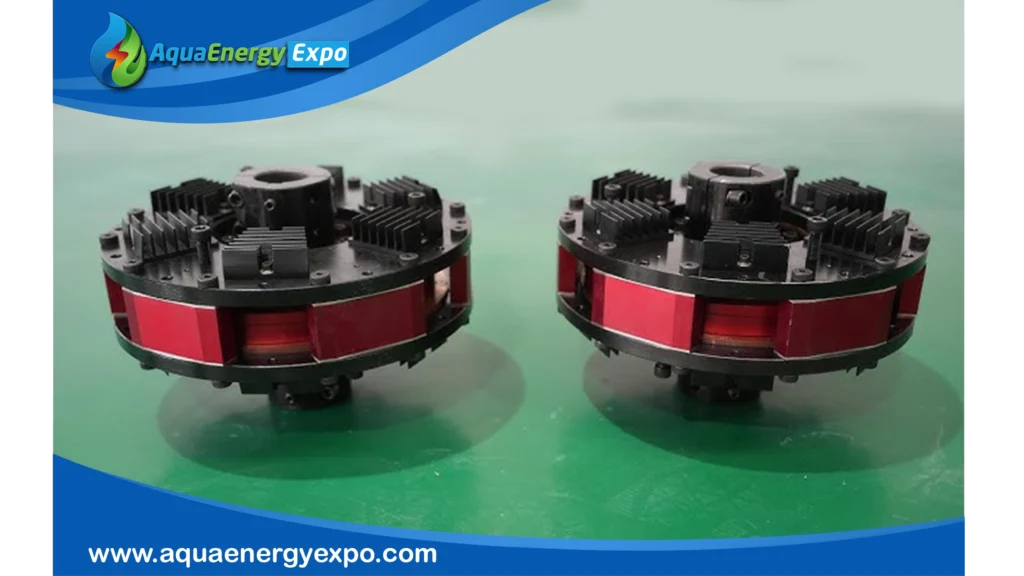

Magnetic Couplings

Without the motor and pump shafts coming into direct contact, magnetic couplings transfer torque via magnetic fields. In applications involving corrosive or hazardous fluids, this design is advantageous because it completely isolates the pump from the motor and removes wear. Applications for magnetic couplings in water treatment and chemical processing are common.

Rigid	Flexible	Magnetic
Mechanical	Mechanical	Non-Mechanical
Low cost	Dampen vibrations	No need for alignment
Simple design and low maintenance	Back pull-out design means shorter maintenance periods	Only use on clean fluids
Misalignment not possible	Accommodate misalignment	Limitations of RPMS
Best torque transmission	Accommodate high RPM	Slip of 2-5%
High bearing load	Higher cost	During high torque, it can decouple
Typically uses motors manufactured by the pump manufacturer, which can make local sourcing difficult.	Special alignment tools needed
Longer Motor shaft required	Quieter Operation
If pump is damaged, damage is transferred from the unit to the motor	Motors are easier to source

Pump Couplings’ Function in Industries

In many different industries, pump couplings are essential. Here are some instances:

Production: Pump couplings make sure that pumps, which are used for material handling, coolant circulation, and other purposes, run efficiently during manufacturing processes.

Oil and Gas: Pump couplings manage the difficult task of moving fluids, such as natural gas and crude oil, from one place to another in the oil and gas sector.

Chemical and pharmaceutical: Magnetic couplings are frequently used in these sectors to stop fluid leakage and contamination because accuracy and containment are crucial.

Agriculture: Pumps are utilized in agriculture for water management and irrigation. In order to ensure adequate water distribution, couplings aid in the efficient transmission of power.

Water and Wastewater Treatment: Pumps are essential to the movement and treatment of water in water treatment facilities. Their dependability is guaranteed by couplings.

Conclusion

Choosing the right pump coupling is essential to guaranteeing the dependability and effectiveness of pump systems. Engineers and operators can improve the performance of water pumps in a variety of applications by making well-informed decisions based on their knowledge of the different types of pump couplings and the factors that affect their choice.
