Cured-in-place pipe (CIPP) lining is a trenchless technology that has revolutionized how damaged or aging pipes are repaired. With CIPP, there is no need for extensive excavation or pipe replacement, making it an efficient and cost-effective solution for repairing pipes. In this blog post, we’ll explore the basics of CIPP lining and its benefits.

What is Cured-in-Place Pipe Lining?

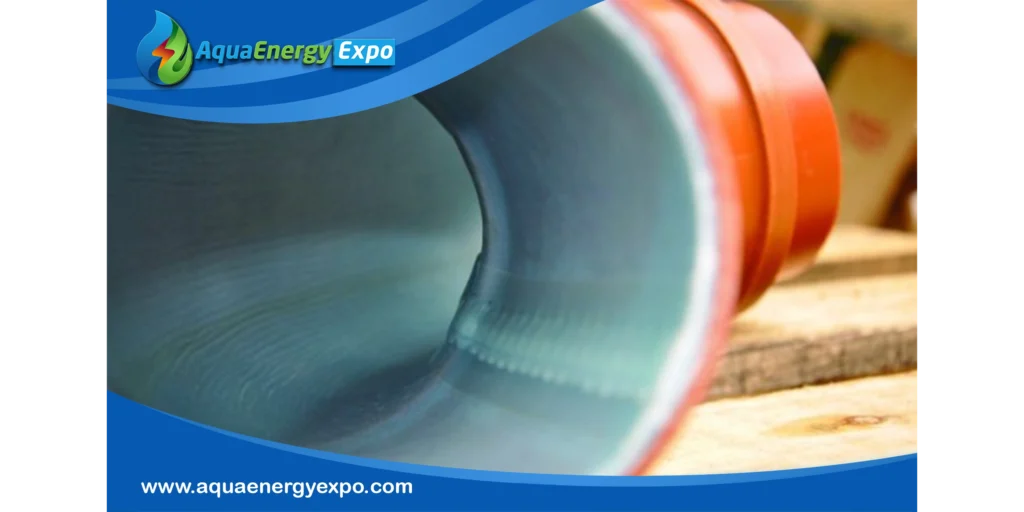

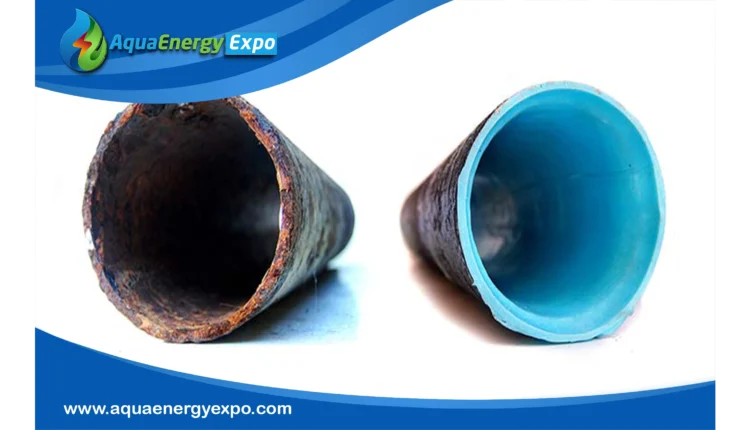

Cured-in-place pipe (CIPP) lining is a trenchless method of repairing damaged pipes. The process involves the insertion of a flexible lining material, usually made of polyester or fiberglass, into the damaged pipe. The liner is then inflated using air or water, pressing it tightly against the inner surface of the pipe. Once the liner is in place, it is cured using steam or hot water, creating a new, seamless pipe within the existing damaged one.

The CIPP Process Explained

The cured-in-place pipe lining process involves several precise steps to ensure a seamless repair. Here’s an overview of how it works:

Inspection and Assessment

Before starting any work, professional plumbers inspect the damaged pipe using advanced drain cameras. This step identifies cracks, leaks, or blockages, and all areas of access required, allowing technicians to determine whether CIPP lining is the best solution.

Cleaning the Pipe

Once the pipe has been assessed, it is thoroughly cleaned to remove debris, tree roots, and any other obstructions. This ensures the CIPP liner adheres correctly and no contaminants compromise the repair.

Lining the Pipe

A flexible felt sleeve liner coated with a epoxy resins is inserted into the pipe. The liner is carefully positioned to cover the damaged areas. Using air or water pressure, the liner is inflated so that it conforms to the shape of the original host pipe.

Curing the Liner

The resin pipe lining is then cured using some form of agent to harden the liner into a robust new pipe. Ambient temperature, ultraviolet light, hot water, or steam-cured CIPP installations ensure the cured liner bonds securely to the interior of the existing pipe.

Final Inspection

After curing, the internal bladder is deflated and removed and the newly lined pipe is inspected again to verify that the repair has been successful and that all issues have been resolved.

Quality assurance and quality control

Testing of CIPP installations is required to confirm that the materials used comply with the site and engineering requirements. Since ground and ambient installation conditions as well as crew skills can affect the success or failure of a cure cycle, testing is performed by 3rd party laboratories in normal cases and should be requested by the owner.

Samples should be representative of the installation environment since the liner is installed in the ground. Wet sandbags should be used around the restraint where the test sample will be extracted from. As with any specimen preparation for a materials test, it is important to not affect the material properties during the specimen preparation process. Research has shown that test specimen selection can have a significant effect on the CIPP flexural testing results. A technical presentation[3] at the CERIU INFRA 2012 Infrastructures Municipals Conference in Montreal outlined the results of a research project which examined the effects of test specimen preparation on measured flexural properties. Test specimens for ASTM D790 flexural testing must meet the dimensional tolerances of ASTM D790.

Advantages

CIPP does not typically require excavation to rehabilitate a leaking or structurally unsound pipeline. (Depending upon design considerations an excavation may be made, but the liner is often installed through a manhole or other existing access point.) CIPP has a smooth, jointless interior

Disadvantages and limitations

Except for very common sizes, liners are not usually stocked and must be made specifically for each project.[2] CIPP requires bypassing the existing pipeline while the liner is being installed, which may be inconvenient as, depending on diameter and system used (steam, water or UV), curing may take from one to 30 hours and must be carefully monitored, inspected, and tested. Obstructions in the existing pipeline, such as protruding laterals, must be removed prior to installation. CIPP is not always cheaper than similar methods such as Shotcrete, thermoformed pipe, close-fit pipe, spiral wound pipe and sliplining. The CIPP process may release chemical agents into the surrounding environment. The most common liner material, a non-woven felted fabric, does not go around bends well without wrinkling nor maintain roundness going around corners. Once a line is repaired with the CIPP method, it can no longer be cleaned using cables or snakes; instead, high-pressure water blasting (hydrojetting) must be used.

What are the benefits of CIPP Lining?

1.Cost-Effective

CIPP lining is a cost-effective solution for repairing damaged pipes. Since there is no need for extensive excavation, the cost of labor and materials is significantly reduced. Additionally, the process can be completed much faster than traditional pipe repair methods, resulting in fewer disruptions and downtime.

2.Minimal Disruption

One of the biggest advantages of CIPP lining is the minimal disruption it causes. Since there is no need for extensive excavation, the surrounding area is left virtually untouched. This means that businesses and homeowners can continue with their daily activities without interruption, reducing the inconvenience and stress associated with traditional pipe repair methods.

3.Environmentally Friendly

CIPP lining is an environmentally friendly solution for repairing damaged pipes. Since there is no need for excavation, there is less disruption to the surrounding environment. Additionally, the liner material used in CIPP lining is non-toxic and does not release harmful chemicals into the environment.

4.Durability

CIPP lining is a durable solution for repairing damaged pipes. The new liner is seamless and can withstand high pressure, making it less susceptible to leaks and blockages. Additionally, the liner material used in CIPP lining is corrosion-resistant, making it ideal for use in harsh environments.

5.Versatility

CIPP lining is a versatile solution for repairing pipes of various sizes and materials. The process can be used to repair pipes made of PVC, cast iron, clay, and concrete, among others. Additionally, the liner material can be customized to meet specific project requirements.

Conclusion

Cured-in-place pipe lining is an innovative solution for repairing damaged pipes. Its benefits, including cost-effectiveness, minimal disruption, environmental friendliness, durability, and versatility, make it an ideal choice for businesses and homeowners looking to repair using sewer pipe lining technologies.
